Alumina (Al2O3)
Introduction to Alumina (Al₂O₃): A Reliable Ceramic for CNC Machining

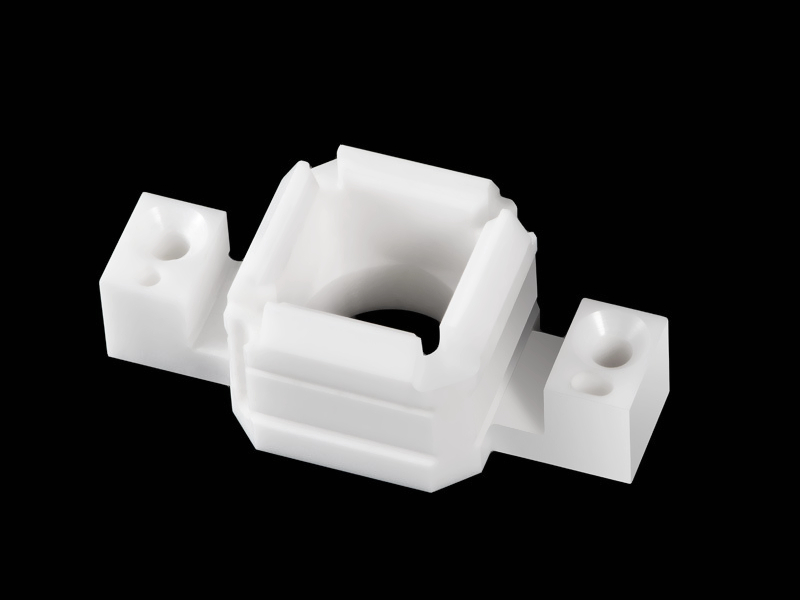

Alumina (Al₂O₃), also known as aluminum oxide, is one of the most widely used ceramic materials due to its excellent combination of mechanical properties, thermal stability, and electrical insulation capabilities. It is especially valued for its high hardness, wear resistance, and ability to perform under extreme conditions. In CNC machining, CNC-machined alumina parts are commonly used in industries such as aerospace, electronics, and medical devices where high-performance materials are essential.
Alumina’s exceptional properties make it suitable for applications requiring high strength, resistance to wear, and resistance to extreme temperatures. It is frequently used for precision components that demand both toughness and thermal management, such as electrical insulators, cutting tools, and bio-compatible implants.
Alumina (Al₂O₃): Key Properties and Composition
Alumina Chemical Composition
Element | Composition (wt%) | Role/Impact |
|---|---|---|
Aluminum (Al) | 52–53% | Provides strength, thermal conductivity, and electrical insulation properties. |
Oxygen (O) | 47–48% | Forms the oxide layer, contributing to its hardness and wear resistance. |
Alumina Physical Properties
Property | Value | Notes |
|---|---|---|
Density | 3.95 g/cm³ | Similar to other high-performance ceramics, providing structural stability. |
Melting Point | 2,072°C | Extremely high melting point, making alumina suitable for high-temperature applications. |
Thermal Conductivity | 30 W/m·K | Good thermal conductor, enabling efficient heat dissipation. |
Electrical Resistivity | 1.0×10⁹ Ω·m | Excellent electrical insulator, used for applications requiring insulation. |
Alumina Mechanical Properties
Property | Value | Testing Standard/Condition |
|---|---|---|
Tensile Strength | 200–250 MPa | Alumina provides excellent strength, even at high temperatures. |
Yield Strength | 200–300 MPa | Ideal for applications requiring high strength-to-weight ratios. |
Elongation (50mm gauge) | 0.05–0.10% | Low elongation, making it less ductile but more durable under mechanical stress. |
Vickers Hardness | 1,400–2,000 HV | Extremely hard, making it resistant to wear and suitable for abrasive environments. |
Machinability Rating | 50% (vs. 1212 steel at 100%) | Moderate machinability, requiring specialized cutting tools and techniques. |
Key Characteristics of Alumina: Benefits and Comparisons
Alumina is an excellent material due to its balance of hardness, thermal stability, and affordability. Below is a technical comparison highlighting its unique advantages over other ceramic materials like Zirconia (ZrO₂), Silicon Nitride (Si₃N₄), and Boron Nitride (BN).
1. High Hardness and Wear Resistance
Unique Trait: Alumina is one of the hardest ceramics, offering excellent resistance to wear, which makes it ideal for abrasive environments.
Comparison:
vs. Zirconia (ZrO₂): While both are hard, zirconia has higher fracture toughness, making it more suitable for dynamic loads.
vs. Silicon Nitride (Si₃N₄): Silicon nitride offers better fracture toughness, but alumina is more cost-effective for wear-resistant applications.
vs. Boron Nitride (BN): Boron nitride is a better thermal conductor but not as wear-resistant as alumina.
2. Thermal Stability
Unique Trait: Alumina performs exceptionally well in high-temperature environments, maintaining its strength and stability at temperatures exceeding 1,700°C.
Comparison:
vs. Zirconia (ZrO₂): Alumina has a lower melting point than zirconia but is more thermally stable under moderate temperature conditions.
vs. Silicon Nitride (Si₃N₄): Silicon nitride excels in thermal shock resistance but is generally more expensive than alumina.
vs. Boron Nitride (BN): Boron nitride is a superior thermal conductor but not as stable at high temperatures as alumina.
3. Electrical Insulation
Unique Trait: Alumina is an excellent electrical insulator, widely used in electronics and electrical components to prevent current flow.
Comparison:
vs. Zirconia (ZrO₂): Zirconia offers some electrical insulation but is not as efficient as alumina in this regard.
vs. Silicon Nitride (Si₃N₄): Silicon nitride is also an electrical insulator but is used more for its mechanical properties rather than electrical ones.
vs. Boron Nitride (BN): Boron nitride is a better thermal conductor but not an electrical insulator like alumina.
4. Machinability
Unique Trait: Alumina is easier to machine than other ceramics, but it still requires specialized equipment due to its hardness.
Comparison:
vs. Zirconia (ZrO₂): Zirconia is more difficult to machine but offers higher toughness, making it better suited for dynamic applications.
vs. Silicon Nitride (Si₃N₄): Silicon nitride requires advanced tools but provides superior fracture toughness and thermal shock resistance.
vs. Boron Nitride (BN): Boron nitride is easier to machine than alumina but lacks its hardness and wear resistance.
CNC Machining Challenges and Solutions for Alumina
Machining Challenges and Solutions
Challenge | Root Cause | Solution |
|---|---|---|
Brittleness | Alumina’s hardness makes it prone to fracture. | Use sharp tools, slower speeds, and increased coolant flow. |
Tool Wear | Hardness accelerates tool wear. | Use advanced tooling materials like diamond-coated tools. |
Surface Finish | Hardness can cause rough finishes. | Polish after machining to achieve smoother surfaces (Ra 0.1–0.4 µm). |
Optimized Machining Strategies
Strategy | Implementation | Benefit |
|---|---|---|
High-Speed Machining | Spindle speed: 2,500–4,000 RPM | Reduces tool wear and improves finish quality. |
Climb Milling | Use for larger or continuous cuts | Achieves smoother surface finishes (Ra 1.6–3.2 µm). |
Coolant Usage | Use specialized coolant | Reduces temperature-induced cracking and helps with tool longevity. |
Post-Processing | Polishing or grinding | Achieves a superior finish for functional and aesthetic parts. |
Cutting Parameters for Alumina
Operation | Tool Type | Spindle Speed (RPM) | Feed Rate (mm/rev) | Depth of Cut (mm) | Notes |
|---|---|---|---|---|---|
Rough Milling | Diamond-coated end mill | 2,500–4,000 | 0.05–0.10 | 1.0–3.0 | Use mist coolant to avoid cracking. |
Finish Milling | Polished carbide end mill | 3,000–5,000 | 0.02–0.05 | 0.1–0.5 | Achieve smooth surfaces (Ra 1.6–3.2 µm). |
Drilling | Diamond-coated drill | 2,500–3,500 | 0.05–0.10 | Full hole depth | Use slow feed rates to avoid cracking. |
Turning | CBN-coated insert | 1,500–2,000 | 0.10–0.20 | 0.5–1.5 | Use high-speed cutting techniques to reduce wear. |
Surface Treatments for CNC Machined Alumina Parts
UV Coating: Adds UV resistance, protecting alumina parts from degradation due to prolonged sunlight exposure. Can provide up to 1,000 hours of UV resistance.
Painting: Provides a smooth aesthetic finish and adds protection against environmental factors with a 20–100 µm thick layer.
Electroplating: Adding a corrosion-resistant metallic layer of 5–25 µm improves strength and extends part life in humid environments.
Anodizing: Provides corrosion resistance and enhances durability, especially useful for applications exposed to harsh environments.
Chrome Plating: Adds a shiny, durable finish that improves corrosion resistance, with a 0.2–1.0 µm coating ideal for automotive parts.
Teflon Coating: Provides non-stick and chemical-resistant properties with a 0.1–0.3 mm coating, ideal for food processing and chemical handling components.
Polishing: Achieves superior surface finishes with Ra 0.1–0.4 µm, enhancing both appearance and performance.
Brushing: Provides a satin or matte finish, achieving Ra 0.8–1.0 µm for masking minor defects and improving the aesthetic appeal of alumina components.
Industry Applications of CNC Machined Alumina Parts
Aerospace
Turbine Blades and Engine Parts: Alumina is used in aerospace for components requiring high-temperature resistance and stress strength.
Medical Devices
Dental Implants: Alumina is biocompatible and has excellent wear resistance, making it ideal for dental implants and prosthetics.
Electronics
Insulators and Connectors: Alumina’s excellent insulating properties make it ideal for use in electronic components like insulators and electrical connectors.
Technical FAQs: CNC Machined Alumina Parts & Services
What makes alumina an excellent choice for high-temperature applications?
How does alumina compare to zirconia in terms of toughness and wear resistance?
What machining methods are ideal for alumina to minimize tool wear?
How does alumina’s wear resistance benefit aerospace applications?
What are the main challenges when machining alumina, and how can they be addressed?
