Introduction to Delrin (Acetal Homopolymer): A High-Performance Material for CNC Machining
Delrin (Acetal Homopolymer) is a high-performance thermoplastic known for its excellent mechanical properties, durability, and ease of machining. It is a popular choice in the world of CNC machining due to its high strength, low friction, and dimensional stability. Delrin is used across various industries, including automotive, aerospace, medical, and industrial applications, where precision, wear resistance, and long-term durability are critical.
When used for CNC-machined Delrin parts, this material offers superior dimensional accuracy, high stiffness, and excellent chemical, moisture, and wear resistance. Its low moisture absorption and high impact resistance make it ideal for parts that are subjected to stress and friction, such as gears, bearings, and fasteners.
Delrin (Acetal Homopolymer): Key Properties and Composition
Delrin Chemical Composition
Element | Composition (wt%) | Role/Impact |
|---|---|---|
Carbon (C) | ~63.4% | Forms the backbone of the polymer, contributing to its strength and rigidity. |
Hydrogen (H) | ~10.3% | Adds flexibility and enhances processability. |
Oxygen (O) | ~26.3% | Contributes to the material’s stability, chemical resistance, and moisture resistance. |
Delrin Physical Properties
Property | Value | Notes |
|---|---|---|
Density | 1.41 g/cm³ | Relatively dense, providing strength and durability for high-stress parts. |
Melting Point | 175°C | Suitable for applications that require moderate to high-temperature performance. |
Thermal Conductivity | 0.31 W/m·K | Moderate thermal conductivity, suitable for thermal management in various applications. |
Electrical Resistivity | 10¹⁶–10¹⁸ Ω·m | Excellent electrical insulator, ideal for electrical components. |
Delrin Mechanical Properties
Property | Value | Testing Standard/Condition |
|---|---|---|
Tensile Strength | 70–85 MPa | Provides outstanding strength for high-load applications. |
Yield Strength | 65–80 MPa | Ideal for parts under moderate to high loads. |
Elongation (50mm gauge) | 20–30% | Offers good elongation and impact resistance. |
Brinell Hardness | 120–130 HB | High hardness for superior wear resistance. |
Machinability Rating | 90% (vs. 1212 steel at 100%) | Excellent machinability, allowing for tight tolerances and smooth finishes. |
Key Characteristics of Delrin: Benefits and Comparisons
Delrin offers a unique combination of strength, low friction, and wear resistance. Below is a technical comparison highlighting its advantages over materials like Nylon (PA) and Polyethylene (PE).
1. High Strength and Stiffness
Unique Trait: Delrin is one of the strongest and stiffest engineering plastics, making it ideal for load-bearing applications.
Comparison:
vs. Nylon (PA): Nylon is more flexible than Delrin but offers less strength and stiffness, making Delrin ideal for parts that need to withstand high loads and stress.
vs. Polyethylene (PE): Delrin outperforms Polyethylene in both strength and stiffness, making it better for high-performance parts such as gears and bearings.
2. Low Friction and Wear Resistance
Unique Trait: Delrin’s low coefficient of friction makes it ideal for parts exposed to wear and sliding motion, such as gears and bushings.
Comparison:
vs. Nylon (PA): Delrin has a lower coefficient of friction and is less prone to absorbing moisture, which allows it to perform better in dry environments and with less lubrication.
vs. Polyethylene (PE): Polyethylene offers lower friction but is not as stiff as Delrin and has lower mechanical strength, making Delrin the preferred choice for parts that need durability and wear resistance.
3. Excellent Dimensional Stability
Unique Trait: Delrin is known for its excellent dimensional stability, even in humid or chemically aggressive environments.
Comparison:
vs. Nylon (PA): Nylon tends to absorb moisture, affecting its dimensional stability. Delrin remains stable in moist environments, making it a better choice for precision applications.
vs. Polyethylene (PE): While Polyethylene performs well in low-stress applications, Delrin provides better stability and resistance to deformation under stress.
4. Chemical Resistance
Unique Trait: Delrin offers excellent resistance to many chemicals, including fuels, solvents, and oils, making it ideal for harsh environments.
Comparison:
vs. Nylon (PA): Nylon can degrade when exposed to certain chemicals and moisture, while Delrin remains stable, even in the presence of many corrosive substances.
vs. Polyethylene (PE): Delrin provides superior chemical resistance compared to Polyethylene, especially in environments involving high-stress or high-temperature exposure.
5. High Temperature Performance
Unique Trait: Delrin performs well in moderately high temperatures, with a working temperature range up to 120°C.
Comparison:
vs. Nylon (PA): Nylon has good temperature resistance but Delrin performs better in higher-temperature applications, particularly where stiffness and wear resistance are required.
vs. Polyethylene (PE): Polyethylene’s melting point is much lower than Delrin’s, making it unsuitable for high-temperature applications compared to Delrin.
CNC Machining Challenges and Solutions for Delrin
Machining Challenges and Solutions
Challenge | Root Cause | Solution |
|---|---|---|
Tool Wear | Delrin’s toughness can cause tool wear | Use carbide-coated tools to extend tool life and reduce wear. |
Surface Finish | Delrin’s stiffness can result in rough surfaces | Use fine cutting tools and adjust feed rates for smoother finishes. |
Dimensional Stability | Thermal expansion during machining | Control cutting speeds and use coolant to minimize temperature fluctuations. |
Optimized Machining Strategies
Strategy | Implementation | Benefit |
|---|---|---|
High-Speed Machining | Spindle speed: 2,500–4,000 RPM | Provides smoother finishes and reduces tool wear. |
Coolant Usage | Use water-based or mist coolant | Helps prevent overheating and material distortion. |
Post-Processing | Sanding or polishing | Achieves high-quality surface finishes with Ra 1.6–3.2 µm. |
Cutting Parameters for Delrin
Operation | Tool Type | Spindle Speed (RPM) | Feed Rate (mm/rev) | Depth of Cut (mm) | Notes |
|---|---|---|---|---|---|
Rough Milling | 2-flute carbide end mill | 2,500–3,500 | 0.20–0.30 | 2.0–4.0 | Use mist coolant to avoid excessive heat buildup. |
Finish Milling | 2-flute carbide end mill | 3,500–4,500 | 0.05–0.10 | 0.5–1.0 | Climb milling for smoother finishes (Ra 1.6–3.2 µm). |
Drilling | Split-point HSS drill | 2,500–3,000 | 0.10–0.15 | Full hole depth | Use sharp drills and mist coolant. |
Turning | Coated carbide insert | 3,000–4,000 | 0.15–0.25 | 1.5–3.0 | Air cooling is recommended to avoid material softening. |
Surface Treatments for CNC Machined Delrin Parts
UV Coating: Adds UV resistance to prevent degradation from prolonged exposure to sunlight.
Painting: Provides an aesthetic finish and protects against chemicals and abrasion.
Electroplating: Adds a corrosion-resistant metallic layer for parts exposed to harsh conditions.
Anodizing: Enhances wear resistance and durability by forming a hard oxide layer.
Chrome Plating: Adds a shiny, durable finish ideal for aesthetic and functional parts.
Teflon Coating: Provides a non-stick, low-friction surface for sliding or wear-prone parts.
Polishing: Achieves a smooth, glossy finish for parts that require a high-quality appearance.
Brushing: Creates a satin or matte finish to mask surface imperfections and improve the part’s appearance.
Industry Applications of CNC Machined Delrin Parts
Automotive Industry

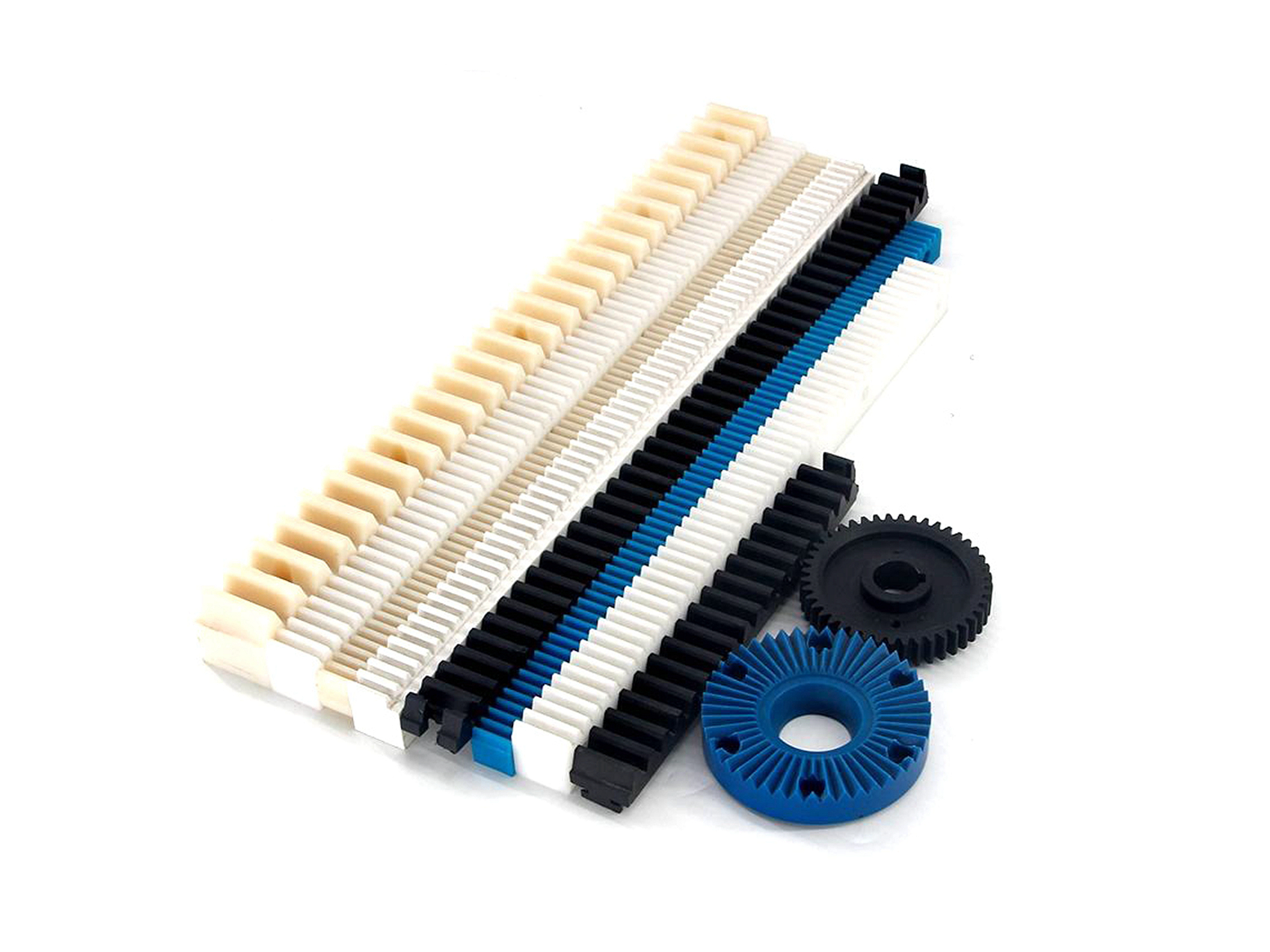

Gears and Bearings: Delrin is commonly used for precision gears and bearings that require high strength and low friction.
Aerospace Industry
Structural Components: Delrin is used in aerospace applications for lightweight, durable parts like bushings and fasteners.
Medical Devices
Surgical Instruments: Delrin is used to produce medical components where precision and wear resistance are essential.
Technical FAQs: CNC Machined Delrin Parts & Services
How does Delrin compare to other plastics regarding wear resistance and strength?
What CNC machining strategies help avoid issues with surface finish when machining Delrin?
Can Delrin be used for applications in high-temperature environments, and how does it compare to other materials?
How does Delrin’s moisture resistance affect its performance in high-humidity environments?
What are the best surface treatments to enhance Delrin's performance in high-friction applications?
