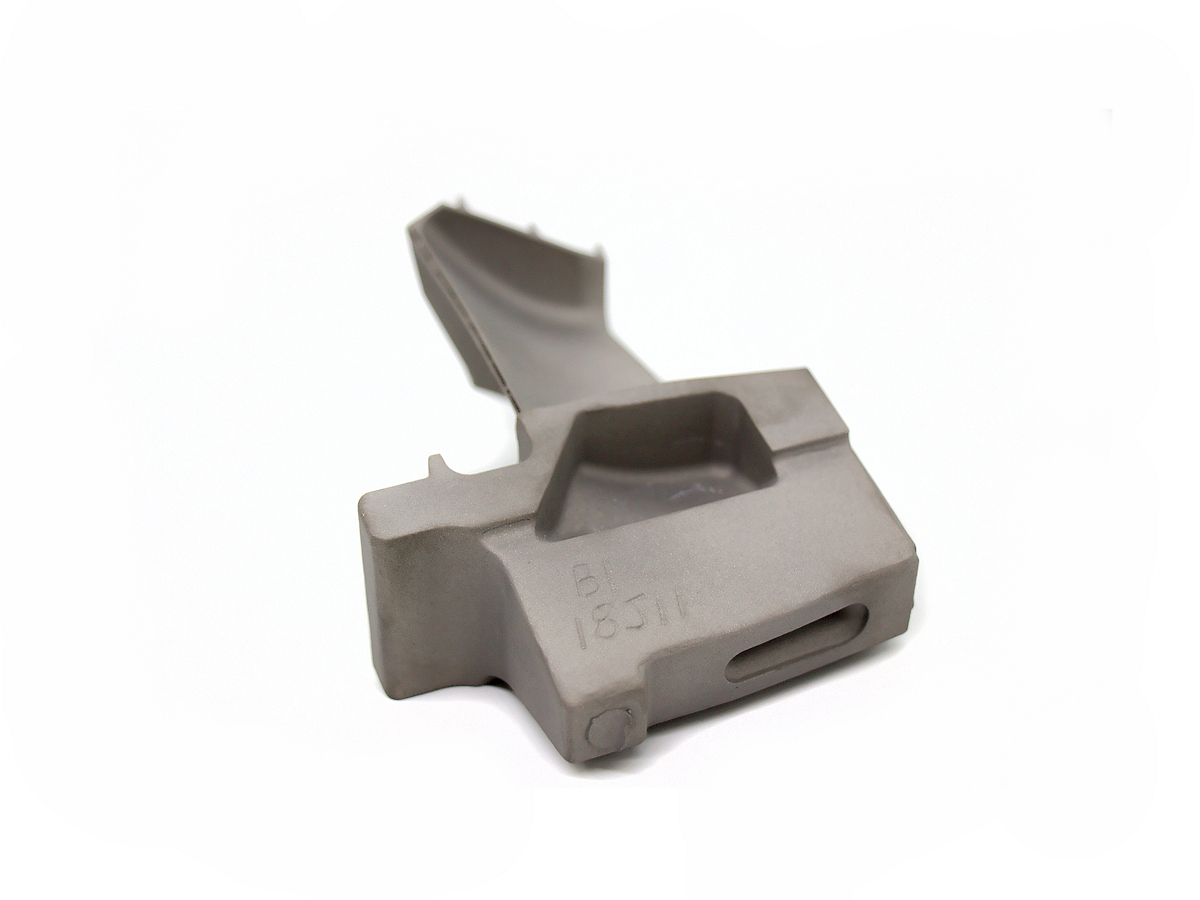

Case Study: Enhancing Aerospace Performance with CNC Machined Inconel and Hastelloy Parts
Introduction
The aerospace industry requires materials that endure extreme temperatures, severe mechanical stresses, and harsh operating conditions. Superalloys such as Inconel 718, Inconel 625, Hastelloy C-276, and Hastelloy X offer exceptional heat resistance, mechanical strength, and corrosion resistance, making them ideal for turbine blades, exhaust systems, combustion chambers, and critical structural components.
Advanced CNC machining technology significantly elevates the manufacturing precision and reliability of aerospace components made from Inconel and Hastelloy alloys. Precision CNC machining ensures complex geometries, precise dimensional accuracy, and excellent surface integrity, dramatically enhancing aerospace systems' overall performance, safety, and reliability.
Aerospace-Grade Superalloy Materials
Material Performance Comparison
Material | Tensile Strength (MPa) | Yield Strength (MPa) | Max Operating Temp (°C) | Typical Applications | Advantage |
|---|---|---|---|---|---|
1240-1450 | 1034-1207 | 700 | Turbine blades, rotor discs | Exceptional fatigue resistance, high strength | |
827-1103 | 414-758 | 982 | Exhaust systems, engine components | Excellent corrosion resistance, good weldability | |
750-900 | 350-450 | 1038 | Heat exchangers, fuel nozzles | Outstanding corrosion resistance, high-temperature stability | |
755-965 | 385-690 | 1204 | Combustion chambers, afterburner parts | Superior oxidation resistance, excellent strength at high temperatures |
Material Selection Strategy
Selecting Inconel and Hastelloy alloys for aerospace applications involves careful evaluation based on operating temperatures, mechanical demands, and corrosion resistance:
High-stress turbine components, rotor discs, and structural aerospace parts requiring superior mechanical strength (up to 1450 MPa tensile strength) and fatigue resistance at temperatures up to 700°C use Inconel 718.
Aerospace exhaust systems, turbine casings, and engine components exposed to corrosive exhaust gases at high temperatures (up to 982°C) benefit from Inconel 625 for its superior corrosion protection and excellent weldability.
Fuel nozzles, heat exchangers, and other parts that must withstand extreme corrosion and high-temperature stability (up to 1038°C) rely on Hastelloy C-276, ensuring maximum durability and operational reliability.
Combustion chambers, afterburner components, and critical high-temperature parts requiring exceptional oxidation resistance and strength at elevated temperatures (up to 1204°C) leverage Hastelloy X for optimal performance.
CNC Machining Processes
Process Performance Comparison
CNC Machining Technology | Dimensional Accuracy (mm) | Surface Roughness (Ra μm) | Typical Applications | Key Advantages |
|---|---|---|---|---|
±0.02 | 1.6-3.2 | Basic structural brackets, fittings | Cost-effective, reliable accuracy | |
±0.015 | 0.8-1.6 | Rotational parts, turbine supports | Enhanced precision, fewer machining setups | |
±0.005 | 0.4-0.8 | Complex turbine blades, precision parts | Superior accuracy, excellent surface finish | |
±0.003-0.01 | 0.2-0.6 | Micro-components, critical engine parts | Maximum precision, intricate geometries |
Process Selection Strategy
The selection of CNC machining processes for aerospace superalloy components depends on precision, complexity, and operational requirements:
Simple structural brackets and fittings requiring moderate accuracy (±0.02 mm) utilize 3 Axis CNC Milling for cost-effective, reliable manufacturing.
Rotational turbine supports, and moderately complex aerospace components requiring improved dimensional accuracy (±0.015 mm) benefit significantly from 4 Axis CNC Milling, optimizing production efficiency.
Turbine blades, compressor parts, and intricate components demanding tight tolerances (±0.005 mm) and superior surface finishes (Ra ≤0.8 μm) employ 5 Axis CNC Milling, dramatically enhancing component performance and reliability.
Precision-critical aerospace components and micro-engine parts needing the tightest dimensional accuracy (±0.003 mm) and complex geometries rely on Precision Multi-Axis CNC Machining for exceptional reliability and safety.
Surface Treatment
Surface Treatment Performance
Treatment Method | Corrosion Resistance | Wear Resistance | Max Operating Temp (°C) | Typical Applications | Key Features |
|---|---|---|---|---|---|
Exceptional (>1000 hrs ASTM B117) | High (HV1000-1200) | Up to 1150 | Turbine blades, combustion components | Excellent thermal insulation, longer component life | |
Excellent (~900 hrs ASTM B117) | Moderate | Up to 300 | Precision valves, fittings | Ultra-smooth surface, enhanced corrosion resistance | |
Outstanding (>1000 hrs ASTM B117) | Very High (HV1500-2500) | Up to 600 | High-wear aerospace components | Superior hardness, friction reduction | |
Excellent (≥1000 hrs ASTM B117) | Moderate | Up to 400 | Structural brackets, fasteners | Improved corrosion resistance, surface cleanliness |
Surface Treatment Selection
Selecting surface treatments for aerospace superalloy parts requires precise alignment with component functionality and environmental demands:
For high-temperature turbine blades and combustion components demanding thermal stability (up to 1150°C) and exceptional corrosion resistance, choose Thermal Barrier Coating (TBC) for enhanced durability.
Precision aerospace valves and fittings needing ultra-smooth surfaces (Ra ≤0.4 μm) and improved corrosion resistance benefit significantly from Electropolishing.
Aerospace components exposed to high wear, friction, and mechanical stress requiring extreme hardness (HV1500-2500) utilize PVD Coating for prolonged operational reliability.
Structural brackets, fasteners, and non-wear-critical parts requiring enhanced corrosion resistance (≥1000 hrs ASTM B117) select Passivation for long-term component integrity.
Quality Control
Quality Control Procedures
Rigorous dimensional inspection using Coordinate Measuring Machines (CMM) and optical comparators.
Surface roughness verification with advanced profilometers.
Mechanical testing (tensile, yield, and fatigue) per ASTM standards.
Corrosion resistance validation through ASTM B117 Salt Spray Testing.
Non-destructive testing (NDT), including ultrasonic and radiographic methods.
Comprehensive documentation aligned with AS9100, ISO 9001, and FAA aerospace manufacturing standards.
Industry Applications
Aerospace Superalloy Component Applications
High-performance turbine blades and compressor components.
Heat exchangers and combustion chamber parts.
Exhaust systems and high-temperature engine casings.
Precision-engineered rotor discs and critical fasteners.
