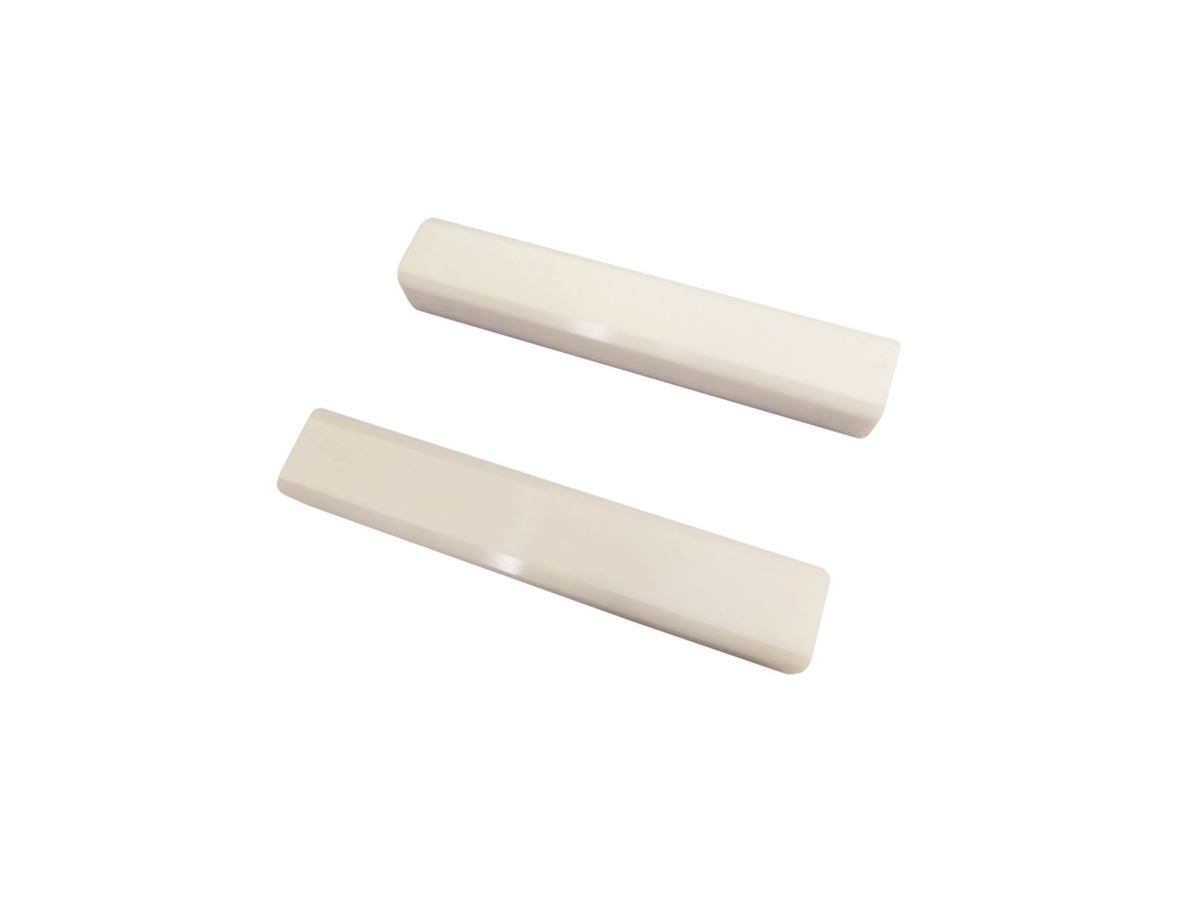

Ceramic Components Low-Volume CNC Machining for High-Precision Parts
Introduction
Ceramic components low-volume CNC machining offers an efficient and precise method for producing high-precision parts used in demanding applications across various industries. Ceramics such as Zirconia (ZrO₂), Alumina (Al₂O₃), and Silicon Nitride (Si₃N₄) are known for their superior hardness, high thermal stability, and excellent wear resistance, making them ideal for applications requiring extreme durability. Industries such as aerospace, medical devices, electronics, and automotive increasingly rely on low-volume CNC machining of ceramic materials to create components with intricate geometries and high performance. Through Ceramic CNC Machining, manufacturers can produce small batches of high-quality ceramic parts with accuracy as fine as ±0.003 mm.
Low-volume CNC machining allows for quick prototyping and efficient iteration of ceramic components. It is ideal for industries that require rapid product development and validation of critical, high-performance parts before scaling to mass production.
Ceramic Material Properties
Material Performance Comparison Table
Ceramic Type | Hardness (HV) | Flexural Strength (MPa) | Thermal Resistance (°C) | Density (g/cm³) | Applications | Advantages |
|---|---|---|---|---|---|---|
1200–1350 | 900–1200 | Up to 1000 | 6.0 | Medical implants, structural components | High fracture toughness, superior wear resistance | |
1500–1800 | 300–600 | Up to 1750 | 3.9 | Semiconductor components, electrical insulators | Excellent electrical insulation, high wear resistance | |
1600–1800 | 700–1000 | Up to 1200 | 3.2 | Aerospace bearings, turbine components | High thermal shock resistance, high strength | |
2200–2800 | 350–600 | Up to 1650 | 3.2 | Semiconductor substrates, armor plating | Exceptional hardness, excellent thermal conductivity |
Selecting the Right Ceramic Material
Selecting the correct ceramic material for CNC machining depends on factors such as mechanical strength, thermal stability, and application requirements:
Zirconia (ZrO₂): Ideal for high-strength applications in medical and structural components due to its exceptional fracture toughness and resistance to wear.
Alumina (Al₂O₃): Preferred for electrical insulators, semiconductor parts, and applications requiring high hardness (up to 1800 HV) and wear resistance.
Silicon Nitride (Si₃N₄): Best suited for aerospace, automotive, and industrial applications, where superior thermal shock resistance and mechanical strength are required.
Silicon Carbide (SiC): Used in high-temperature environments and applications requiring excellent hardness and thermal conductivity, such as semiconductor components and armor plating.
CNC Machining Processes for Ceramic Components
CNC Process Comparison Table
CNC Machining Process | Accuracy (mm) | Surface Finish (Ra µm) | Typical Uses | Advantages |
|---|---|---|---|---|
±0.005 | 0.4–1.2 | Complex aerospace parts, precision medical components | High precision, complex geometry capability | |
±0.005 | 0.4–1.0 | Rotationally symmetrical ceramic parts | Consistent, high accuracy | |
±0.002 | ≤0.2 | High-precision seals, bearings, valve components | Superior surface finish, extremely tight tolerance | |
±0.003 | 0.2–0.8 | Aerospace components, intricate parts | Superior accuracy, intricate geometry |
CNC Process Selection Strategy
Choosing the right CNC machining process for ceramic parts requires considering the complexity of the part, desired surface finish, and dimensional accuracy:
CNC Milling: Best suited for machining complex and detailed ceramic components, allowing for highly intricate designs and high accuracy (±0.005 mm).
CNC Turning: Ideal for producing cylindrical ceramic components, providing consistent accuracy and surface finishes as fine as Ra 0.4 µm.
CNC Grinding: Essential for obtaining ultra-smooth surfaces (Ra ≤0.2 µm) and precise dimensional tolerances (±0.002 mm), ideal for seals, bearings, and other high-precision components.
Multi-Axis Machining: Used for machining highly complex shapes and intricate geometries, offering exceptional precision (±0.003 mm) for advanced ceramic applications.
Surface Treatments for Ceramic Components
Surface Treatment Comparison Table
Treatment Method | Surface Roughness (Ra µm) | Wear Resistance | Max Temp (°C) | Applications | Key Features |
|---|---|---|---|---|---|
≤0.2 | Excellent | 1200 | Precision optics, medical implants | Ultra-smooth finish, enhanced durability | |
≤0.8 | Superior | 450–600 | Cutting tools, wear components | Increased hardness, extended component life | |
≤1.0 | Excellent | 1300 | Aerospace engine parts, turbine blades | Enhanced thermal protection, oxidation resistance | |
≤1.5 | Excellent | 1000 | Aerospace landing gears, structural components | Improves fatigue resistance and strength |
Surface Treatment Selection Strategy
Surface treatments are essential for improving the mechanical properties and performance of ceramic components:
Polishing: Achieves an ultra-smooth surface (Ra ≤0.2 µm), enhancing wear resistance and reducing friction, ideal for medical and precision optical components.
PVD Coatings: Ideal for extending the lifespan of ceramic parts exposed to harsh conditions, enhancing hardness and wear resistance, especially in cutting tools and wear components.
Thermal Barrier Coatings: Recommended for protecting ceramic components from extreme temperatures (up to 1300°C), commonly used in aerospace engine parts and turbine blades.
Shot Peening: Best for enhancing fatigue strength and resistance, used extensively on aerospace landing gears and structural components to improve performance under stress.
Typical Ceramic Rapid Prototyping Methods
Effective prototyping methods for ceramic components include:
CNC Machining Prototyping: Offers high precision, low-volume production of functional ceramic prototypes.
Ceramic 3D Printing: Best suited for creating complex, intricate ceramic parts with rapid turnaround.
Rapid Molding Prototyping: Provides an efficient solution for prototyping moderate complexity ceramic parts before full-scale production.
Quality Assurance Procedures
Dimensional Inspection: ±0.002 mm accuracy (ISO 10360-2).
Material Verification: ASTM C1161 standards.
Surface Finish Assessment: ISO 4287.
Thermal Testing: ASTM C1525.
Visual Inspection: ISO 2768 standards.
ISO 9001 Quality Management compliance.
Key Applications
Aerospace: Turbine blades, engine components, heat exchangers.
Medical Device: Implants, surgical instruments, dental components.
Semiconductor: Insulating components, substrates, precision tooling.
Electronics: Capacitors, insulators, microelectronics.
