CNC Machining in Medical Devices: Why Aluminum 5052 is the Material of Choice

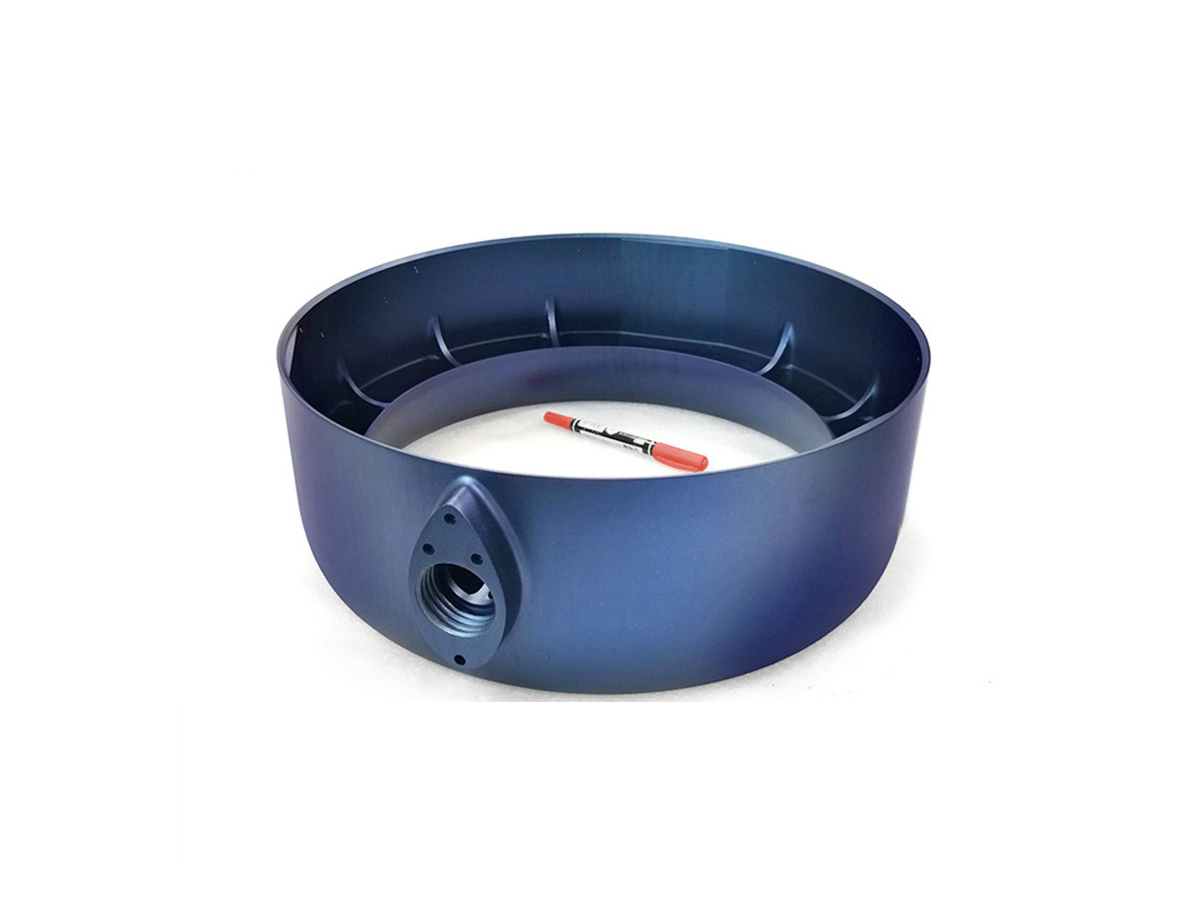

Introduction
The medical device industry places stringent demands on materials, prioritizing biocompatibility, corrosion resistance, lightweight design, and precision manufacturing. Aluminum 5052 is a premier choice for medical devices such as surgical instruments, diagnostic equipment housings, prosthetic components, and medical enclosures.
Advanced CNC machining capabilities precisely shape aluminum 5052, ensuring superior dimensional accuracy, intricate detailing, and outstanding surface finishes. CNC-machined aluminum 5052 components enhance device performance, patient safety, and durability while significantly reducing device weight and production costs.
Aluminum 5052 for Medical Device Applications
Material Performance Comparison
Material | Tensile Strength (MPa) | Yield Strength (MPa) | Corrosion Resistance | Typical Applications | Advantage |
|---|---|---|---|---|---|
210-260 | 130-180 | Excellent (≥1000 hrs ASTM B117) | Surgical trays, instrument housings, prosthetic parts | High corrosion resistance, excellent formability | |
310 | 275 | Good (≥800 hrs ASTM B117) | Structural components, braces, orthopedic hardware | High strength-to-weight ratio | |
572 | 503 | Moderate (≥500 hrs ASTM B117) | High-stress orthopedic implants | Superior strength, good fatigue resistance | |
515-620 | 205-310 | Excellent (≥1000 hrs ASTM B117) | Surgical tools, implants | Outstanding biocompatibility, high corrosion resistance |
Material Selection Strategy
Selecting aluminum 5052 for medical device applications prioritizes formability, corrosion resistance, biocompatibility, and lightweight characteristics:
Surgical trays, medical housings, and non-load-bearing components benefit from Aluminum 5052’s superior corrosion resistance, excellent formability, and ease of sterilization.
Structural medical components and orthopedic hardware that require high strength typically use Aluminum 6061-T6, providing optimal strength-to-weight balance.
Critical orthopedic implants and high-stress components choose Aluminum 7075, leveraging its higher mechanical strength and fatigue resistance.
Surgical instruments and implantable medical devices requiring long-term biocompatibility and excellent corrosion resistance utilize Stainless Steel SUS316, ensuring maximum patient safety.
CNC Machining Processes
Process Performance Comparison
CNC Machining Technology | Dimensional Accuracy (mm) | Surface Roughness (Ra μm) | Typical Applications | Key Advantages |
|---|---|---|---|---|
±0.02 | 1.6-3.2 | Medical trays, basic equipment casings | Economical, efficient production | |
±0.015 | 0.8-1.6 | Orthopedic fixtures, complex enclosures | Enhanced precision, fewer setups | |
±0.005 | 0.4-0.8 | Intricate surgical components, prosthetic joints | Exceptional accuracy, superior surface quality | |
±0.003-0.01 | 0.2-0.6 | Precision micro-devices, diagnostic instruments | Maximum precision, intricate geometry |
Process Selection Strategy
Process selection for medical device aluminum components depends on accuracy requirements, complexity, and criticality:
Simple medical trays and basic housings utilize 3 Axis CNC Milling for economical production and reliable dimensional stability.
More complex orthopedic fixtures and ergonomic device casings benefit from 4 Axis CNC Milling, offering improved accuracy and fewer machining setups.
High-precision surgical components, prosthetics, and implants requiring stringent tolerances (±0.005 mm) utilize 5 Axis CNC Milling, delivering optimal fit, finish, and function.
Precision micro-medical components and complex diagnostic instruments requiring ultra-tight tolerances (±0.003 mm) leverage Multi-Axis CNC Machining, ensuring peak device performance and reliability.
Surface Treatment
Surface Treatment Performance
Treatment Method | Corrosion Resistance | Wear Resistance | Biocompatibility | Typical Applications | Key Features |
|---|---|---|---|---|---|
Excellent (≥1000 hrs ASTM B117) | Moderate-High | Excellent | Surgical instruments, device housings | Corrosion protection, enhanced durability | |
Excellent (≥1000 hrs ASTM B117) | Moderate | Excellent | Medical trays, sterilization equipment | Surface purity, corrosion resistance | |
Superior (≥1200 hrs ASTM B117) | High | Good | Diagnostic equipment, external device enclosures | Durable finish, aesthetic appeal | |
Excellent (≥1000 hrs ASTM B117) | High | Excellent | Surgical instruments, implant surfaces | Ultra-smooth finish, improved sterility |
Surface Treatment Selection
Selecting surface treatments for aluminum 5052 medical components involves balancing corrosion protection, durability, and biocompatibility:
Surgical instruments and device housings benefit from Anodizing, which provides strong corrosion protection and enhanced durability.
Medical trays and sterilization equipment requiring purity and enhanced corrosion resistance utilize Passivation to ensure long-term sterility.
External diagnostic equipment and visible medical enclosures select Powder Coating, balancing aesthetic requirements with durable surface protection.
Surgical instruments and implants needing ultra-smooth finishes and superior biocompatibility rely on Electropolishing for enhanced cleanliness and minimized contamination risks.
Quality Control
Quality Control Procedures
Precision dimensional inspections using Coordinate Measuring Machines (CMM) and optical methods.
Surface roughness and texture evaluation through profilometer measurements.
Mechanical testing (tensile, yield, fatigue) in accordance with ASTM standards.
Corrosion resistance assessments through ASTM B117 (Salt Spray Test).
Biocompatibility tests conforming to ISO 10993 standards.
Comprehensive documentation following ISO 13485, FDA regulations, and industry-specific medical device quality protocols.
Industry Applications
Medical Device Component Applications
Surgical instrument housings and trays.
Orthopedic and prosthetic device components.
Medical equipment enclosures and diagnostic housings.
Lightweight supports and mounting hardware.
