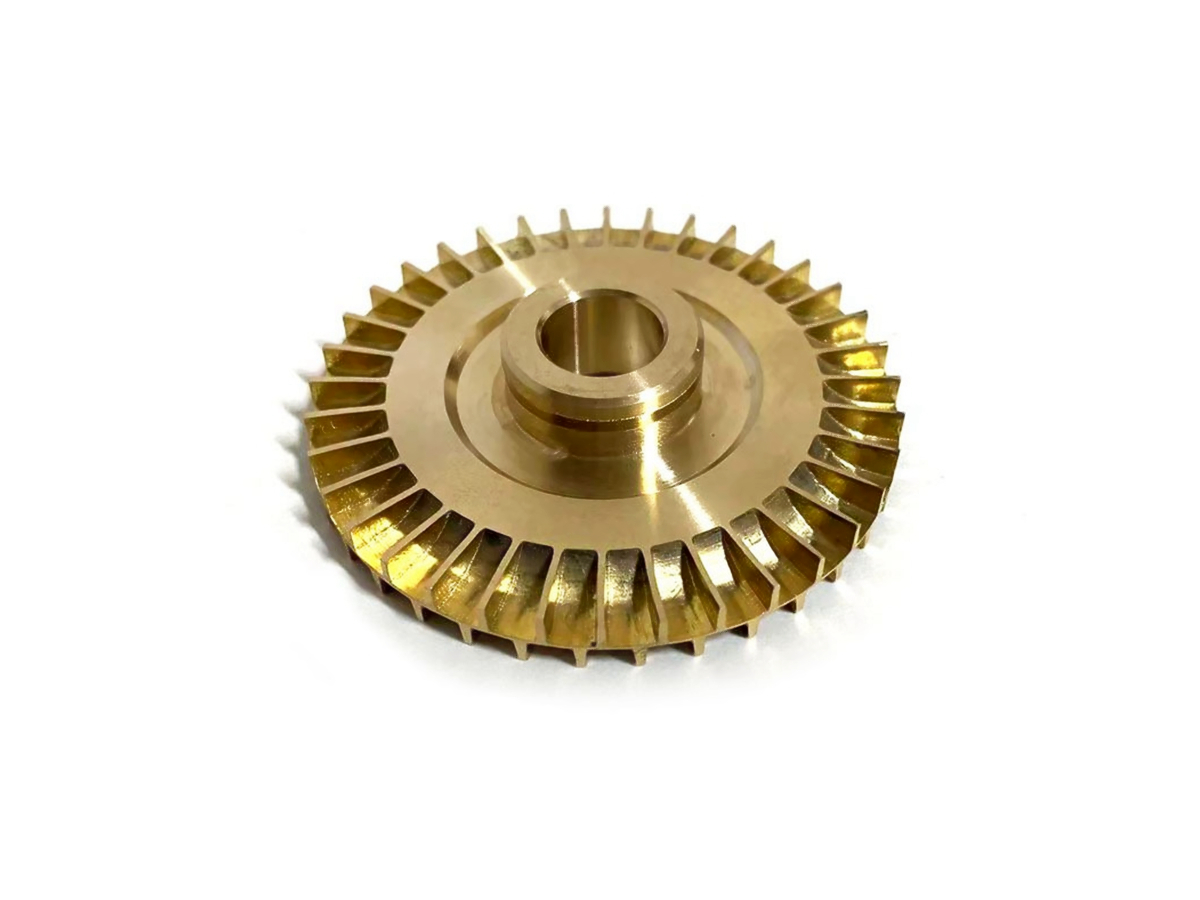

CNC Machining of C86300 Manganese Bronze for Robust Industrial Components
Introduction
In the demanding environments of the industrial equipment, automation, and heavy machinery sectors, components must endure extreme stress, heavy loads, and harsh operating conditions. C86300 Manganese Bronze is a standout material choice for robust industrial parts, including heavy-duty bearings, bushings, gears, valve components, and wear plates, due to its impressive tensile strength, excellent wear resistance, and superior durability.
Advanced CNC machining ensures precision fabrication of C86300 Manganese Bronze, achieving strict dimensional tolerances and complex geometries. This meticulous process delivers components with enhanced reliability and performance in heavy-duty industrial applications.
C86300 Manganese Bronze for Industrial Component Applications
Material Performance Comparison
Material | Tensile Strength (MPa) | Yield Strength (MPa) | Wear Resistance | Typical Applications | Advantage |
|---|---|---|---|---|---|
760-895 | 415-550 | Exceptional | Industrial bearings, gears, heavy-duty bushings | High strength, outstanding wear resistance | |
515-655 | 205-310 | Excellent | Valve components, heavy load bearings | Superior corrosion resistance, high strength | |
345-400 | 140-200 | Good | Connectors, fittings | Exceptional machinability, moderate durability | |
1310-1480 | 965-1105 | Superior | Precision springs, high-strength industrial parts | Exceptional strength and fatigue resistance |
Material Selection Strategy
Choosing C86300 Manganese Bronze for industrial components involves evaluating tensile strength, wear resistance, and machinability requirements:
Heavy-duty bearings, gears, and industrial bushings significantly benefit from the high tensile strength, superior wear resistance, and durability of C86300 Manganese Bronze, especially under heavy load conditions.
Valve components and bearings exposed to corrosive or high-stress environments often select C95400 Aluminum Bronze for its excellent corrosion resistance and substantial mechanical strength.
General connectors, fittings, and non-critical components prioritize the excellent machinability and good mechanical properties of Brass C360.
Precision springs and industrial parts demanding exceptional strength and high fatigue resistance typically utilize Copper C172 Beryllium Copper.
CNC Machining Processes
Process Performance Comparison
CNC Machining Process | Dimensional Accuracy (mm) | Surface Roughness (Ra μm) | Typical Applications | Key Advantages |
|---|---|---|---|---|
±0.005-0.02 | 0.4-3.2 | Industrial gears, valve housings, wear plates | Versatile machining, high precision, complex features | |
±0.005-0.01 | 0.4-1.6 | Bushings, bearings, cylindrical gears | Exceptional rotational accuracy, smooth finishes | |
±0.01-0.02 | 1.6-3.2 | Heavy-duty fittings, precise hole placements | Accurate hole positioning and depth control | |
±0.003-0.01 | 0.2-0.6 | Complex industrial components, precision hardware | Highest precision, intricate geometries |
Process Selection Strategy
Selecting optimal CNC machining methods for C86300 Manganese Bronze industrial components depends on complexity, dimensional accuracy, and application-specific requirements:
Industrial gears, valve housings, wear plates, and complex components benefit from CNC Milling Service, delivering precise dimensions and intricate features.
Precision bushings, heavy-duty bearings, and cylindrical gears require CNC Turning Service for rotational precision, tight tolerances, and superior surface quality.
Heavy-duty fittings and components demanding precise hole positioning and controlled depths efficiently utilize CNC Drilling Service for accuracy and repeatability.
Components with intricate geometries, such as complex industrial parts or precision hardware, necessitate Multi-Axis CNC Machining Service for unmatched accuracy and detailed complexity.
Surface Treatment
Surface Treatment Performance
Treatment Method | Corrosion Resistance | Wear Resistance | Industrial Suitability | Typical Applications | Key Features |
|---|---|---|---|---|---|
Outstanding (>1500 hrs ASTM B117) | Very High (HV500-700) | Excellent | Gears, bushings, wear surfaces | Enhanced durability, superior corrosion protection | |
Excellent (≥1000 hrs ASTM B117) | Moderate | Excellent | Valve housings, precision fittings | Improved corrosion protection and cleanliness | |
Superior (>1000 hrs ASTM B117) | Very High (HV1500-2500) | Excellent | High-wear gears, industrial components | High hardness, friction reduction | |
Excellent (≥1000 hrs ASTM B117) | High | Excellent | Precision components, bearings | Ultra-smooth surfaces, reduced contamination |
Surface Treatment Selection
Choosing suitable surface treatments for C86300 Manganese Bronze industrial components involves evaluating corrosion resistance, wear resistance, and operational demands:
Gears, bushings, and wear-intensive surfaces require Electroplating for enhanced hardness, corrosion protection, and extended durability.
Valve housings, precision fittings, and parts exposed to corrosive environments benefit from Passivation for improved corrosion resistance and cleanliness.
Industrial components subjected to extreme wear conditions, such as high-load gears, prefer PVD Coating for its superior hardness and friction reduction capabilities.
Precision bearings and delicate components demanding exceptional smoothness and corrosion resistance typically opt for Electropolishing to ensure optimal performance.
Quality Control
Quality Control Procedures
Comprehensive dimensional inspections with Coordinate Measuring Machines (CMM) and optical comparators.
Surface roughness analysis using precision profilometers.
Mechanical property assessments (tensile, yield, fatigue) conducted according to ASTM standards.
Wear resistance and corrosion resistance testing validated through ASTM B117 salt spray tests.
Non-destructive testing (NDT) includes ultrasonic, radiographic, and magnetic particle inspections.
Detailed documentation in compliance with ISO 9001 and industry-specific quality standards.
Industry Applications
Industrial Component Applications
Heavy-duty bearings and bushings.
Industrial gears and wear plates.
Valve bodies and fittings for high-load systems.
Components for machinery and automation equipment.
