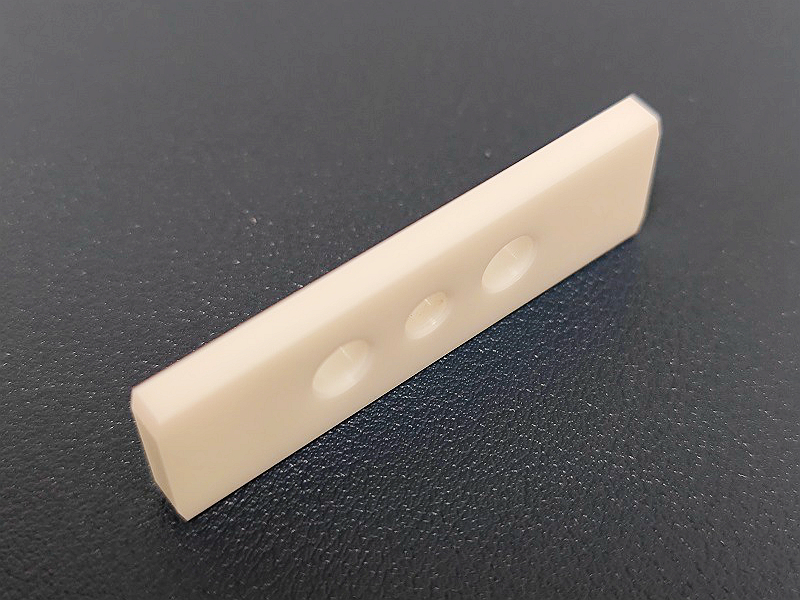

CNC Machining of Silicon Carbide (SiC): Ideal for Extreme Hardness and Abrasive Parts
Introduction
Silicon carbide (SiC) is one of the hardest known materials, widely used for manufacturing high-performance components in industries requiring extreme wear resistance and thermal stability. CNC machining of silicon carbide enables the creation of precision parts with tight tolerances (±0.01 mm) and high-quality surface finishes (Ra ≤0.5 µm), making it ideal for use in abrasive environments. SiC is commonly utilized in industries such as aerospace, automotive, and industrial equipment, where components must withstand high-stress, high-temperature, and abrasive conditions.
By utilizing advanced CNC machining services, manufacturers can produce SiC parts that offer exceptional hardness, thermal conductivity, and chemical resistance, making them perfect for applications such as grinding tools, mechanical seals, and wear-resistant parts.
Silicon Carbide Material Properties
Material Performance Comparison Table
Material | Hardness (HV) | Density (g/cm³) | Fracture Toughness (MPa√m) | Thermal Conductivity (W/m·K) | Electrical Resistivity (Ω·cm) | Typical Applications | Advantages |
|---|---|---|---|---|---|---|---|
2500-2800 HV | 3.20 | 3.5-4.5 MPa√m | 120-150 | 10¹²-10¹⁴ | Mechanical seals, grinding tools, abrasive components | Extreme hardness, excellent thermal conductivity, high wear resistance | |
1700-2100 HV | 3.90 | 4-5 MPa√m | 25-35 | 10⁹-10¹⁶ | Bearings, insulators, pump seals | High hardness, electrical insulation, good wear resistance | |
1200-1400 HV | 6.05 | 5-10 MPa√m | 2.5-3.0 | Insulating | Biomedical implants, turbine blades, structural ceramics | High fracture toughness, strength, chemical stability | |
1800-2200 HV | 3.26 | 3.0-3.5 MPa√m | 170-200 | 10¹⁴-10¹⁶ | Semiconductor substrates, heat sinks, electronics packaging | Superior thermal conductivity, excellent electrical insulation |
Silicon Carbide Selection Criteria
Silicon carbide’s exceptional hardness (up to 2800 HV), fracture toughness (up to 4.5 MPa√m), and thermal conductivity (up to 150 W/m·K) make it ideal for use in high-performance and high-stress applications. The material is chosen for CNC machining based on the following criteria:
Silicon Carbide (SiC) excels in parts requiring extreme hardness and wear resistance. Its high hardness makes it ideal for abrasive tools, mechanical seals, and components exposed to harsh conditions in aerospace and automotive applications.
Alumina (Al₂O₃), while also a hard material, is more suited for electrical insulators and wear-resistant applications rather than abrasive components.
Zirconia (ZrO₂) offers high fracture toughness, ideal for components requiring resistance to fracture under stress.
Aluminum Nitride (AlN) provides exceptional thermal conductivity that is suitable for electronics and thermal management but is less effective in abrasive conditions.
CNC Machining Techniques for Silicon Carbide
CNC Machining Process Comparison
CNC Machining Technology | Dimensional Accuracy (mm) | Surface Roughness (Ra µm) | Typical Applications | Key Advantages |
|---|---|---|---|---|
±0.005 | 0.05-0.2 | Mechanical seals, precision abrasive parts | Ultra-fine surface finish and superior dimensional accuracy | |
±0.01 | 0.4-0.8 | Grinding tools, abrasive components | High precision and capability for complex geometry machining | |
±0.01 | 0.8-1.2 | Mounting holes, fluid channels | Accurate drilling for hard ceramic materials | |
±0.005 | 0.1-0.4 | Wear-resistant parts, high-precision fixtures | High dimensional accuracy and consistency |
CNC Process Selection Strategy
Selecting the appropriate CNC machining process is crucial for achieving optimal results with silicon carbide components:
CNC Grinding is preferred for achieving ultra-fine finishes (Ra ≤0.2 µm) and tight tolerances, essential for mechanical seals and precision abrasive components.
CNC Milling is ideal for creating complex, precise abrasive parts, such as grinding tools, where detailed geometry is required.
CNC Drilling ensures accurate and precise hole placement, crucial for functional features in abrasive parts and fluid flow components.
Precision Machining is optimal for manufacturing wear-resistant components that require consistent high-precision dimensional tolerances (±0.005 mm).
Surface Treatments for CNC Silicon Carbide Components
Surface Treatment Comparison
Treatment Method | Hardness (HV) | Corrosion Resistance | Max Operating Temp (°C) | Typical Applications | Key Features |
|---|---|---|---|---|---|
2500-2800 HV | Excellent | 900°C | Abrasive tooling, cutting inserts | Increased surface hardness and abrasion resistance | |
2200-2500 HV | Excellent | 1300°C | Aerospace and turbine components | Superior thermal insulation, enhances lifespan | |
2000-2100 HV | Excellent | 1000°C | Precision sealing components | Improved surface finish, reduced friction | |
2500-2800 HV | High | 1000°C | Wear-resistant seals, abrasive surfaces | Enhanced hardness, wear and thermal resistance |
Typical Prototyping Methods
CNC Machining Prototyping: Precision tolerances ±0.005 mm, ideal for design verification.
Ceramic 3D Printing: Precise layers (25 µm) for intricate geometries.
Powder Bed Fusion: Accuracy within ±0.01 mm, suitable for complex testing.
Quality Assurance Procedures
CMM Inspection: Verify dimensional accuracy within ±0.005 mm.
Surface Finish Analysis: Confirm roughness ≤0.5 µm.
Mechanical Testing: ASTM standards for hardness (ASTM C1327) and fracture toughness (ASTM C1421).
Non-Destructive Testing (NDT): Ultrasonic inspection for internal defects.
Thermal Stability Testing: Validate performance at temperatures up to 1300°C.
ISO 9001 Compliance: Ensures consistent quality control and traceability.
Key Industry Applications
Abrasive grinding tools
Mechanical seals
High-performance bearings
Aerospace abrasive components
