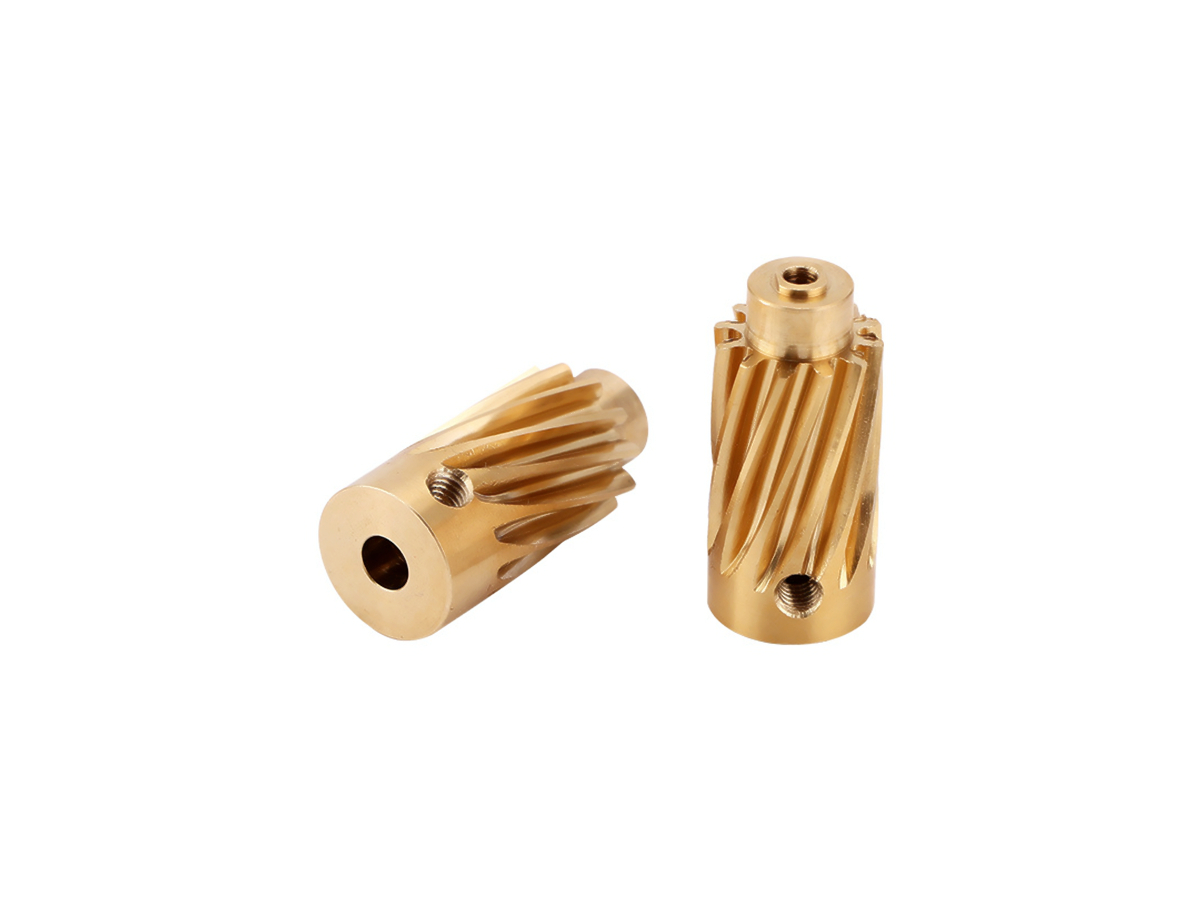

CNC Machining Solutions for C90500 Manganese Bronze in Heavy-Duty Machinery
Introduction
The heavy-duty machinery, agricultural machinery, and industrial sectors require materials capable of enduring extreme mechanical stresses, heavy loads, and challenging operating conditions. C90500 Manganese Bronze is an ideal choice for manufacturing robust machinery components such as gears, bushings, bearings, valve bodies, and heavy-duty fittings due to its exceptional tensile strength, excellent wear resistance, and superior durability.
Leveraging advanced CNC machining capabilities, C90500 Manganese Bronze components are precisely crafted to strict tolerances, providing superior reliability and long-term performance in heavy-duty machinery applications.
C90500 Manganese Bronze for Heavy-Duty Machinery Applications
Material Performance Comparison
Material | Tensile Strength (MPa) | Yield Strength (MPa) | Wear Resistance | Typical Applications | Advantage |
|---|---|---|---|---|---|
450-585 | 170-310 | Exceptional | Heavy-duty gears, bushings, bearings | Excellent strength, superior wear resistance | |
760-895 | 415-550 | Exceptional | Bearings, heavy-load components | High strength, outstanding durability | |
515-655 | 205-310 | Excellent | Valve parts, industrial bearings | Corrosion-resistant, strong | |
345-400 | 140-200 | Good | Connectors, fittings | High machinability, moderate strength |
Material Selection Strategy
Selecting C90500 Manganese Bronze for heavy-duty machinery involves precisely evaluating mechanical and operational criteria:
For gears, bushings, and bearings subjected to dynamic loads exceeding 500 MPa and severe abrasive conditions, C90500 Manganese Bronze provides exceptional wear resistance (ASTM G65 abrasion test rating), reliable tensile strength up to 585 MPa, and excellent resistance to deformation under continuous operational stress.
Bearings and bushings operating under extreme static and dynamic load conditions requiring even higher tensile strength (760-895 MPa) and elevated fatigue resistance frequently select C86300 Manganese Bronze.
Components exposed to corrosive environments, such as seawater or aggressive chemicals, necessitate the corrosion-resistant properties (>1200 hrs ASTM B117) of C95400 Aluminum Bronze.
For non-critical fittings or connectors, where easy machinability and moderate mechanical requirements (tensile strength around 400 MPa) are prioritized, choose Brass C360 for efficiency and cost-effectiveness.
CNC Machining Processes
Process Performance Comparison
CNC Machining Process | Dimensional Accuracy (mm) | Surface Roughness (Ra μm) | Typical Applications | Key Advantages |
|---|---|---|---|---|
±0.005-0.02 | 0.4-3.2 | Complex gears, machinery housings | Versatile machining, precise detailing | |
±0.005-0.01 | 0.4-1.6 | Bearings, bushings, cylindrical gears | High rotational precision, excellent finish | |
±0.01-0.02 | 1.6-3.2 | Heavy-duty fittings, precise hole drilling | Accurate hole positioning, controlled depth | |
±0.003-0.01 | 0.2-0.6 | Complex industrial components, precision parts | Highest accuracy, intricate geometry capability |
Process Selection Strategy
Selecting optimal CNC machining methods for C90500 Manganese Bronze heavy-duty machinery components involves careful assessment of precision and functional requirements:
CNC Milling Service is ideal for intricate machinery housings, gears, and complex shapes requiring dimensional tolerances within ±0.005 mm due to its flexibility in achieving detailed features, including pockets, slots, and intricate contours.
Cylindrical components such as bearings, bushings, or shaft sleeves demanding strict rotational accuracy (±0.005 mm) and exceptional surface finishes (Ra ≤ 1.6 μm) benefit most from CNC Turning Service.
Components requiring accurately positioned holes with tolerance levels around ±0.01 mm and specific depth control for assembly purposes effectively utilize CNC Drilling Service to maintain dimensional consistency and accuracy.
Highly intricate and precision components with challenging geometries and the strictest tolerances (±0.003 mm), such as complex valve bodies or precision machinery hardware, leverage Multi-Axis CNC Machining Service to guarantee superior accuracy and complexity.
Surface Treatment
Surface Treatment Performance
Treatment Method | Corrosion Resistance | Wear Resistance | Machinery Suitability | Typical Applications | Key Features |
|---|---|---|---|---|---|
Outstanding (>1500 hrs ASTM B117) | Very High (HV500-700) | Excellent | Gears, bushings, bearing surfaces | Enhanced durability, superior wear protection | |
Excellent (≥1000 hrs ASTM B117) | Moderate | Excellent | Valve bodies, fittings | Improved corrosion resistance, cleanliness | |
Superior (>1000 hrs ASTM B117) | Very High (HV1500-2500) | Excellent | High-wear parts, industrial gears | High hardness, friction reduction | |
Excellent (≥1000 hrs ASTM B117) | High | Excellent | Precision fittings, bearings | Ultra-smooth finish, minimized contamination |
Surface Treatment Selection
Selecting appropriate surface treatments for C90500 Manganese Bronze components demands a detailed evaluation of operating conditions and performance metrics:
Gears and heavy-duty bushings exposed to extreme wear environments benefit significantly from Electroplating, which increases surface hardness (500-700 HV), reduces friction coefficients, and delivers excellent corrosion resistance exceeding 1500 hrs in salt spray testing (ASTM B117).
Valve bodies and critical fittings operating in chemically aggressive or corrosive conditions utilize Passivation to provide corrosion protection and enhance cleanliness, meeting or exceeding 1000 hrs of ASTM B117 testing.
High-load industrial components, specifically gears and bearings subjected to severe frictional environments, select PVD Coating to achieve exceptionally high hardness values (1500-2500 HV), reduced friction, and prolonged component lifespan.
Precision components such as bearings and high-accuracy fittings demanding ultra-smooth finishes (Ra ≤ 0.2 µm) opt for Electropolishing, which effectively minimizes surface irregularities and enhances resistance to contamination and corrosion.
Quality Control
Quality Control Procedures
Rigorous dimensional inspections using Coordinate Measuring Machines (CMM) and optical comparators.
Surface roughness measurements were conducted with precision profilometers.
Mechanical property evaluations (tensile, yield, fatigue) following ASTM standards.
Corrosion and wear resistance validation through ASTM B117 salt spray tests.
Non-destructive testing (NDT), including ultrasonic, radiographic, and magnetic particle inspections.
Detailed documentation complies with ISO 9001 and specific industry standards for heavy-duty machinery.
Industry Applications
Heavy-Duty Machinery Component Applications
High-strength gears and heavy-duty bearings.
Bushings and bearing assemblies.
Valve bodies, fittings, and housings.
Components for industrial and agricultural machinery.
