CNC Machining Solutions for Engine and Transmission Components

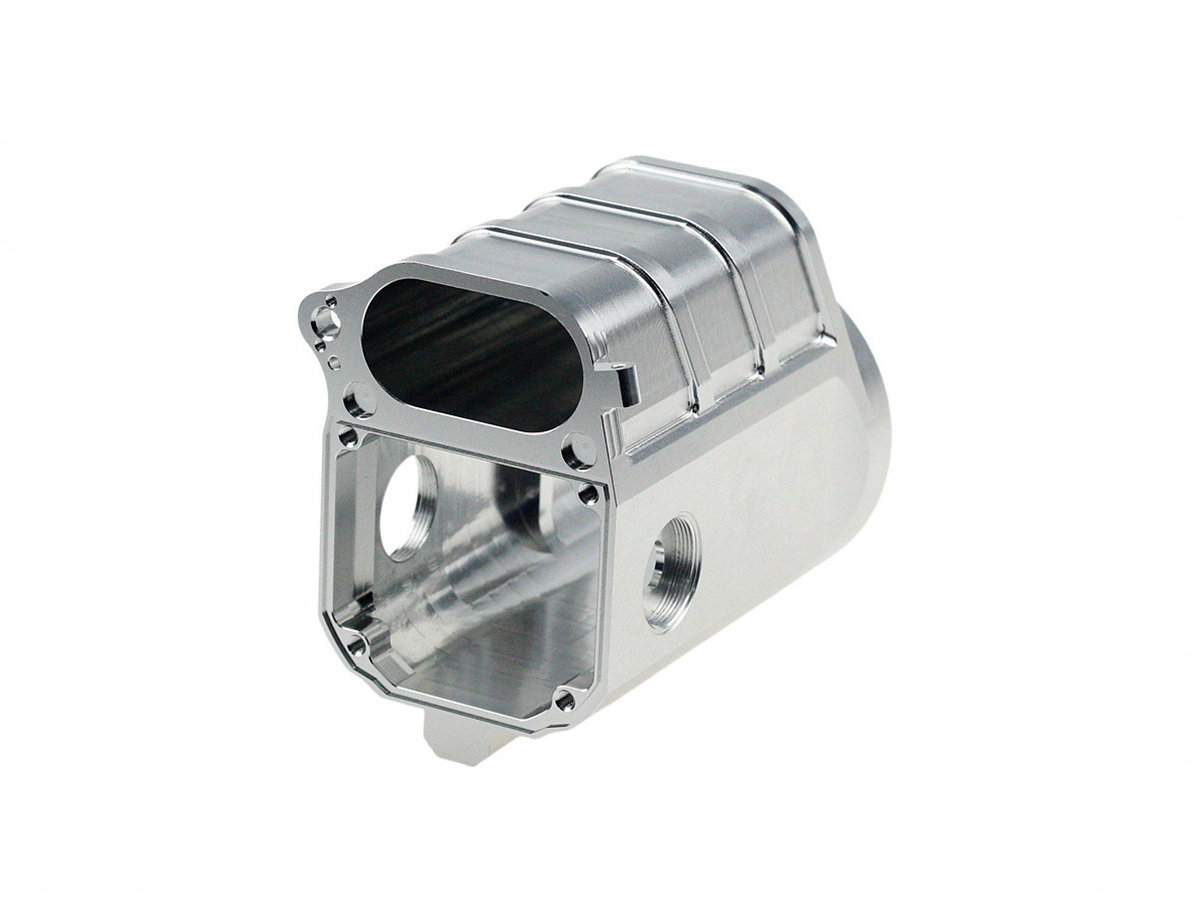

Introduction to CNC Machined Engine and Transmission Components
Engine and transmission systems represent the core of vehicle performance, requiring components that deliver unmatched precision, strength, and durability. Advanced CNC machining technology provides critical engine and transmission components, including cylinder heads, engine blocks, pistons, crankshafts, transmission gears, and shafts, with exact dimensional tolerances. Preferred materials typically include aluminum alloys (7075, 6061), alloy steels (4140, 4340), stainless steels (SUS630), and cast irons due to their superior mechanical properties and durability.
With specialized CNC machining services, automotive manufacturers ensure consistent quality and reliability essential for engine efficiency and transmission performance.
Material Performance Comparison for Engine and Transmission Parts
Material | Tensile Strength (MPa) | Density (g/cm³) | Fatigue Resistance | Typical Applications | Advantage |
|---|---|---|---|---|---|
540-570 | 2.8 | Excellent | Pistons, cylinder heads | High strength, lightweight | |
655-1000 | 7.85 | Outstanding | Crankshafts, connecting rods | Excellent toughness, strength | |
745-1080 | 7.85 | Exceptional | Transmission gears, shafts | Superior strength, fatigue resistance | |
930-1200 | 7.78 | Outstanding | Precision transmission components | High strength, corrosion-resistant |
Material Selection Strategy for Engine and Transmission Parts
Choosing the ideal material for engine and transmission components involves evaluating strength, fatigue life, wear resistance, and operational environment:
Aluminum 7075-T6 offers exceptional lightweight properties and high tensile strength (up to 570 MPa), ideal for pistons and cylinder heads, boosting engine efficiency and performance.
Alloy Steel 4140 provides a balanced combination of toughness, strength (up to 1000 MPa), and fatigue resistance, making it excellent for high-stress components like crankshafts and connecting rods.
Alloy Steel 4340 is preferred for transmission gears and shafts due to its exceptional strength (up to 1080 MPa), toughness, and fatigue resistance, ensuring smooth and reliable power transmission.
Stainless Steel SUS630 (17-4PH) offers superior corrosion resistance and high mechanical strength (up to 1200 MPa), critical for precision transmission components and drivetrain parts exposed to harsh operating conditions.
CNC Machining Processes for Engine and Transmission Components
CNC Machining Process | Dimensional Accuracy (mm) | Surface Roughness (Ra μm) | Typical Applications | Key Advantages |
|---|---|---|---|---|
±0.005-0.02 | 0.4-1.6 | Cylinder heads, engine blocks | Accurate complex geometries | |
±0.005-0.01 | 0.4-1.2 | Transmission shafts, crankshafts | Precision rotational components | |
±0.002-0.005 | 0.1-0.4 | Transmission gears, camshafts | Ultra-precision, fine finishes | |
±0.005-0.01 | 0.2-0.8 | Complex transmission components | Enhanced accuracy, fewer setups |
CNC Process Selection Strategy for Engine and Transmission Components
Selecting suitable CNC machining processes ensures high-quality, precision automotive components:
Precision CNC Milling effectively produces intricate shapes like cylinder heads and engine blocks, achieving consistent tolerances (±0.005–0.02 mm) necessary for optimal combustion efficiency.
CNC Turning ensures high accuracy (±0.005 mm) for rotational engine components such as crankshafts, transmission shafts, and bearings, critical for smooth engine and drivetrain operation.
CNC Grinding achieves ultra-high precision (±0.002–0.005 mm) with exceptional surface finishes, ideal for transmission gears and camshafts, enhancing wear resistance and reducing friction.
Multi-Axis CNC Machining provides unmatched flexibility and accuracy (±0.005 mm) for complex-shaped components, reducing setups and improving part quality in transmission assemblies.
Surface Treatment Performance Comparison for Engine and Transmission Components
Treatment Method | Surface Roughness (Ra μm) | Wear Resistance | Corrosion Resistance | Surface Hardness | Typical Applications | Key Features |
|---|---|---|---|---|---|---|
0.2-0.6 | Exceptional | Good (≥500 hrs ASTM B117) | HV 900-1200 | Crankshafts, gears | Improved hardness, wear resistance | |
0.4-1.2 | Outstanding | Good | HRC 55-62 | Engine and transmission parts | Increased strength, fatigue life | |
0.2-0.5 | Exceptional | Excellent (≥1000 hrs ASTM B117) | HV 1500-2500 | Transmission gears, shafts | High hardness, low friction | |
0.8-1.6 | Moderate | Excellent (≥1000 hrs ASTM B117) | Unchanged | Stainless steel components | Superior corrosion resistance |
Surface Treatment Selection for Engine and Transmission Parts
Proper surface treatments enhance component longevity and performance:
Nitriding substantially enhances surface hardness (HV 900-1200) and wear resistance, ideal for crankshafts and transmission gears subjected to continuous friction.
Heat Treatment (HRC 55-62) significantly improves mechanical strength, fatigue life, and overall durability for critical engine and transmission components.
PVD Coating provides exceptional hardness (HV 1500-2500), reducing friction and improving wear performance in high-stress transmission gears and shafts.
Passivation is critical for stainless steel transmission parts, ensuring superior corrosion resistance (≥1000 hrs ASTM B117), particularly important in harsh operational environments.
Typical Prototyping Methods for Engine and Transmission Components
CNC Machining Prototyping: Delivers high-accuracy prototypes (±0.005 mm), critical for validating complex engine and transmission component designs.
Metal 3D Printing (Powder Bed Fusion): Quickly produces complex geometries (±0.05 mm accuracy), suitable for functional testing of innovative transmission components.
Rapid Molding Prototyping: Offers cost-effective production of prototype engine parts for rigorous mechanical and thermal testing.
Quality Assurance Procedures
Coordinate Measuring Machine (CMM) Inspection (ISO 10360-2): Precision measurement with ±0.005 mm accuracy ensures component fitment.
Surface Roughness Verification (ISO 4287): Ensures surface quality meets specified automotive standards (Ra ≤0.8 µm).
Mechanical Testing (ASTM E8/E466): Confirms tensile strength, yield strength, and fatigue life, critical for automotive reliability.
Non-Destructive Testing (Magnetic Particle Inspection ASTM E1444, Ultrasonic Inspection ASTM E2375): Ensures internal integrity of components like crankshafts and gears.
Metallurgical Evaluation (ASTM E3/E407): Analyzes grain structure and hardness, confirming heat treatment effectiveness.
Full ISO 9001 Traceability: Provides comprehensive documentation for automotive quality compliance.
Industry Applications
High-performance engine components
Precision transmission gears and shafts
Automotive drivetrain systems
