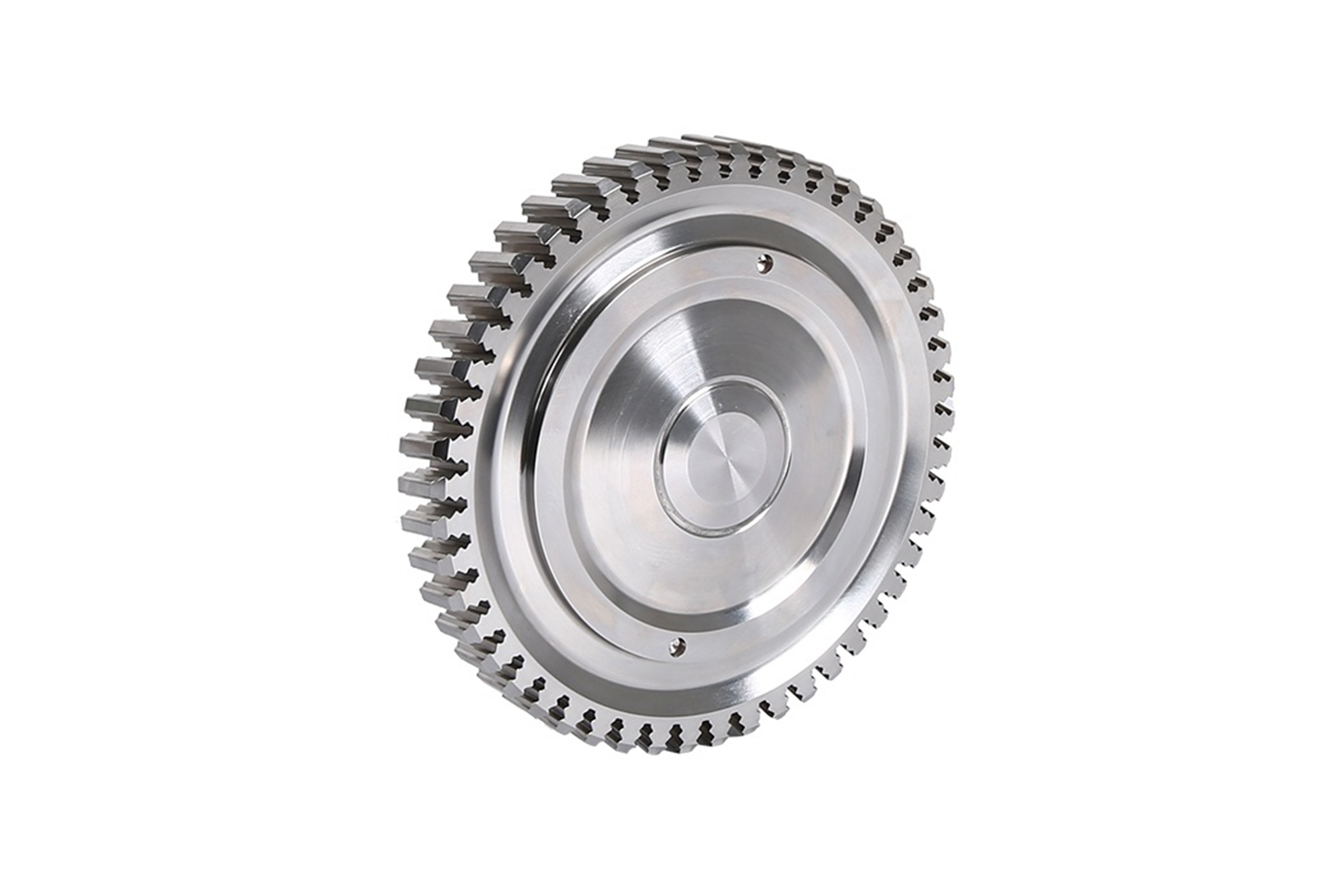

CNC Milling of Superalloy Components for Aerospace and Aviation Applications
Introduction
CNC milling of superalloy CNC machined components has become increasingly essential in the aerospace and aviation industries, driven by stringent requirements for materials capable of withstanding extreme operational conditions. Superalloys, distinguished by their superior strength, exceptional heat resistance, and corrosion resistance, are uniquely engineered to perform reliably within demanding aerospace environments, particularly within aircraft turbine blades, engines, and structural assemblies.
CNC milling technology significantly elevates the precision and complexity achievable in manufacturing aerospace components. Through advanced machining capabilities, complex geometries and critical dimensional tolerances are consistently met, ensuring aircraft safety, reliability, and operational efficiency. Aerospace manufacturers widely adopt CNC milling to produce parts that maintain their integrity and functionality even when subjected to the harshest conditions, dramatically improving aircraft performance and lifespan and reducing maintenance.
Available Machining Processes
Several CNC machining processes are particularly effective for superalloy aerospace components:
CNC Milling Service: Provides precise machining of intricate geometries, which are crucial for turbine blades, engine parts, and structural fittings.
Electrical Discharge Machining (EDM): Ideal for intricate, complex cuts requiring high accuracy and minimal thermal distortion.
CNC Turning Service: Essential for manufacturing cylindrical aerospace components, delivering excellent dimensional accuracy and repeatability.
These specialized processes allow for greater flexibility and precision, which are crucial in aerospace manufacturing, where safety and precision are paramount.
Typical Superalloy Overview
Superalloys typically employed in aerospace applications include:
Inconel 718 is a nickel-based superalloy renowned for its outstanding heat and corrosion resistance, used extensively in turbine blades and combustion chambers.
Inconel 625: Another nickel-based alloy highly resistant to oxidation and corrosion, ideal for exhaust components and engine housings.
Cobalt-based alloys (e.g., Haynes 188): Offer exceptional high-temperature strength and resistance to thermal fatigue, making them suitable for critical engine components.
Iron-based superalloys (e.g., A-286): Provide a balanced combination of strength, corrosion resistance, and machinability, widely utilized in structural components and fasteners.
Each alloy type addresses specific challenges encountered within the diverse operational conditions of aerospace applications.
CNC Machinability of Superalloys
Machining superalloys can be particularly challenging due to their toughness, heat resistance, and material strength. Overcoming these challenges involves:
Advanced Tooling: Employing carbide or ceramic cutting tools specifically designed to withstand the high temperatures and abrasive wear common in superalloy machining.
Optimized Machining Parameters: Carefully controlling cutting speeds, feed rates, and depths of cut to avoid excessive tool wear, prevent component deformation, and maintain precision.
These strategies significantly enhance the efficiency of CNC milling operations, enabling manufacturers to achieve consistently high-quality aerospace components.
Considerations in Superalloy CNC Machining
Key considerations critical to successful superalloy CNC machining include:
Tool Wear Management: Regular monitoring of tool condition and timely replacements are essential to maintain consistent machining precision and avoid unexpected downtime.
Thermal Control: Efficient management of heat generation through coolant application and controlled machining environments to prevent thermal distortions or damage.
Workpiece Stability: Secure clamping and rigid fixturing setups to minimize vibrations, ensuring precise dimensional accuracy and surface finish.
Attention to these factors ensures CNC-machined superalloy components' consistent quality and reliability.
Common Surface Treatments
Surface treatments significantly improve aerospace component performance, durability, and service life:
Shot Peening: Enhances fatigue resistance by inducing beneficial compressive stresses on the surface, improving part longevity under cyclic loading.
Thermal Barrier Coatings (TBC): Provides critical protection against extreme heat and oxidation, prolonging component lifespan and reliability.
Electroplating: Adds protective layers that enhance corrosion and wear resistance, improving overall performance.
These treatments are integral in preparing superalloy components for the demanding aerospace and aviation environments.
Applications in Aerospace and Aviation
Superalloy components produced by CNC milling are critical in aerospace applications, such as:
Turbine Blades and Vanes: These components must retain structural integrity and operational efficiency under severe thermal cycles and mechanical stresses.
Combustion Chambers: Require materials capable of enduring high temperatures and corrosive combustion gases without performance degradation.
Exhaust Components: Relatively withstand extreme temperatures, pressures, and corrosive exhaust gases.
Structural Fasteners and Fittings: Vital for maintaining aircraft structures' stability and structural integrity under dynamic operational loads.
By precisely machining superalloys, CNC milling ensures aerospace components meet these demanding specifications consistently, maintaining peak operational performance and reliability.
Advantages and Limitations
Advantages:
Achieves exceptional precision and complexity.
Offers superior strength, thermal, and corrosion resistance.
Delivers reliable components with extended operational life, minimizing maintenance costs.
Limitations:
Increased tool wear rates lead to higher operational costs.
Requires specialized expertise and advanced machining processes.
Higher production costs relative to conventional alloy machining.
