Copper Brass CNC Machining Services: All-In-One Solutions for Automotive Components
Introduction
Copper brass CNC machining services offer an all-in-one solution for producing high-quality automotive components. Brass alloys, such as C360 and C28000, and copper alloys, like C110 and C101, are commonly used in automotive applications due to their excellent machinability, electrical conductivity, and corrosion resistance. These properties make them ideal materials for various automotive components, including connectors, terminals, radiators, and brake systems. By utilizing Copper Brass CNC Machining, manufacturers can ensure high precision and performance in parts that must endure high stress and wear.
With the ability to deliver rapid prototyping and full-scale production, Mass Production CNC Machining offers a cost-effective and efficient solution for large-volume manufacturing of automotive components, maintaining consistency and tight tolerances throughout the production process. This all-in-one service helps streamline operations, reduce lead times, and ensure top-quality results for automotive parts that perform under demanding conditions.
Copper and Brass Material Properties
Material Performance Comparison Table
Copper/Brass Alloy | Tensile Strength (MPa) | Yield Strength (MPa) | Hardness (HRC) | Density (g/cm³) | Applications | Advantages |
|---|---|---|---|---|---|---|
210–250 | 70–90 | 40–50 | 8.92 | Electrical terminals, connectors | Superior electrical conductivity, corrosion resistance | |
460–510 | 210–270 | 60–75 | 8.44 | Automotive fittings, gears | Excellent machinability, good mechanical strength | |
220–280 | 70–100 | 50–60 | 8.92 | Precision electronic parts, conductors | Highest purity, minimal oxygen content | |
370–490 | 170–290 | 60–70 | 8.51 | Radiators, heat exchangers | Good corrosion resistance, high strength |
Selecting the Right Copper or Brass Alloy for Automotive CNC Machining
Choosing the right copper or brass alloy for automotive components is vital for ensuring durability, performance, and reliability in high-performance applications:
Copper C110 (Electrolytic): Ideal for components requiring maximum electrical conductivity and corrosion resistance, such as connectors, terminals, and electrical contacts.

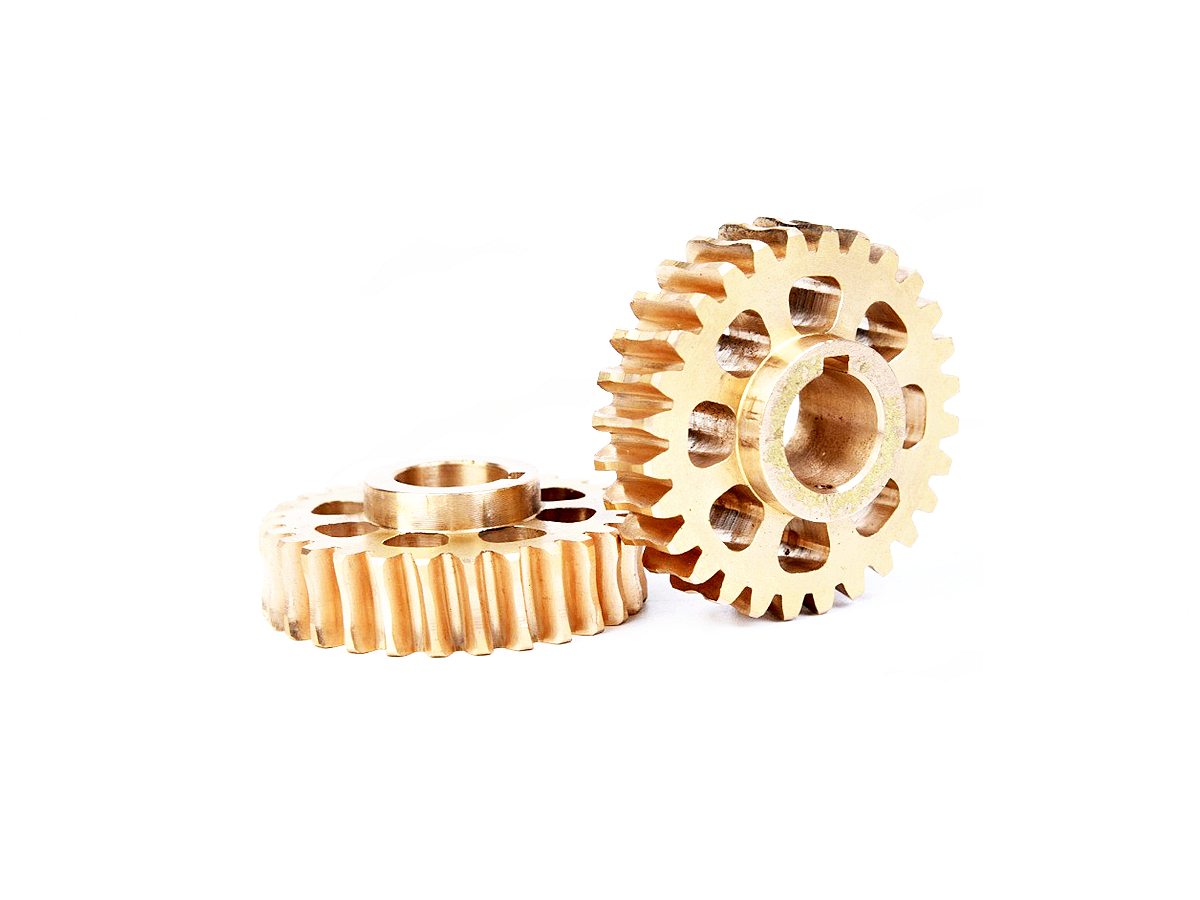

Brass C360: Perfect for automotive fittings, gears, and connectors, offering excellent machinability and good mechanical strength (up to 510 MPa tensile).
Copper C101 (Oxygen-Free): Recommended for precision electronic applications with high purity, ensuring minimal electrical loss and optimal performance.
Brass C28000: Best suited for automotive parts exposed to high-temperature environments, such as radiators and heat exchangers, providing high strength and corrosion resistance.
CNC Machining Processes for Copper and Brass Automotive Parts
CNC Process Comparison Table
CNC Machining Process | Accuracy (mm) | Surface Finish (Ra µm) | Typical Uses | Advantages |
|---|---|---|---|---|
±0.005 | 0.4–1.6 | Engine components, connectors | High precision for complex shapes | |
±0.005 | 0.4–1.0 | Shafts, pins, cylindrical components | Consistent surface finishes, high accuracy | |
±0.01 | 0.8–3.2 | Holes for fasteners, threaded components | Fast, precise hole-making | |
±0.003 | 0.2–1.0 | Complex automotive components | High precision, multi-directional machining |
CNC Process Selection Strategy
Selecting the appropriate CNC machining process for copper and brass automotive components depends on part complexity, required precision, and the material’s mechanical properties:
CNC Milling: Best suited for machining intricate aluminum parts with complex geometries, such as engine components and automotive connectors. This process offers high precision (±0.005 mm) and versatility for various shapes.
CNC Turning: Ideal for cylindrical components like shafts, pins, and connectors. It ensures high consistency and accuracy (±0.005 mm) and smooth surface finishes (Ra ≤1.0 µm).
CNC Drilling: Recommended for creating precise holes, threads, and fastener holes in copper and brass components, offering fast turnaround times and high precision (±0.01 mm).
Multi-Axis Machining: Essential for machining complex, multi-directional features in automotive parts, offering superior precision (±0.003 mm) and reducing the number of production steps.
Surface Treatments for Copper and Brass Automotive Parts
Surface Treatment Comparison Table
Treatment Method | Surface Roughness (Ra µm) | Corrosion Resistance | Max Temp (°C) | Applications | Key Features |
|---|---|---|---|---|---|
≤0.4 | Excellent | 250 | Connectors, fittings | Smooth surface, enhanced corrosion resistance | |
≤1.0 | Excellent | 450 | Automotive parts, high-performance components | Increased hardness, wear resistance | |
≤1.0 | Excellent | 250 | Precision components | Improved corrosion resistance, extended lifespan | |
≤2.0 | Excellent | 200 | Automotive exterior parts | Durable, weather-resistant, aesthetic finishes |
Surface Treatment Selection Strategy
Surface treatments enhance copper and brass automotive parts' performance, durability, and appearance. The right treatment improves corrosion resistance and wear resistance, crucial for parts exposed to harsh conditions:
Electropolishing: Ideal for copper and brass automotive components like connectors and fittings, electropolishing improves surface smoothness and enhances corrosion resistance.
PVD Coating: Best for high-performance automotive components, such as engine parts and connectors, providing increased hardness, wear resistance, and excellent protection against oxidation.
Passivation: Suitable for precision components like fasteners and connectors, passivation enhances corrosion resistance, ensuring long-lasting performance in automotive environments.
Powder Coating: Recommended for automotive exterior components, powder coating provides a durable, aesthetic finish that resists weathering and corrosion.
Typical Copper and Brass Rapid Prototyping Methods
Effective prototyping methods for copper and brass components include:
CNC Machining Prototyping: Provides fast, high-precision production of copper and brass parts in small quantities for testing and iteration.
Copper and Brass 3D Printing: Ideal for rapid prototyping of complex copper and brass components, enabling quick changes before transitioning to full production.
Rapid Molding Prototyping: Cost-effective for creating moderately complex copper and brass parts before scaling to high-volume production.
Quality Assurance Procedures
Dimensional Inspection: ±0.002 mm accuracy (ISO 10360-2).
Material Verification: ASTM B16, ASTM B134 standards for copper and brass alloys.
Surface Finish Assessment: ISO 4287.
Mechanical Testing: ASTM E8 for tensile and yield strength.
Visual Inspection: ISO 2768 standards.
ISO 9001 Quality Management System: Ensuring consistent quality and performance.
Key Applications
Automotive: Radiators, connectors, engine parts.
Consumer Electronics: Circuit boards, electrical contacts, connectors.
Industrial Equipment: Heat exchangers, mechanical components, fittings.
Aerospace: Structural components, aerospace fittings.
