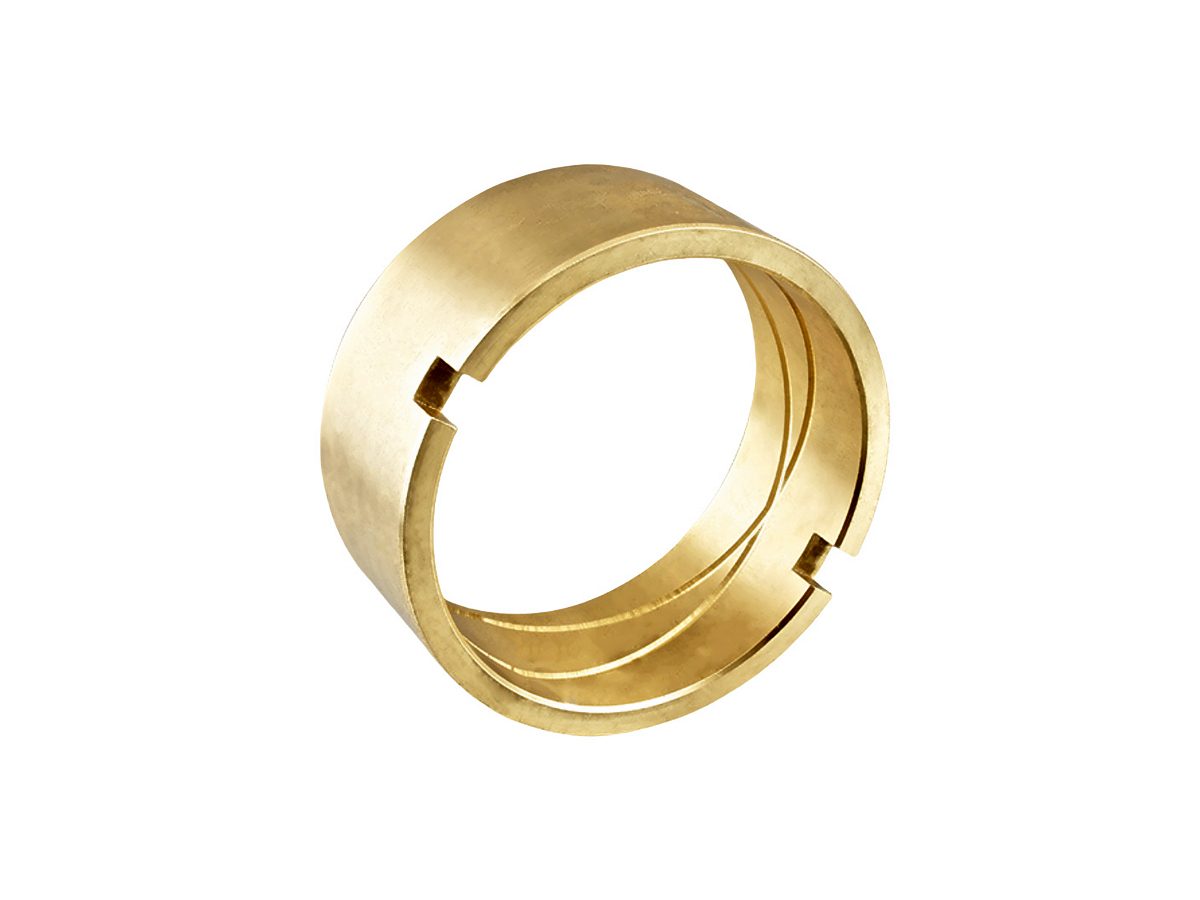

Corrosion-Resistant Brass C220 CNC Machining Power Generation Components
Introduction
The power generation industry requires materials with exceptional corrosion resistance, good thermal conductivity, and reliable mechanical properties. Brass C220, also known as commercial bronze, is an ideal material choice for critical components such as heat exchanger tubes, electrical connectors, valves, and fittings due to its superior corrosion resistance and excellent machinability.
Advanced CNC machining techniques allow precise fabrication of Brass C220, resulting in parts with tight dimensional tolerances, complex geometries, and outstanding surface finishes. CNC-machined Brass C220 components significantly enhance power generation equipment's reliability, efficiency, and lifespan.
Brass C220 for Power Generation Applications
Material Performance Comparison
Material | Tensile Strength (MPa) | Yield Strength (MPa) | Corrosion Resistance | Typical Applications | Advantage |
|---|---|---|---|---|---|
310-345 | 90-140 | Excellent (≥1000 hrs ASTM B117) | Heat exchanger tubes, connectors, valves | Superior corrosion resistance, good formability | |
220-260 | 70-85 | Outstanding (>1500 hrs ASTM B117) | Electrical connectors, conductors | Exceptional conductivity, corrosion resistance | |
515-620 | 205-310 | Excellent (≥1000 hrs ASTM B117) | Valve bodies, fittings | High strength, excellent corrosion resistance | |
310 | 275 | Good (≥800 hrs ASTM B117) | Structural supports, lightweight components | Lightweight, easy machinability |
Material Selection Strategy
Selecting Brass C220 for power generation involves balancing corrosion resistance, thermal performance, mechanical strength, and machinability:
Heat exchanger tubes, valves, and electrical connectors benefit from Brass C220’s excellent corrosion resistance and thermal conductivity, making it ideal for sustained performance in harsh operational environments.
Critical electrical components demanding superior electrical conductivity and exceptional corrosion resistance opt for Copper C101 (T2).
Valve bodies, fittings, and structural components requiring higher mechanical strength and corrosion resistance typically utilize Stainless Steel SUS304.
Lightweight structural supports and brackets in power generation equipment choose Aluminum 6061 for optimal strength-to-weight ratios and ease of machining.
CNC Machining Processes
Process Performance Comparison
CNC Machining Technology | Dimensional Accuracy (mm) | Surface Roughness (Ra μm) | Typical Applications | Key Advantages |
|---|---|---|---|---|
±0.02 | 1.6-3.2 | Basic connectors, simple valves | Economical, efficient production | |
±0.015 | 0.8-1.6 | Cylindrical fittings, valve parts | Improved accuracy, fewer setups | |
±0.005 | 0.4-0.8 | Complex heat exchanger components, turbine fittings | Exceptional precision, excellent finishes | |
±0.003-0.01 | 0.2-0.6 | High-precision connectors, instrumentation parts | Highest accuracy, intricate detailing |
Process Selection Strategy
Process selection for CNC-machined Brass C220 parts in power generation depends on complexity, precision demands, and application requirements:
Simple valves, connectors, and fittings benefit from economical and efficient production using 3 Axis CNC Milling, delivering reliable quality.
Cylindrical fittings, moderately complex valves, and connectors requiring increased accuracy (±0.015 mm) are efficiently machined using 4 Axis CNC Milling.
Complex heat exchanger components, intricate turbine fittings, and specialized valves demanding strict dimensional tolerances (±0.005 mm) utilize 5 Axis CNC Milling for maximum performance.
High-precision electrical connectors, instrumentation parts, and micro-components requiring exceptional accuracy (±0.003 mm) rely on Multi-Axis CNC Machining, ensuring peak reliability and operational excellence.
Surface Treatment
Surface Treatment Performance
Treatment Method | Corrosion Resistance | Wear Resistance | Thermal Stability | Typical Applications | Key Features |
|---|---|---|---|---|---|
Excellent (≥1000 hrs ASTM B117) | Moderate | Excellent | Valves, fittings | Superior corrosion protection, contamination control | |
Outstanding (>1500 hrs ASTM B117) | Very High (HV500-700) | Excellent | Connectors, high-wear surfaces | Enhanced durability, surface hardness | |
Excellent (≥1000 hrs ASTM B117) | High | Excellent | Instrumentation, valves | Ultra-smooth surfaces, improved sterility | |
Superior (>1200 hrs ASTM B117) | High | Very Good | External equipment components, protective casings | Durable finish, aesthetic versatility |
Surface Treatment Selection
Choosing suitable surface treatments for Brass C220 components in power generation depends on operational requirements, corrosion protection, and durability:
Valves and fittings requiring reliable corrosion resistance utilize Passivation to maintain component integrity in harsh environments.
Electroplating benefits electrical connectors and high-wear surfaces, significantly improving durability, conductivity, and corrosion resistance.
Instrumentation and critical valves demanding exceptionally smooth surfaces and enhanced corrosion protection opt for Electropolishing.
External components and protective casings seeking durability and aesthetic appeal utilize Powder Coating for robust protection and versatile finishing.
Quality Control
Quality Control Procedures
Rigorous dimensional verification using Coordinate Measuring Machines (CMM) and optical inspection methods.
Surface roughness evaluations via precision profilometers.
Mechanical testing (tensile, yield, fatigue) compliant with ASTM standards.
Corrosion resistance testing was conducted via ASTM B117 (Salt Spray Test).
Non-destructive testing (NDT), including radiographic and ultrasonic inspections.
Comprehensive documentation in alignment with ISO 9001, ASME, and power industry-specific quality requirements.
Industry Applications
Power Generation Component Applications
Heat exchanger tubes and components.
Corrosion-resistant valves and fittings.
Electrical connectors and terminals.
Turbine cooling system components.
