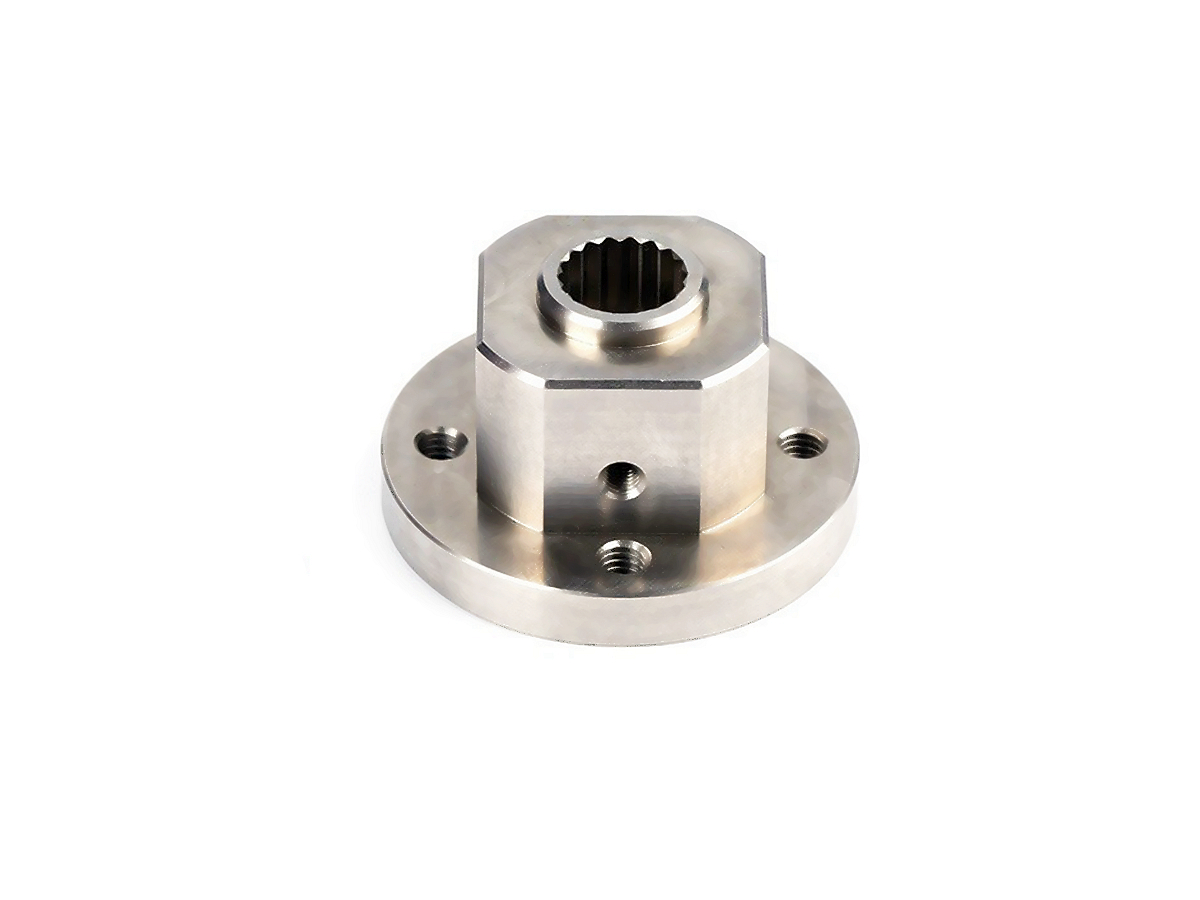

Cost-Effective Low-Volume CNC Machining of Carbon Steel for Automotive Components
Introduction
Cost-effective low-volume CNC machining of carbon steel offers manufacturers a precise and efficient solution for producing durable and high-performance automotive components. Carbon steel alloys like 1018, 1045, and 4140 are widely used in the automotive industry for their excellent strength, toughness, and machinability. These alloys are ideal for various automotive applications, including engine components, chassis parts, and transmission gears. By using Carbon Steel CNC Machining, manufacturers can produce low-volume, custom automotive parts that meet rigorous quality standards while optimizing production costs.
Low-volume CNC machining allows for fast prototyping and small-batch production, ensuring that automotive manufacturers can test, refine, and iterate their designs before scaling up to full production. This Low-Volume CNC Machining process offers quick turnaround times and flexibility, making it perfect for custom or limited-edition automotive components that require high precision.
Carbon Steel Material Properties
Material Performance Comparison Table
Carbon Steel Alloy | Tensile Strength (MPa) | Yield Strength (MPa) | Hardness (HRC) | Density (g/cm³) | Applications | Advantages |
|---|---|---|---|---|---|---|
370–510 | 250–450 | 55–75 | 7.87 | Automotive body panels, structural components | Good machinability, excellent welding properties | |
550–650 | 450–550 | 55–75 | 7.85 | Crankshafts, gears, axles | High tensile strength, good wear resistance | |
680–850 | 415–655 | 35–45 | 7.85 | Automotive transmission parts, drive shafts | Excellent hardness, impact resistance, high strength | |
400–550 | 250–400 | 60–90 | 7.85 | Automotive frames, beams, chassis parts | Good structural integrity, excellent weldability |
Selecting the Right Carbon Steel Alloy for Automotive Applications
Choosing the right carbon steel alloy for CNC machining depends on mechanical performance, wear resistance, and application-specific needs:
1018 Steel: Ideal for automotive structural components, body panels, and other non-heat-treated parts, offering good machinability and weldability.
1045 Steel: Best for components requiring higher tensile strength (up to 650 MPa), commonly used for crankshafts, gears, and axles in automotive applications.
4140 Steel: Perfect for automotive parts that require excellent hardness and impact resistance, such as transmission components, drive shafts, and heavy-duty gears.
A36 Steel: Widely used for automotive frames, beams, and chassis parts, offering good structural integrity and easy weldability, often used in standard automotive applications.
CNC Machining Processes for Carbon Steel Automotive Parts
CNC Process Comparison Table
CNC Machining Process | Accuracy (mm) | Surface Finish (Ra µm) | Typical Uses | Advantages |
|---|---|---|---|---|
±0.005 | 0.4–1.2 | Engine components, structural parts | High versatility, precise shaping | |
±0.005 | 0.4–1.0 | Cylindrical automotive parts, shafts | Consistent accuracy, ideal for rotational parts | |
±0.01 | 0.8–3.2 | Holes for fasteners, threaded parts | Fast hole-making, high precision | |
±0.003 | 0.2–1.0 | Complex automotive parts, gears | Superior accuracy, allows complex geometries |
CNC Process Selection Strategy
The right CNC machining process depends on the part complexity, accuracy, surface finish, and required production speed:
CNC Milling: Best for producing complex parts like engine components, structural parts, and transmission gears, with high precision (±0.005 mm) and the ability to machine intricate shapes.
CNC Turning: Ideal for rotational automotive components such as shafts and bearings, ensuring consistent accuracy (±0.005 mm) and surface finishes as fine as Ra 0.4 µm.
CNC Drilling: Recommended for creating precise holes and threads in automotive components that require mechanical fastening, with fast production and accuracy (±0.01 mm).
Multi-Axis Machining: Suitable for machining intricate automotive parts with complex geometries, offering superior precision (±0.003 mm) and reducing production cycles.
Surface Treatments for Carbon Steel Parts
Surface Treatment Comparison Table
Treatment Method | Surface Roughness (Ra µm) | Wear Resistance | Max Temp (°C) | Applications | Key Features |
|---|---|---|---|---|---|
≤0.8 | Excellent | 300 | Automotive fasteners, connectors | Enhanced corrosion protection, increased durability | |
≤1.0 | Excellent | 250 | Automotive parts exposed to harsh environments | Superior corrosion resistance, improved reliability | |
≤1.0 | 2–5 times better than untreated steel (ASTM G99) | 450–600 | Automotive transmission gears, drive shafts | Increased hardness, improved wear resistance | |
≤2.0 | Excellent (ASTM D3359) | 200 | Automotive body panels, frames | Durable finish, aesthetic appeal, corrosion protection |
Surface Treatment Selection Strategy
Selecting the right surface treatment for carbon steel components enhances their durability and performance in automotive applications:
Electroplating: Best for automotive components exposed to corrosive environments, providing enhanced corrosion resistance and durability (ASTM B733).
Passivation: Ideal for parts that require high corrosion resistance, making it suitable for automotive parts exposed to harsh chemicals and fluids.
PVD Coating is recommended for components like transmission gears and drive shafts that require enhanced wear resistance and hardness, providing up to 5 times better wear resistance than untreated steel (ASTM G99).
Powder Coating: Ideal for automotive body panels and frames, providing a protective barrier and aesthetic finish while improving corrosion resistance and surface hardness (ASTM D3359 standards).
Typical Carbon Steel Rapid Prototyping Methods
Effective prototyping methods for carbon steel automotive parts include:
CNC Machining Prototyping: Enables rapid prototyping and low-volume production of high-precision automotive parts.
Carbon Steel 3D Printing: Ideal for producing complex and custom automotive components with fast lead times.
Rapid Molding Prototyping: Suitable for quick validation of automotive components, allowing efficient and cost-effective production before full-scale manufacturing.
Quality Assurance Procedures
Dimensional Inspection: ±0.002 mm accuracy (ISO 10360-2).
Material Verification: ASTM A36, ASTM AISI standards for carbon steel alloys.
Surface Finish Assessment: ISO 4287.
Mechanical Testing: ASTM E8 for tensile and yield strength.
Visual Inspection: ISO 2768 standards.
ISO 9001 Quality Management System: Ensuring consistent product quality and performance.
Key Applications
Automotive Transmission Components: Transmission gears, shafts, clutch components.
Chassis Parts: Frame components, suspension brackets.
Engine Components: Crankshafts, pistons, camshafts.
Automotive Fasteners: Bolts, screws, nuts.
