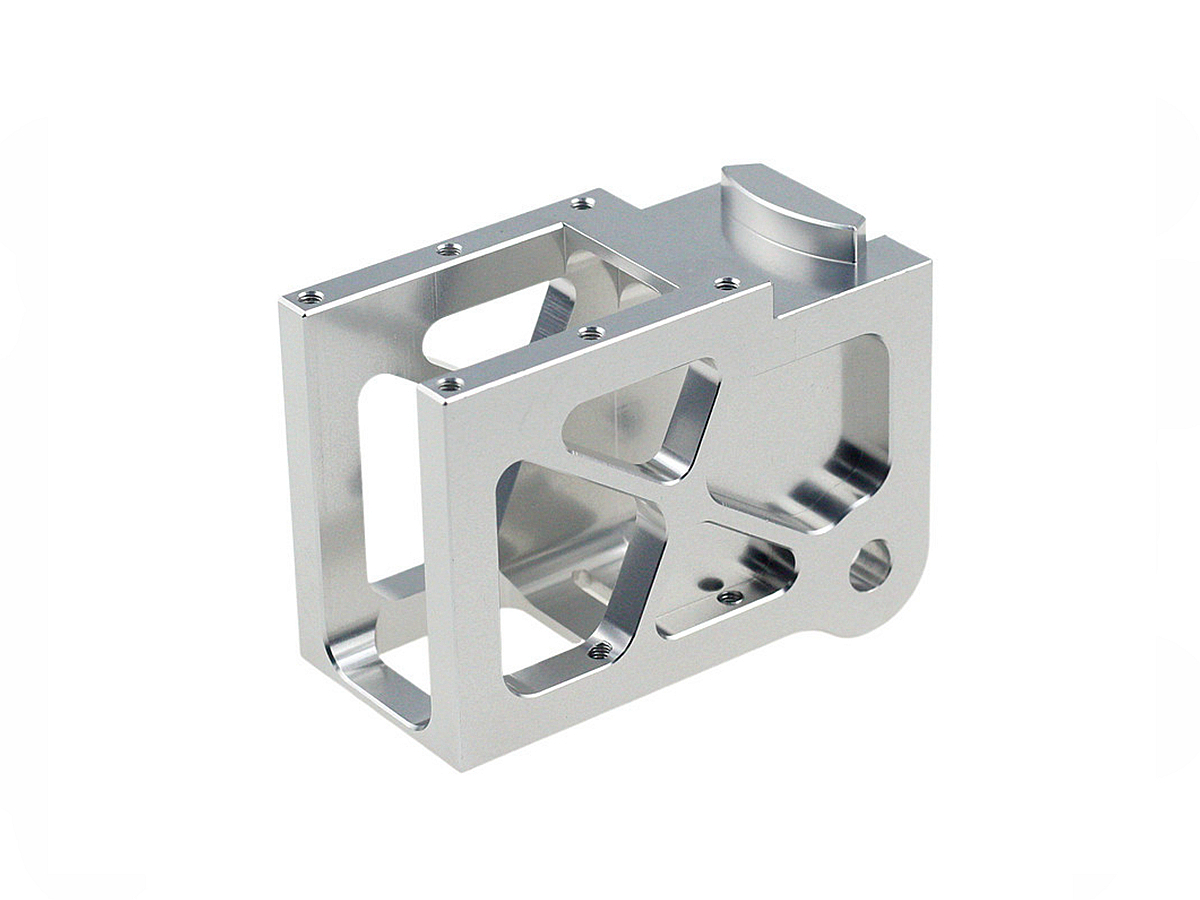

Custom Automotive CNC Machining for Critical Safety Components
Introduction to CNC Machined Automotive Safety Components
Automotive safety components are integral to vehicle reliability, occupant protection, and overall driving safety. Precision and consistency are essential to parts like braking systems, airbag housings, steering linkages, and seatbelt mechanisms. Custom CNC machining provides unparalleled accuracy and consistency, ensuring critical safety parts meet rigorous industry standards and precise specifications. Commonly used materials include high-strength aluminum alloys (7075), alloy steels (4140, 4340), stainless steels (SUS316), and advanced titanium alloys (Ti-6Al-4V).
By utilizing advanced CNC machining services, manufacturers produce automotive safety components capable of performing reliably under extreme conditions, protecting lives, and enhancing vehicle safety.
Material Performance Comparison for Automotive Safety Components
Material | Tensile Strength (MPa) | Density (g/cm³) | Impact Resistance | Typical Applications | Advantage |
|---|---|---|---|---|---|
540-570 | 2.8 | Excellent | Airbag housings, structural brackets | Lightweight, high-strength | |
745-1080 | 7.85 | Outstanding | Steering linkages, brake system parts | Superior strength and toughness | |
950-1100 | 4.43 | Exceptional | Seatbelt anchors, critical joints | High strength-to-weight ratio | |
515-620 | 8.0 | Very Good | Brake cylinders, safety-critical connectors | Excellent corrosion resistance |
Material Selection Strategy for CNC Machined Safety Parts
Selecting the optimal material for automotive safety components involves balancing strength, toughness, corrosion resistance, and lightweight characteristics:
Aluminum 7075-T6 is highly suitable for lightweight airbag housings and structural brackets, providing excellent tensile strength (up to 570 MPa) while significantly reducing overall vehicle weight and improving safety through enhanced vehicle dynamics.
Alloy Steel 4340 delivers exceptional strength (up to 1080 MPa) and impact toughness, making it ideal for high-stress components such as steering linkages, suspension components, and critical brake system parts.
Titanium Ti-6Al-4V offers a superb strength-to-weight ratio with tensile strength (up to 1100 MPa), ideal for seatbelt anchors and critical safety joints that require reliability under high-impact scenarios.
Stainless Steel SUS316 is selected for brake cylinders, fasteners, and connectors exposed to harsh environments, providing high corrosion resistance and robust mechanical performance in critical safety applications.
CNC Machining Processes for Automotive Safety Components
CNC Machining Process | Dimensional Accuracy (mm) | Surface Roughness (Ra μm) | Typical Applications | Key Advantages |
|---|---|---|---|---|
±0.005-0.02 | 0.4-1.6 | Airbag housings, brackets | Versatile, precise dimensions | |
±0.005-0.01 | 0.4-1.2 | Brake cylinders, shafts | Exceptional rotational precision | |
±0.005-0.01 | 0.2-0.8 | Complex steering linkages, joints | High precision, intricate designs | |
±0.002-0.005 | 0.1-0.4 | Precision brake parts, bearings | Ultra-high accuracy, superior finishes |
CNC Process Selection Strategy for Safety Component Manufacturing
Choosing appropriate CNC machining processes ensures automotive safety components meet rigorous dimensional and performance standards:
Precision CNC Milling reliably manufactures airbag housings and structural brackets, achieving tight dimensional tolerances (±0.005–0.02 mm) to ensure proper fitting and reliable performance.
CNC Turning offers high accuracy for rotational components like brake cylinders and safety-critical shafts, maintaining tight tolerances of ±0.005 mm, crucial for operational precision and safety.
5 Axis CNC Milling produces intricate steering linkages and complex joint assemblies, enabling detailed features and ensuring consistent dimensional precision (±0.005 mm), essential for safety-critical performance.
CNC Grinding provides ultra-precise dimensions (±0.002–0.005 mm) and superior surface finishes on critical components such as brake pistons, bearings, and mating surfaces, crucial for reliability in safety-critical systems.
Surface Treatment Performance Comparison for Automotive Safety Components
Treatment Method | Surface Roughness (Ra μm) | Wear Resistance | Corrosion Resistance | Surface Hardness | Typical Applications | Key Features |
|---|---|---|---|---|---|---|
0.4-1.0 | Excellent | Excellent (>1000 hrs ASTM B117) | HV 400-600 | Aluminum safety housings | Durable protection, corrosion resistance | |
0.8-1.6 | Moderate | Excellent (>1000 hrs ASTM B117) | Unchanged | Stainless steel brake components | Superior corrosion protection | |
0.2-0.5 | Exceptional | Excellent (>1000 hrs ASTM B117) | HV 1500-2500 | High-wear safety parts | Superior hardness, reduced friction | |
0.4-1.2 | Outstanding | Good | HRC 58-62 | Steel steering and brake components | Improved wear resistance, toughness |
Surface Treatment Selection for Automotive Safety Parts
Selecting appropriate surface treatments maximizes performance, durability, and safety:
Hard Anodizing significantly increases corrosion protection (ASTM B117 >1000 hrs) and surface hardness (HV 400-600), ideal for aluminum safety component housings and structures.
Case Hardening (Heat Treatment) enhances hardness (HRC 58-62), wear resistance, and toughness, vital for steel safety components exposed to high impact and repeated loading cycles.
Passivation improves corrosion resistance for stainless steel parts such as brake cylinders and connectors, ensuring safe operation in harsh automotive environments.
PVD Coating provides exceptional wear resistance and hardness (HV 1500-2500), suitable for critical safety components subject to continuous friction and high-load conditions.
Typical Prototyping Methods for Automotive Safety Components
CNC Machining Prototyping: Rapidly creates precise automotive safety component prototypes with dimensional tolerances ±0.005 mm, ensuring rigorous testing for fit, function, and safety performance.
Metal 3D Printing (Powder Bed Fusion): Quickly produces complex, intricate prototypes with accuracy ±0.05 mm, enabling early evaluation of critical safety component designs.
Quality Assurance Procedures
Coordinate Measuring Machine (CMM) Inspection: Accurate verification of component dimensions ±0.005 mm.
Surface Roughness Verification (Profilometer): Ensuring surface quality compliance.
Mechanical and Impact Testing (ASTM E8, ASTM E23): Evaluating structural integrity under realistic operational scenarios.
Non-destructive Testing (Ultrasonic, Radiographic): Confirming internal structural integrity and defect-free status.
ISO 9001 Documentation and Traceability: Maintaining detailed production records is essential for safety audits and traceability.
Industry Applications
Braking systems and components.
Airbag and seatbelt mechanisms.
Steering and suspension safety parts.
