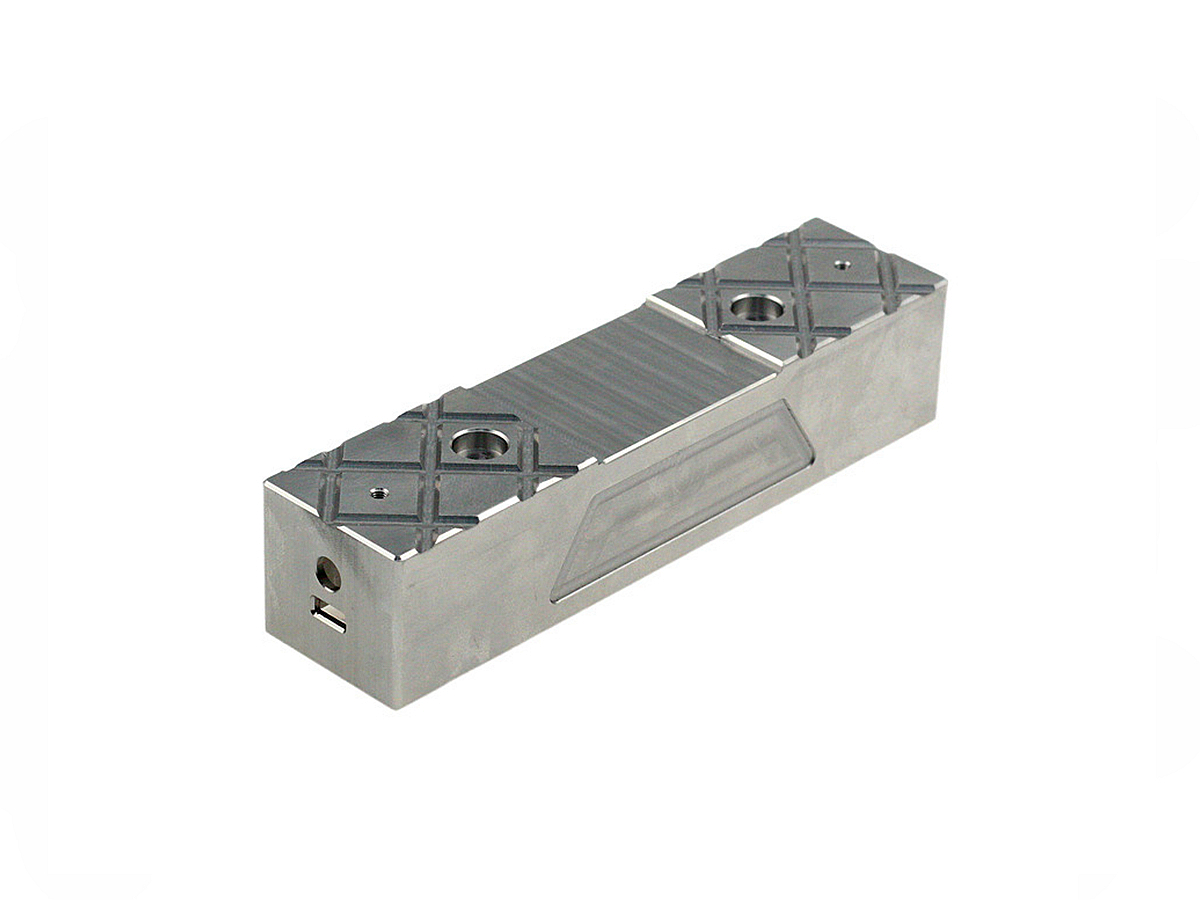

Custom CNC Machined Components for Heavy-Duty Farming Machinery
Introduction to CNC Machined Heavy-Duty Farming Components
Heavy-duty farming machinery operates under demanding conditions, requiring exceptionally robust, precise, and reliable components. Custom CNC machining delivers precision parts such as axle assemblies, gearbox components, hydraulic cylinders, linkage pins, bearing housings, and custom brackets. Materials commonly selected include alloy steels (4140, 4340), stainless steels (SUS304, SUS316), high-strength aluminum alloys (7075-T6), and engineering plastics (UHMW, nylon), chosen specifically for their mechanical strength, corrosion resistance, and durability.
Professional CNC machining services ensure that farming equipment manufacturers receive components that significantly enhance machine reliability, efficiency, and lifespan in harsh agricultural environments.
Material Performance Comparison for Farming Machinery Components
Material | Tensile Strength (MPa) | Density (g/cm³) | Corrosion Resistance | Typical Applications | Advantage |
|---|---|---|---|---|---|
745-1080 | 7.85 | Good | Axle shafts, gearbox gears | High strength, fatigue resistance | |
655-1000 | 7.85 | Good | Hydraulic cylinder rods, pins | Toughness, impact resistance | |
515-620 | 8.00 | Excellent | Hydraulic fittings, bushings | Superior corrosion resistance | |
40-48 | 0.94 | Excellent | Wear plates, bushings | Excellent abrasion resistance |
Material Selection Strategy for CNC Machined Farming Components
Choosing suitable materials for heavy-duty farming components involves considering strength, wear performance, corrosion resistance, and durability:
Alloy Steel 4340 provides exceptional tensile strength (up to 1080 MPa) and fatigue resistance. It is ideal for critical load-bearing components like axle shafts and gearbox gears that must withstand repeated heavy loads.
Alloy Steel 4140 offers excellent toughness and impact resistance (strength up to 1000 MPa), and it is perfectly suited for parts subject to dynamic stresses, such as hydraulic cylinder rods and linkage pins.
Stainless Steel SUS316 is preferred for components frequently exposed to moisture, fertilizers, or other corrosive substances, providing outstanding corrosion resistance, durability, and reliability in harsh farming conditions.
UHMW Plastic is selected for its excellent abrasion resistance and low friction properties, making it ideal for bushings, guides, and wear plates in high-wear agricultural applications.
CNC Machining Processes for Heavy-Duty Components
CNC Machining Process | Dimensional Accuracy (mm) | Surface Roughness (Ra μm) | Typical Applications | Key Advantages |
|---|---|---|---|---|
±0.01-0.02 | 0.8-1.6 | Custom brackets, bearing housings | High versatility, accuracy | |
±0.005-0.01 | 0.4-1.2 | Hydraulic cylinder rods, shafts | Excellent rotational precision | |
±0.005-0.01 | 0.4-0.8 | Complex gearbox components | Complex geometries, fewer setups | |
±0.01-0.02 | 0.8-3.2 | Mounting points, precise fittings | Efficient hole positioning |
CNC Process Selection Strategy for Farming Machinery Parts
Proper CNC machining methods ensure heavy-duty farming components meet demanding precision and strength requirements:
CNC Milling provides versatile machining capability with excellent accuracy (±0.01-0.02 mm), perfect for custom brackets, housings, and structural components.
CNC Turning ensures precise rotational components, such as hydraulic cylinder rods and linkage pins, meet critical tolerances (±0.005 mm) for smooth operation.
Multi-Axis CNC Machining efficiently produces complex, high-precision components like gearbox gears and housings with fewer setups, achieving tolerances of ±0.005 mm and exceptional quality.
CNC Drilling reliably creates precise hole alignments and dimensional accuracy (±0.01-0.02 mm) necessary for mounting and assembly of heavy-duty equipment.
Surface Treatment Performance Comparison for Farming Machinery Components
Treatment Method | Surface Roughness (Ra μm) | Wear Resistance | Corrosion Resistance | Surface Hardness | Typical Applications | Key Features |
|---|---|---|---|---|---|---|
0.4-1.2 | Excellent | Good | HRC 55-62 | Shafts, gearbox gears | Improved fatigue strength | |
0.8-2.0 | Moderate | Excellent (≥1200 hrs ASTM B117) | Moderate | Structural brackets, pins | Strong corrosion protection | |
0.2-0.6 | Excellent | Good (≥500 hrs ASTM B117) | HV 900-1200 | Hydraulic cylinder rods | Superior surface hardness | |
0.6-1.2 | Excellent | Excellent (≥1000 hrs ASTM B117) | Variable | Frames, covers | Durable, attractive finish |
Surface Treatment Selection for CNC Machined Farming Components
Choosing appropriate surface treatments significantly extends component durability:
Heat Treatment enhances hardness (HRC 55-62) and fatigue strength, ideal for high-stress internal components such as gearbox gears and shafts.
Zinc Galvanizing provides robust corrosion resistance (≥1200 hrs ASTM B117), ideal for structural brackets and pins exposed to harsh agricultural environments.
Nitriding significantly improves surface hardness (HV 900-1200) and wear resistance, critical for hydraulic cylinder rods and moving parts under continuous stress.
Powder Coating is ideal for external components requiring durable corrosion protection (≥1000 hrs ASTM B117), offering enhanced aesthetic qualities and long-term performance.
Typical Prototyping Methods for Heavy-Duty Farming Components
CNC Machining Prototyping: Precision prototypes with tolerances of ±0.005 mm to validate designs and functionality.
Rapid Molding Prototyping: Produces robust prototypes quickly for mechanical testing in real-world agricultural conditions.
Metal 3D Printing (Powder Bed Fusion): Quickly fabricates initial prototypes (±0.05 mm accuracy), enabling early performance evaluation.
Quality Assurance Procedures
Coordinate Measuring Machine (CMM) Inspection (ISO 10360-2) for dimensional verification within ±0.005 mm.
Surface Roughness Measurement (ISO 4287) ensuring appropriate surface finishes (Ra ≤1.6 µm).
Mechanical and Fatigue Testing (ASTM E8/E466) to confirm material integrity under operational stresses.
Corrosion Resistance Testing (ASTM B117 Salt Spray) for durability verification.
Non-Destructive Testing (ASTM E1444/E2375) ensuring internal component quality and safety.
ISO 9001 Certified Traceability providing full compliance and manufacturing transparency.
Industry Applications
Tractors and harvesters
Soil preparation machinery
Heavy-duty implements and attachments
