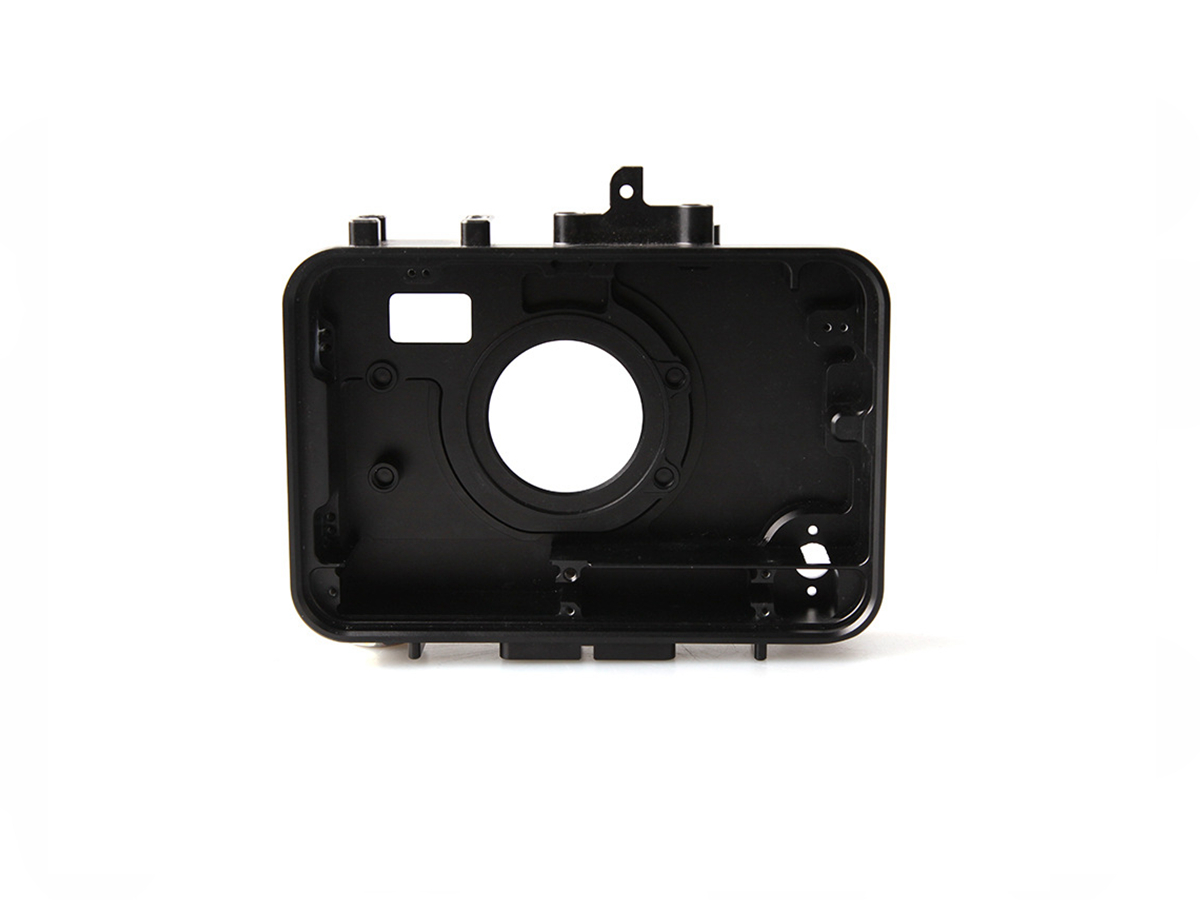

Custom Plastic CNC Machined Parts for Innovative Consumer Devices
Introduction to Plastic CNC Machined Components for Consumer Devices
The consumer electronics and device industries demand innovation, precision, and customized aesthetics to stand out in competitive markets. Custom plastic CNC machining is uniquely suited to crafting intricate components such as wearable devices, smart home systems, handheld electronics, gaming accessories, specialized medical devices, and prototypes for new products. Commonly used plastics for these applications include ABS, polycarbonate (PC), nylon (PA), and acetal (POM), selected for their lightweight properties, durability, machinability, chemical resistance, and versatility in design.
Employing advanced CNC machining services enables designers and manufacturers to efficiently produce complex geometries and precise components, maintaining tight tolerances and exceptional surface finishes.
Material Performance Comparison for Plastic Consumer Device Parts
Material | Tensile Strength (MPa) | Impact Strength (kJ/m²) | Machinability | Chemical Resistance | Typical Applications | Advantages |
|---|---|---|---|---|---|---|
40-50 | 10-30 | Excellent | Good | Handheld devices, electronic housings | Excellent machinability, cost-effective, versatile finishes | |
60-70 | 35-50 | Excellent | Good | Transparent covers, protective components | High impact resistance, excellent optical clarity | |
70-90 | 20-40 | Excellent | Excellent | Gears, wearable device parts | Superior strength, wear resistance | |
65-75 | 10-20 | Excellent | Excellent | Precision mechanical components, connectors | Low friction, excellent dimensional stability |
Material Selection Strategy for Custom Plastic Consumer Device Components
Selecting optimal plastic materials enhances the precision, durability, and innovation potential of consumer device parts:
ABS (Tensile Strength: 40-50 MPa) offers excellent machinability and surface finishing options, making it ideal for custom housings, handheld gadgets, and electronic devices requiring complex geometries, cost efficiency, and attractive aesthetic features.
Polycarbonate (PC) (Impact Strength: 35-50 kJ/m²) provides superior impact resistance and optical clarity, essential for transparent or translucent components such as protective screens, optical lenses, and durable outer covers, where precise detailing and toughness are crucial.
Nylon (PA) (Tensile Strength: 70-90 MPa, Impact Strength: 20-40 kJ/m²) is preferred for high-strength and wear-resistant applications like precision gears, hinges, and mechanical components within wearable devices, ensuring reliable performance under repetitive mechanical stress.
Acetal (POM) (Tensile Strength: 65-75 MPa) features excellent dimensional stability, low moisture absorption, and low friction properties, perfectly suited for precision mechanical connectors, intricate slider mechanisms, and moving parts requiring accurate tolerances and prolonged operational reliability.
CNC Machining Processes for Plastic Consumer Device Components
CNC Machining Process | Dimensional Accuracy (mm) | Surface Roughness (Ra μm) | Typical Applications | Key Advantages |
|---|---|---|---|---|
±0.02 | 1.6-3.2 | Flat panels, basic housings | Cost-effective, suitable for simpler geometries | |
±0.01 | 0.8-1.6 | Curved housings, ergonomic designs | Improved accuracy, fewer setups | |
±0.005-0.01 | 0.4-1.2 | Cylindrical knobs, connectors | Exceptional rotational accuracy | |
±0.01-0.02 | 0.8-1.6 | Assembly holes, ports | Precise hole positioning, repeatability |
CNC Process Selection Strategy for Innovative Plastic Parts
Selecting appropriate CNC machining processes maximizes both quality and efficiency for custom consumer device components:
3-Axis CNC Milling is effective for flat or simpler parts, providing cost-effective manufacturing of basic housings and panels with tolerances of ±0.02 mm.
4-Axis CNC Milling is optimal for ergonomic and curved designs, significantly reducing machining setups, improving accuracy (±0.01 mm), and maintaining aesthetic appeal.
Precision CNC Turning offers high-accuracy rotational features (±0.005 mm) for precise cylindrical components, knobs, buttons, and connectors used extensively in electronic devices.
Precision CNC Drilling ensures critical assembly holes and ports are precisely located (±0.01 mm), essential for effective assembly and alignment in consumer electronics.
Surface Treatment Performance Comparison for Plastic Consumer Device Parts
Treatment Method | Surface Roughness (Ra μm) | Wear Resistance | Chemical Resistance | Typical Applications | Key Features |
|---|---|---|---|---|---|
0.5-1.5 | Moderate | Good | Device housings, aesthetic surfaces | Colorful finishes, enhanced aesthetics | |
0.2-0.6 | Excellent | Excellent | Wearables, customized housings | High-quality graphics, durable finishes | |
0.1-0.4 | Moderate | Excellent | Transparent PC covers, display surfaces | High transparency, premium finish | |
0.3-0.8 | Superior | Outstanding | Moving parts, sliders | Low friction, enhanced durability |
Surface Treatment Selection for Plastic Consumer Components
Selecting appropriate surface treatments enhances both the aesthetics and functional performance of plastic components:
Painting provides attractive, uniform finishes with surface roughness (Ra 0.5-1.5 µm), excellent for ABS housings, handheld devices, and consumer electronics that require vibrant aesthetics and moderate protection against environmental factors.
In-mold decoration (IMD) delivers detailed graphic resolution with excellent chemical resistance, capable of maintaining surface roughness between 0.2-0.6 µm, ideal for customized wearables, intricate housings, and consumer products requiring long-lasting visuals.
Polishing achieves premium clarity and smoothness (Ra ≤0.4 µm), crucial for transparent polycarbonate components such as display covers, lenses, and optical elements, significantly enhancing the device's perceived value.
Teflon Coating ensures extremely low friction coefficients (as low as 0.05–0.20), outstanding chemical resistance, and superior wear durability. It is highly suitable for precision-engineered mechanical sliders, buttons, and other critical moving parts in consumer devices.
Typical Prototyping Methods for Plastic Consumer Device Components
CNC Machining Prototyping: Provides highly accurate prototypes (±0.005 mm) suitable for detailed design evaluation and functional testing.
Rapid Molding Prototyping: Quickly produces realistic prototypes ideal for market testing and ergonomic evaluation.
Plastic 3D Printing: Enables fast, cost-effective prototyping with accuracy (±0.1 mm) suitable for iterative design refinements.
Quality Assurance Procedures
CMM Inspection (ISO 10360-2 certified): Guarantees tight dimensional tolerances (±0.01 mm) critical for precise device assembly.
Surface Roughness Verification (ISO 4287): Ensures consistent surface finishes meeting Ra values between 0.1-1.6 µm.
Chemical Resistance Testing (ASTM D543): Validates plastic components' resistance to solvents, cleaners, and consumer chemicals.
Visual Inspection and Cosmetic Standards (ISO 2859-1, AQL 1.0): Ensures high-quality aesthetic finishes free from defects.
ISO 9001:2015 Certified Documentation: Provides complete traceability, quality compliance, and meticulous records throughout production.
