Expert CNC Machining of C51000 Phosphor Bronze for Electrical Contacts and Bearings
Introduction
Industries such as industrial equipment, automation, and electrical systems demand materials capable of maintaining optimal electrical conductivity, durability, corrosion resistance, and outstanding wear performance. C51000 Phosphor Bronze is an exceptional material choice for critical electrical contacts, connectors, bearings, and spring components due to its excellent electrical conductivity, fatigue resistance, and superb mechanical properties.
Advanced CNC machining enables precise manufacturing of C51000 Phosphor Bronze components with tight tolerances, intricate detailing, and flawless finishes. Expertly CNC-machined Phosphor Bronze C51000 components significantly enhance the performance, reliability, and longevity of electrical systems and bearing applications.

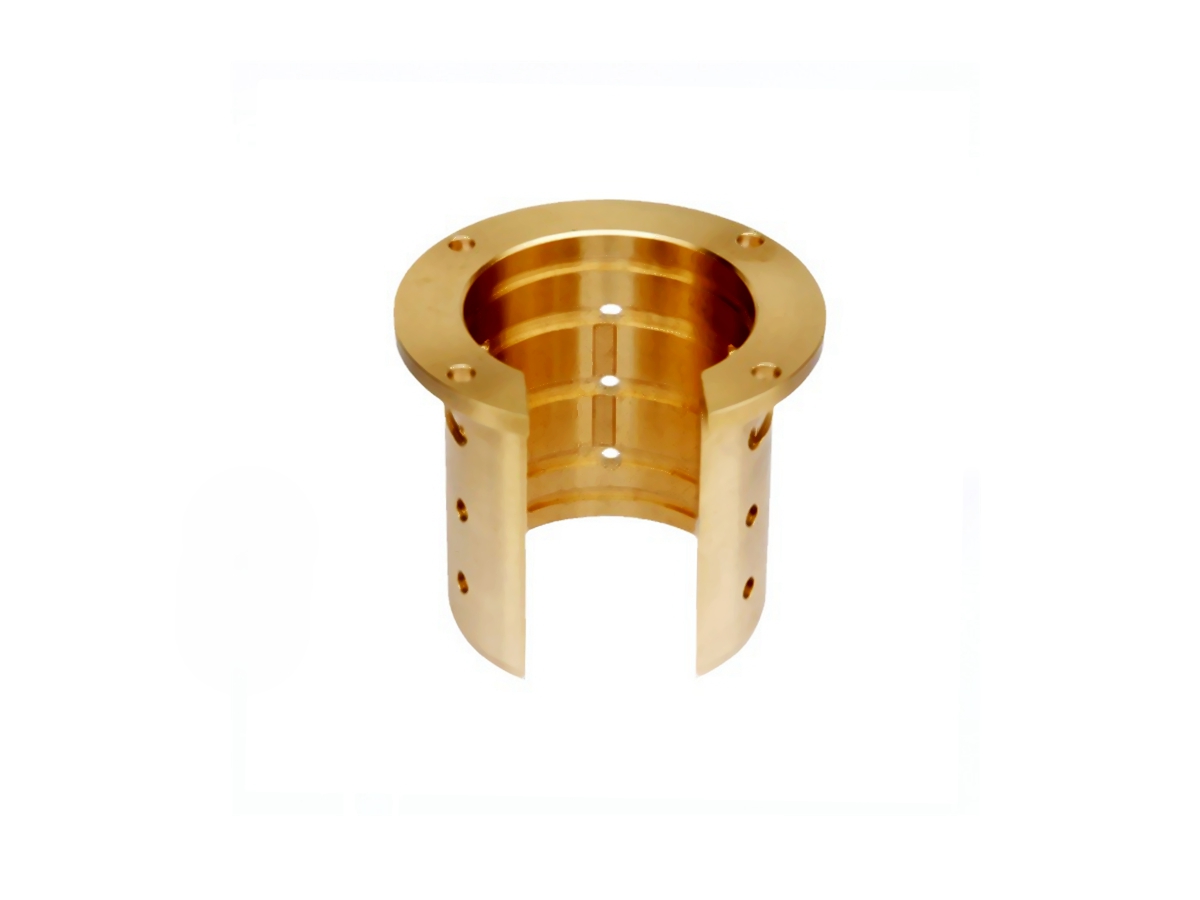

C51000 Phosphor Bronze for Electrical Contacts and Bearings Applications
Material Performance Comparison
Material | Tensile Strength (MPa) | Yield Strength (MPa) | Electrical Conductivity (%IACS) | Typical Applications | Advantage |
|---|---|---|---|---|---|
450-600 | 205-450 | 15-18 | Electrical contacts, precision bearings | Superior fatigue resistance, conductivity, wear resistance | |
500-650 | 250-500 | 13-15 | Electrical springs, contacts | High strength, excellent fatigue life | |
345-400 | 140-200 | 26-28 | Connector pins, fittings | Excellent machinability, conductivity | |
1310-1480 | 965-1105 | 22-25 | Precision connectors, high-load springs | Exceptional strength, high conductivity |
Material Selection Strategy
Selecting C51000 Phosphor Bronze for electrical contacts and bearing applications involves evaluating electrical conductivity, mechanical strength, fatigue resistance, and machinability:
Precision electrical contacts, connectors, and bearings benefit significantly from the high fatigue resistance and stable electrical conductivity of C51000 Phosphor Bronze, maintaining reliability under cyclical loading.
Electrical springs and contacts requiring increased tensile strength and fatigue performance often opt for C52100 Phosphor Bronze, delivering higher mechanical strength.
Connector pins and fittings prioritizing exceptional machinability and higher conductivity commonly select Brass C360, providing efficient production and reliable electrical performance.
Precision connectors and highly loaded electrical springs demanding extraordinary mechanical strength choose Copper C172 Beryllium Copper for its unmatched tensile strength and high conductivity.
CNC Machining Processes
Process Performance Comparison
CNC Machining Process | Dimensional Accuracy (mm) | Surface Roughness (Ra μm) | Typical Applications | Key Advantages |
|---|---|---|---|---|
±0.005-0.02 | 0.4-3.2 | Complex electrical connectors, bearing housings | Versatile, precise, capable of intricate geometries | |
±0.005-0.01 | 0.4-1.6 | Bearings, cylindrical electrical contacts | Precise rotational accuracy, excellent surface finish | |
±0.01-0.02 | 1.6-3.2 | Connector holes, precision fittings | Accurate depth, position control | |
±0.003-0.01 | 0.2-0.6 | High-precision electrical components, micro-bearings | Maximum precision, intricate detailing |
Process Selection Strategy
Choosing optimal CNC machining methods for Phosphor Bronze C51000 electrical contacts and bearings relies on complexity, dimensional accuracy, and application-specific requirements:
Complex electrical connectors, bearing housings, and specialized parts benefit from CNC Milling Service, which efficiently handles intricate geometries and maintains tight tolerances.
Cylindrical electrical contacts, bearing components, and rotational precision parts require CNC Turning Service to deliver superior surface finishes and dimensional accuracy.
Precise connector holes, fittings, and standard mechanical connections utilize CNC Drilling Service for accurate positioning and depth control, enhancing assembly precision.
Micro-bearings, precision electrical contacts, and miniature connectors demanding ultra-high precision and complex features select Multi-Axis CNC Machining Service to ensure optimal functionality.
Surface Treatment
Surface Treatment Performance
Treatment Method | Corrosion Resistance | Wear Resistance | Electrical Conductivity | Typical Applications | Key Features |
|---|---|---|---|---|---|
Outstanding (>1500 hrs ASTM B117) | Very High (HV500-700) | Excellent | Electrical contacts, bearing surfaces | Enhanced hardness, corrosion resistance | |
Excellent (≥1000 hrs ASTM B117) | Moderate | Good | Electrical connectors, bearing housings | Surface cleanliness, corrosion control | |
Excellent (≥1000 hrs ASTM B117) | High | Excellent | Precision connectors, bearings | Ultra-smooth finish, improved electrical performance | |
Superior (>1000 hrs ASTM B117) | Very High (HV1500-2500) | Good | High-wear bearing components | Exceptional wear resistance, friction reduction |
Surface Treatment Selection
Optimal surface treatments for Phosphor Bronze C51000 components involve careful evaluation of wear resistance, corrosion resistance, and electrical conductivity:
Electrical contacts and bearing surfaces requiring enhanced corrosion protection, wear resistance, and conductivity select Electroplating, ensuring durability and performance.
Electrical connectors and bearing housings benefit from Passivation, offering superior surface cleanliness, corrosion protection, and overall longevity.
Precision electrical connectors and bearings requiring smooth finishes, superior electrical performance, and minimal contamination risks choose Electropolishing.
Bearing components and high-wear electrical systems needing superior durability and friction reduction, and PVD coating is preferred to improve operational life significantly.
Quality Control
Quality Control Procedures
Dimensional verification using Coordinate Measuring Machines (CMM) and precision optical inspection.
Surface roughness measurements were performed with profilometers.
Mechanical property assessments (tensile, yield, fatigue) adhering to ASTM standards.
Electrical conductivity tests verifying adherence to specification.
Corrosion resistance verification through ASTM B117 salt spray testing.
Detailed documentation is compliant with ISO 9001 and relevant industry-specific quality standards.
Industry Applications
Electrical and Bearing Component Applications
High-performance electrical connectors and contacts.
Precision bearings and bearing housings.
Industrial and automation electrical systems.
Precision spring contacts and switches.
