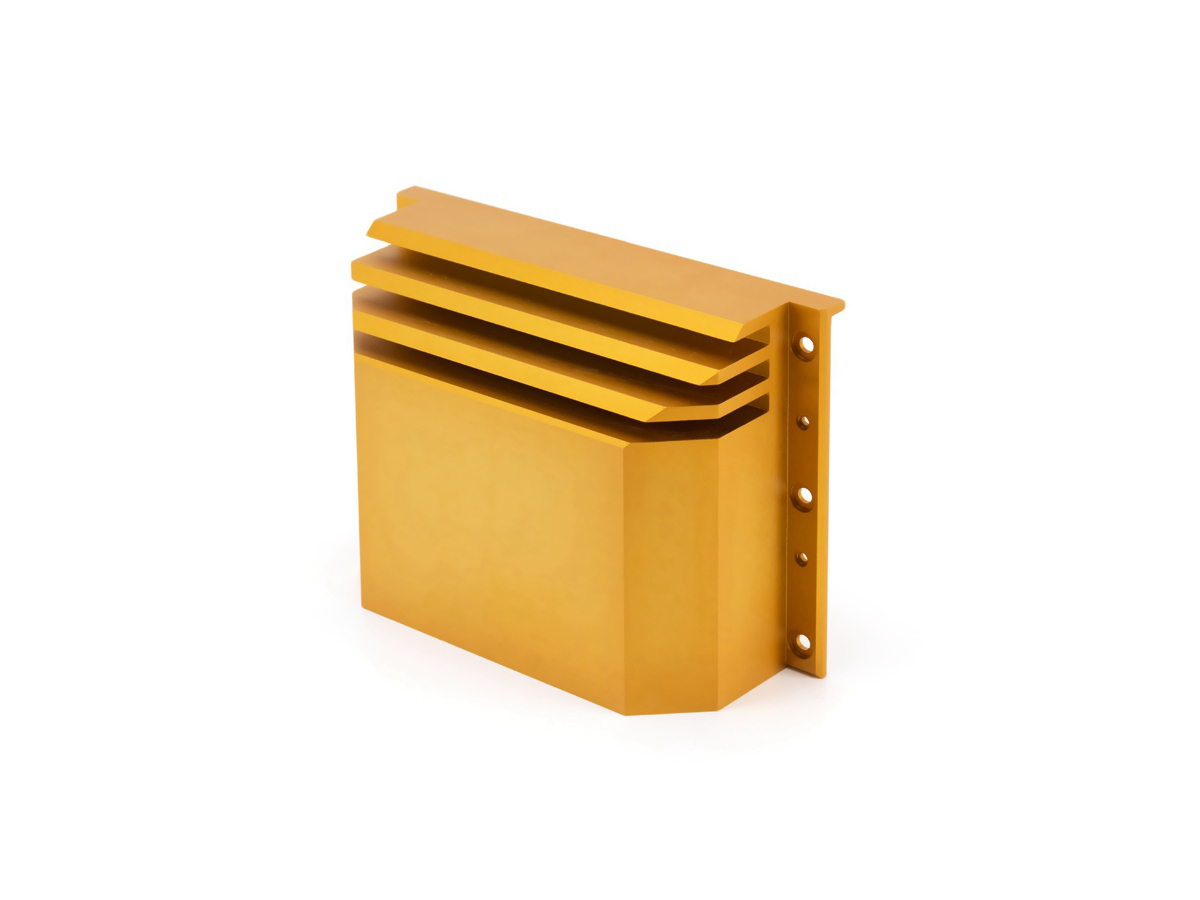

Exploring the Benefits of Aluminum 6061 for High-Performance Automotive CNC Parts
Introduction
The automotive industry continuously seeks lightweight yet durable materials that can enhance vehicle performance, fuel efficiency, and reliability. Aluminum 6061 is a versatile alloy offering excellent machinability, strong corrosion resistance, impressive strength-to-weight ratio, and weldability. These attributes make Aluminum 6061 an ideal choice for producing high-performance automotive components, including engine housings, suspension parts, chassis brackets, and custom automotive accessories.
Using advanced CNC machining, manufacturers can precisely fabricate complex Aluminum 6061 automotive parts to strict tolerances. CNC machining ensures dimensional accuracy, exceptional surface finishes, and intricate designs, significantly improving automotive component quality, reliability, and overall vehicle performance.
Aluminum 6061 for Automotive Applications
Material Performance Comparison
Material | Tensile Strength (MPa) | Yield Strength (MPa) | Density (g/cm³) | Typical Applications | Advantage |
|---|---|---|---|---|---|
310 | 276 | 2.70 | Engine mounts, suspension components | High machinability, corrosion resistance | |
570 | 505 | 2.81 | Structural brackets, racing parts | Superior strength-to-weight, fatigue resistance | |
470 | 325 | 2.78 | Brake components, fittings | Good fatigue resistance, high strength | |
228 | 193 | 2.68 | Fuel tanks, body panels | Excellent corrosion resistance, good formability |
Material Selection Strategy
Choosing the right automotive alloy involves evaluating performance requirements, weight savings, and specific application conditions:
Engine mounts, suspension arms, and chassis components requiring moderate strength (up to 310 MPa tensile strength), high machinability, and excellent corrosion resistance benefit significantly from Aluminum 6061-T6, enhancing vehicle reliability and handling.
High-performance structural brackets, racing components, and critical parts demanding extreme tensile strength (up to 570 MPa) and exceptional fatigue resistance prefer Aluminum 7075-T6, offering unparalleled durability under intense operating conditions.
Brake components, precision fittings, and highly stressed parts needing superior fatigue properties and higher tensile strength (470 MPa) typically select Aluminum 2024, ensuring optimal performance in demanding automotive environments.
Fuel tanks, body panels, and non-load-bearing components requiring excellent corrosion resistance, good formability, and moderate strength (228 MPa tensile strength) utilize Aluminum 5052, providing long-term durability and aesthetic appeal.
CNC Machining Processes
Process Performance Comparison
CNC Machining Technology | Dimensional Accuracy (mm) | Surface Roughness (Ra μm) | Typical Applications | Key Advantages |
|---|---|---|---|---|
±0.02 | 1.6-3.2 | Basic brackets, simple mounts | Cost-effective, reliable accuracy | |
±0.015 | 0.8-1.6 | Rotational parts, custom fittings | Improved precision, fewer setups | |
±0.005 | 0.4-0.8 | Complex engine housings, intricate suspension parts | High precision, excellent finish quality | |
±0.003-0.01 | 0.2-0.6 | Precision automotive sensors, intricate custom parts | Maximum accuracy, complex geometries |
Process Selection Strategy
Selecting the optimal CNC machining approach for Aluminum 6061 automotive parts depends on complexity, precision requirements, and functional goals:
Simple brackets, basic mounts, and general automotive components requiring moderate accuracy (±0.02 mm) economically utilize 3 Axis CNC Milling, offering consistent and affordable production quality.
Rotational components, customized fittings, and moderately complex suspension parts requiring improved precision (±0.015 mm) benefit from 4 Axis CNC Milling, reducing machining setups and enhancing dimensional accuracy.
Complex engine housings, advanced suspension systems, and intricate automotive components needing stringent tolerances (±0.005 mm) and superior surface finishes (Ra ≤0.8 μm) significantly benefit from 5 Axis CNC Milling, maximizing component reliability and performance.
Precision automotive sensors, advanced electronics housings, and detailed custom parts requiring extreme accuracy (±0.003 mm) and intricate geometry employ Precision Multi-Axis CNC Machining, ensuring the highest performance standards.
Surface Treatment
Surface Treatment Performance
Treatment Method | Corrosion Resistance | Wear Resistance | Max Operating Temp (°C) | Typical Applications | Key Features |
|---|---|---|---|---|---|
Excellent (≥800 hrs ASTM B117) | Moderate-High | Up to 400 | Engine housings, chassis components | Durable, corrosion-resistant surface | |
Excellent (≥1000 hrs ASTM B117) | Moderate | Up to 150 | Internal brackets, mounts | Strong corrosion protection, paint adhesion | |
Excellent (≥1000 hrs ASTM B117) | High | Up to 200 | External automotive parts, accessories | Durable, aesthetic appeal | |
Excellent (~900 hrs ASTM B117) | Moderate | Up to 300 | Precision automotive electronics | Smooth, mirror-like finish |
Surface Treatment Selection
Surface treatments for Aluminum 6061 automotive components are chosen based on corrosion protection, aesthetic goals, and operational durability:
Engine components, suspension systems, and chassis parts benefit greatly from Anodizing, offering durable corrosion protection, enhanced lifespan, and improved appearance.
For internal automotive brackets, mounts, and fittings needing robust corrosion resistance and superior paint adhesion, chemical conversion coating (alodine) is chosen, significantly improving component longevity.
External automotive parts, accessories, and body components requiring aesthetic durability and resistance to environmental elements utilize Powder Coating, providing enhanced visual appeal and protective performance.
High-end automotive electronics, precision sensors, and intricate custom components demanding smooth, friction-reducing finishes select Electropolishing, enhancing both aesthetics and functional efficiency.
Quality Control
Quality Control Procedures
Precise dimensional inspections with Coordinate Measuring Machines (CMM) and optical comparators.
Surface roughness measurements using advanced profilometers.
Mechanical property tests (tensile, yield, fatigue) following ASTM standards.
Corrosion resistance validation through ASTM B117 (Salt Spray Test).
Non-destructive testing (NDT) techniques, including ultrasonic and X-ray inspections.
Comprehensive documentation adhering to ISO 9001 and automotive industry standards such as IATF 16949.
Industry Applications
Aluminum 6061 Automotive Component Applications
Engine mounts and structural chassis parts.
High-performance suspension components.
Custom automotive brackets and mounts.
Lightweight racing components and aftermarket accessories.
