High-Precision CNC Machined Frames for Advanced Robotics Applications

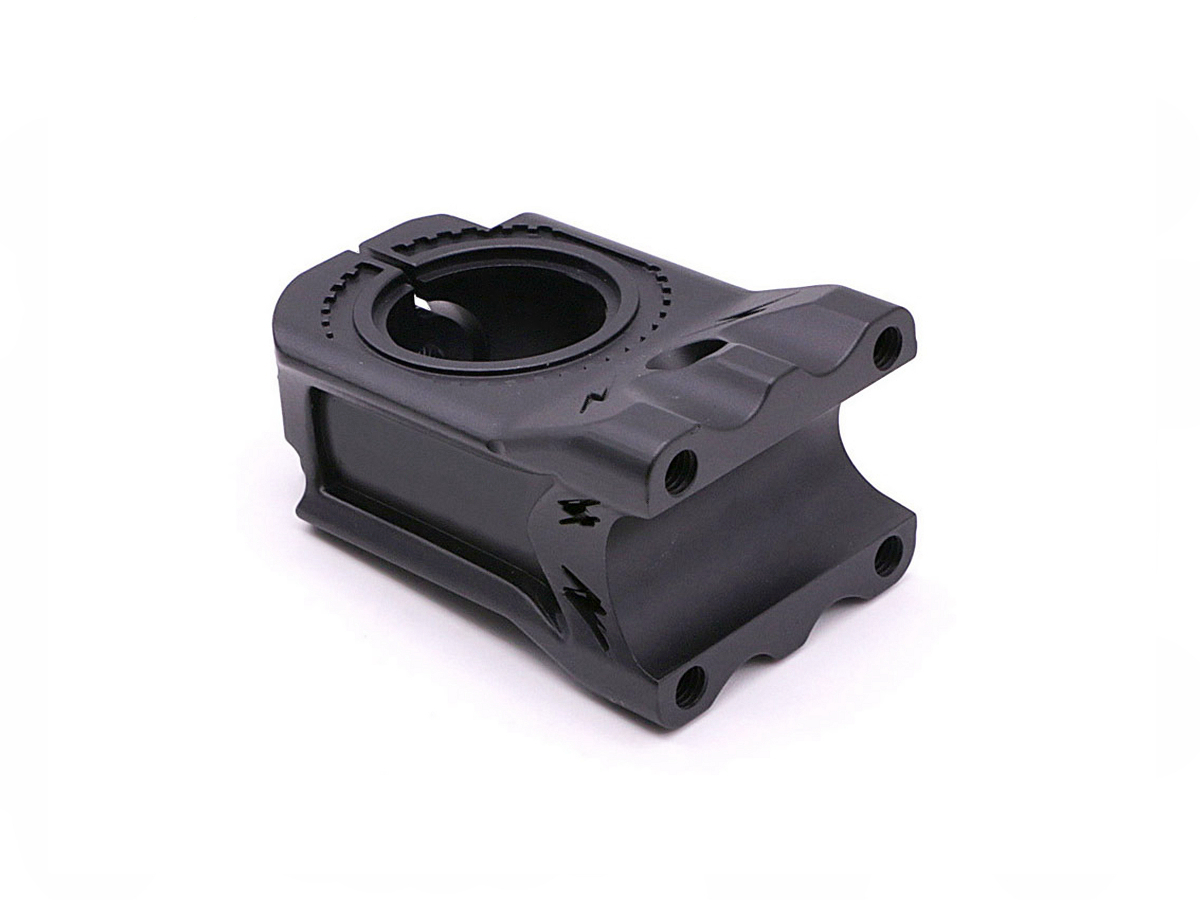

Introduction to CNC Machined Frames for Robotics
Advanced robotics applications demand components that provide strength and durability and meet strict requirements for precision, repeatability, and operational efficiency. One of the most critical components in robotics is the frame, which is the backbone for the entire system. A high-precision CNC machined frame ensures the correct alignment, stability, and performance of robotic arms, legs, or actuators, even in the most demanding environments.
Custom CNC machining services allow manufacturers to create highly accurate frames using materials such as aluminum alloys, titanium, and stainless steel. These materials are chosen for their strength, lightweight, and ability to withstand harsh conditions. Manufacturers ensure that every frame is produced with the tightest tolerances and best possible surface finishes by employing state-of-the-art CNC machining processes.
Material Performance Comparison for CNC Machined Frames
Material | Tensile Strength (MPa) | Density (g/cm³) | Corrosion Resistance | Typical Applications | Advantage |
|---|---|---|---|---|---|
540-570 | 2.8 | Good | Robotic frames, structural parts | High strength-to-weight ratio | |
950-1100 | 4.43 | Excellent | High-load arms, precision joints | Excellent strength, corrosion resistance | |
515-620 | 8.0 | Excellent | Actuators, frames in harsh environments | Superior corrosion resistance | |
90-100 | 1.32 | Outstanding | Insulating parts, bushings, structural components | Excellent wear resistance, high thermal stability |
Material Selection Strategy for CNC Machined Frames
The right material selection is key to ensuring the longevity, durability, and performance of CNC machined frames used in advanced robotics:
Aluminum 7075-T6 is ideal for lightweight yet strong frames, offering high tensile strength (570 MPa) and a favorable strength-to-weight ratio. It is widely used in robotic arms and structural components.
Titanium Ti-6Al-4V is selected for high-load robotic frames that require superior strength (up to 1100 MPa) and excellent corrosion resistance, especially in environments with exposure to moisture or chemicals.
Stainless Steel SUS316 provides outstanding corrosion resistance and durability, making it suitable for robotic frames in highly corrosive or hygienic applications, with a tensile strength range of 515–620 MPa.
PEEK is ideal for high-temperature and wear-resistant applications, offering excellent mechanical properties (strength up to 100 MPa) and resistance to high thermal stress, making it an excellent choice for insulating or structural parts that must withstand extreme environments.
CNC Machining Processes for High-Precision Frames
CNC Machining Process | Dimensional Accuracy (mm) | Surface Roughness (Ra μm) | Typical Applications | Key Advantages |
|---|---|---|---|---|
±0.005-0.01 | 0.2-0.8 | Complex robotic frames, joints | Exceptional precision, intricate shapes | |
±0.005-0.01 | 0.4-1.2 | Rotational parts, shafts | High rotational accuracy, smooth finishes | |
±0.005-0.02 | 0.4-1.0 | Detailed frame components, linkages | Complex geometries, high precision | |
±0.002-0.005 | 0.1-0.4 | High-precision frames, bearing surfaces | Ultra-tight tolerances, smooth finishes |
CNC Process Selection Strategy for Robotics Frame Components
Choosing the right CNC machining process for frame components in robotics is crucial for achieving exact dimensions, precision, and operational reliability:
5 Axis CNC Milling is essential for machining complex robotic frames with intricate geometries and tight tolerances (±0.005 mm). It provides excellent surface finishes (Ra ≤0.8 µm) and is ideal for highly detailed structures.
Precision CNC Turning is used for parts like shafts, pins, and cylindrical elements that require precise rotational accuracy (±0.005 mm). It offers superior surface finishes and functionality for dynamic parts in robotic frames.
Precision Multi-Axis Machining is employed for complex frame components that require precise control over multiple axes, ensuring tight tolerances (±0.005–0.02 mm) and high accuracy for parts with more intricate features.
CNC Grinding is utilized for frame components requiring ultra-tight tolerances (±0.002–0.005 mm) and superior smoothness (Ra ≤0.4 µm), ensuring parts fit together seamlessly and perform optimally.
Surface Treatment Performance Comparison for Robotics Frame Components
Treatment Method | Surface Roughness (Ra μm) | Wear Resistance | Corrosion Resistance | Surface Hardness | Typical Applications | Key Features |
|---|---|---|---|---|---|---|
0.4-1.0 | Excellent | Excellent (ASTM B117 >1000 hrs) | HV 400-600 | Aluminum frames | Durable protection, wear resistance | |
0.8-1.6 | Moderate | Excellent (ASTM B117 >1000 hrs) | Unchanged | Stainless steel components | Corrosion resistance, hygienic | |
0.2-0.5 | Exceptional | Excellent (ASTM B117 >1000 hrs) | HV 1500-2500 | High-wear joints, frames | Low friction, high hardness | |
0.2-0.8 | Good | Excellent (ASTM B117 >500 hrs) | Unchanged | Medical robotics, precision parts | Smooth finish, enhanced durability |
Surface Treatment Selection for Robotics Frame Components
Surface treatments are crucial for extending the lifespan and ensuring the optimal performance of CNC machined frame components:
Hard Anodizing is ideal for aluminum robotic frames, providing excellent corrosion protection (ASTM B117 >1000 hrs), enhanced surface hardness (HV 400-600), and improved wear resistance.
Passivation is used for stainless steel robotic frames, offering superior corrosion resistance while maintaining the dimensional integrity of the parts.
PVD Coating is employed for high-wear components, such as joints and high-load frame elements, offering superior hardness (HV 1500-2500) and low friction, thereby enhancing the longevity and performance of the components.
Electropolishing is perfect for medical robotics applications, providing a smooth finish (Ra ≤0.8 µm) and improved corrosion resistance, ensuring the parts are easy to clean and maintain.
Typical Prototyping Methods for Robotic Frame Components
CNC Machining Prototyping: Ideal for producing high-precision prototypes with dimensional tolerances as tight as ±0.005 mm. This method allows for quickly verifying part fit, function, and performance.
Metal 3D Printing (Powder Bed Fusion): Provides rapid production of complex metal prototypes with typical accuracy within ±0.05 mm, allowing for quick design iteration and functional testing of frame components.
Quality Assurance Procedures
Precision Dimensional Inspection (CMM): Verification of dimensional tolerances within ±0.005 mm.
Surface Roughness Verification (Profilometer): Ensuring compliance with specified surface finishes.
Mechanical and Fatigue Testing (ASTM E8, E466): Evaluating strength and endurance.
Non-destructive Testing (Ultrasonic, Radiographic): Structural integrity validation.
ISO 9001 Documentation: Complete traceability and quality documentation.
Industry Applications
High-precision robotic arms and end-effectors.
Aerospace robotics systems.
Medical and surgical robotic components.
