High-Precision CNC Machining for Biocompatible Medical Components

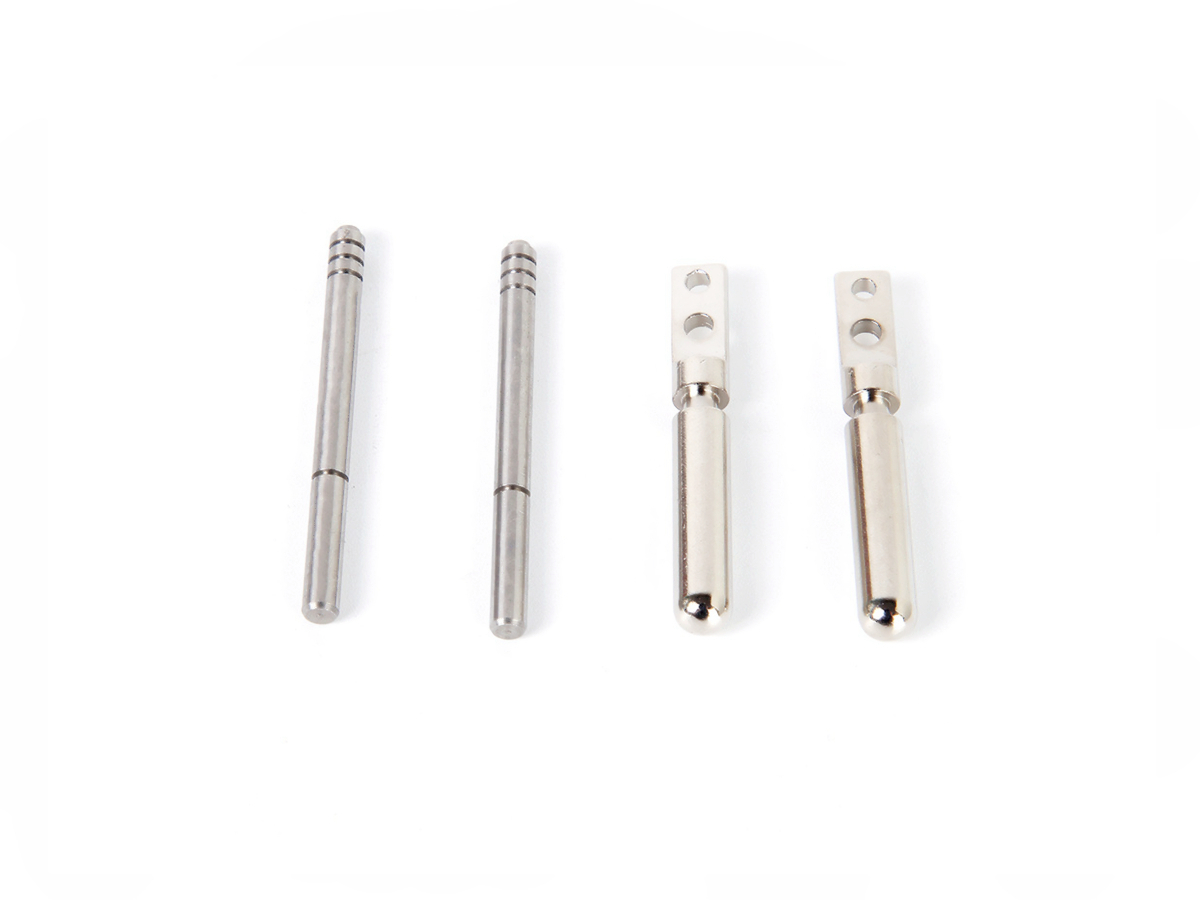

Introduction to CNC Machined Biocompatible Components
Biocompatible medical components require precise manufacturing and strict compliance with medical industry standards to ensure patient safety and device reliability. Advanced CNC machining enables the precise fabrication of intricate biocompatible parts, including implants, surgical instruments, prosthetic components, and medical device housings. Preferred biocompatible materials include Titanium alloys (Ti-6Al-4V ELI, Grade 23), medical-grade stainless steels (SUS316L), engineering plastics (PEEK), and cobalt-chromium alloys, each selected for their proven biocompatibility, mechanical performance, sterilization compatibility, and corrosion resistance.
Leveraging professional CNC machining services, manufacturers consistently achieve micron-level precision, ensuring compliance with ISO 13485 and biocompatibility standards (ISO 10993).
Material Performance Comparison for Biocompatible Medical Components
Material | Tensile Strength (MPa) | Yield Strength (MPa) | Biocompatibility (ISO 10993) | Corrosion Resistance (ASTM F2129) | Typical Applications | Advantages |
|---|---|---|---|---|---|---|
860-950 | 795-880 | Excellent | Superior (>1300 mV breakdown potential) | Orthopedic implants, spinal screws | Outstanding biocompatibility, fatigue resistance | |
480-620 | 170-310 | Excellent | Outstanding (>1000 mV breakdown potential) | Surgical tools, fixation plates | Exceptional corrosion resistance, ease of sterilization | |
90-100 | N/A | Excellent | Excellent (chemically inert) | Spinal implants, surgical handles | Radiolucent, chemically inert | |
Cobalt-Chrome Alloy (CoCr) | 900-1200 | 500-800 | Excellent | Outstanding (>1200 mV breakdown potential) | Joint replacements, dental prosthetics | High wear resistance, superior strength |
Material Selection Strategy for CNC Machined Biocompatible Components
Selecting optimal biocompatible materials ensures safety, compliance, and functionality in medical applications:
Ti-6Al-4V ELI (Grade 23) is ideal for load-bearing implants and prosthetics requiring superior biocompatibility, corrosion resistance, and fatigue strength (ISO 5832-3 compliant).
Stainless Steel SUS316L excels in surgical tools and implant fixation devices, offering exceptional corrosion resistance, sterilization compatibility, and mechanical durability.
PEEK Plastic is selected for its chemical inertness, radiolucency, and superior biocompatibility, particularly suitable for imaging-compatible implants and surgical instrument components.
Cobalt-Chrome Alloy offers high mechanical strength, exceptional wear resistance, and excellent biocompatibility, optimal for orthopedic implants and dental prosthetics subjected to cyclic loading and frictional wear.
CNC Machining Processes for Biocompatible Medical Components
CNC Machining Process | Dimensional Accuracy (mm) | Surface Roughness (Ra μm) | Typical Applications | Key Advantages |
|---|---|---|---|---|
±0.005 | 0.2-0.8 | Complex implants, surgical components | Intricate geometry precision | |
±0.005-0.01 | 0.4-1.2 | Surgical pins, cylindrical parts | High rotational accuracy | |
±0.002-0.005 | 0.1-0.4 | Prosthetic joints, surgical edges | Ultra-precise surface finishes | |
±0.01-0.02 | 0.8-1.6 | Implant fixation holes, assembly components | Precise hole placement |
CNC Process Selection Strategy for Biocompatible Components
Selecting appropriate CNC machining processes ensures precise manufacturing, patient safety, and device reliability:
5-Axis CNC Milling precisely produces highly intricate geometries and critical surface features (±0.005 mm) essential for orthopedic and spinal implants.
CNC Turning achieves accurate rotational geometry (±0.005 mm), vital for precise cylindrical surgical components, fixation pins, and screws.
CNC Grinding provides ultra-tight tolerances (±0.002 mm) and exceptionally smooth finishes, necessary for articulating prosthetic components and surgical cutting edges.
Precision CNC Drilling delivers precise, consistent hole placement (±0.01 mm) crucial for reliable implant fixation and accurate assembly.
Surface Treatment Performance Comparison for Biocompatible Components
Treatment Method | Surface Roughness (Ra μm) | Biocompatibility (ISO 10993) | Corrosion Resistance (ASTM F2129) | Surface Hardness | Typical Applications | Key Features |
|---|---|---|---|---|---|---|
0.4-1.0 | Excellent | Outstanding (>1200 mV breakdown potential) | N/A | Stainless implants, surgical tools | Enhanced corrosion resistance | |
0.4-1.0 | Excellent | Excellent (>1000 mV breakdown potential) | HV 400-600 | Titanium implants | Durable oxide layers, biocompatible surfaces | |
0.1-0.4 | Excellent | Excellent (>1300 mV breakdown potential) | N/A | Surgical instruments, prosthetics | Ultra-smooth, contamination-free surfaces | |
0.1-0.3 | Excellent | Superior (>1500 mV breakdown potential) | HV 1500-2500 | Prosthetic joints, surgical blades | Enhanced wear resistance |
Surface Treatment Selection for Biocompatible Medical Components
Proper surface treatments ensure biocompatibility, safety, and improved functionality:
Passivation significantly improves corrosion resistance, making it essential for stainless steel surgical components and implants requiring repeated sterilization.
Anodizing creates biocompatible oxide layers (HV 400-600), enhancing corrosion resistance, which is ideal for titanium implants in long-term physiological exposure.
Electropolishing achieves ultra-smooth surfaces (Ra ≤0.4 µm), which is critical for minimizing bacterial adhesion and enhancing the cleanability of surgical instruments and implants.
PVD Coating enhances surface hardness (HV 1500-2500) and significantly improves wear resistance, beneficial for joint replacements and cutting instruments subjected to friction and wear.
Typical Prototyping Methods for Biocompatible Components
CNC Machining Prototyping: Provides accurate functional prototypes (±0.005 mm) for clinical trials and regulatory approval.
Rapid Molding Prototyping: Enables realistic prototypes for thorough biological and mechanical evaluations.
Metal 3D Printing (Powder Bed Fusion): Facilitates rapid iterations (±0.05 mm accuracy), enabling swift validation and optimization of complex biocompatible designs.
Quality Assurance Procedures
CMM Inspection (ISO 10360-2): Ensures dimensional accuracy within ±0.005 mm.
Biocompatibility Testing (ISO 10993): Validates material safety for clinical use.
Surface Roughness Testing (ISO 4287): Confirms compliance with medical standards.
Non-Destructive Testing (ASTM E1444, ASTM F601): Verifies component integrity without compromising biocompatibility.
ISO 13485 Certified Documentation: Ensures regulatory compliance, material traceability, and stringent quality management.
