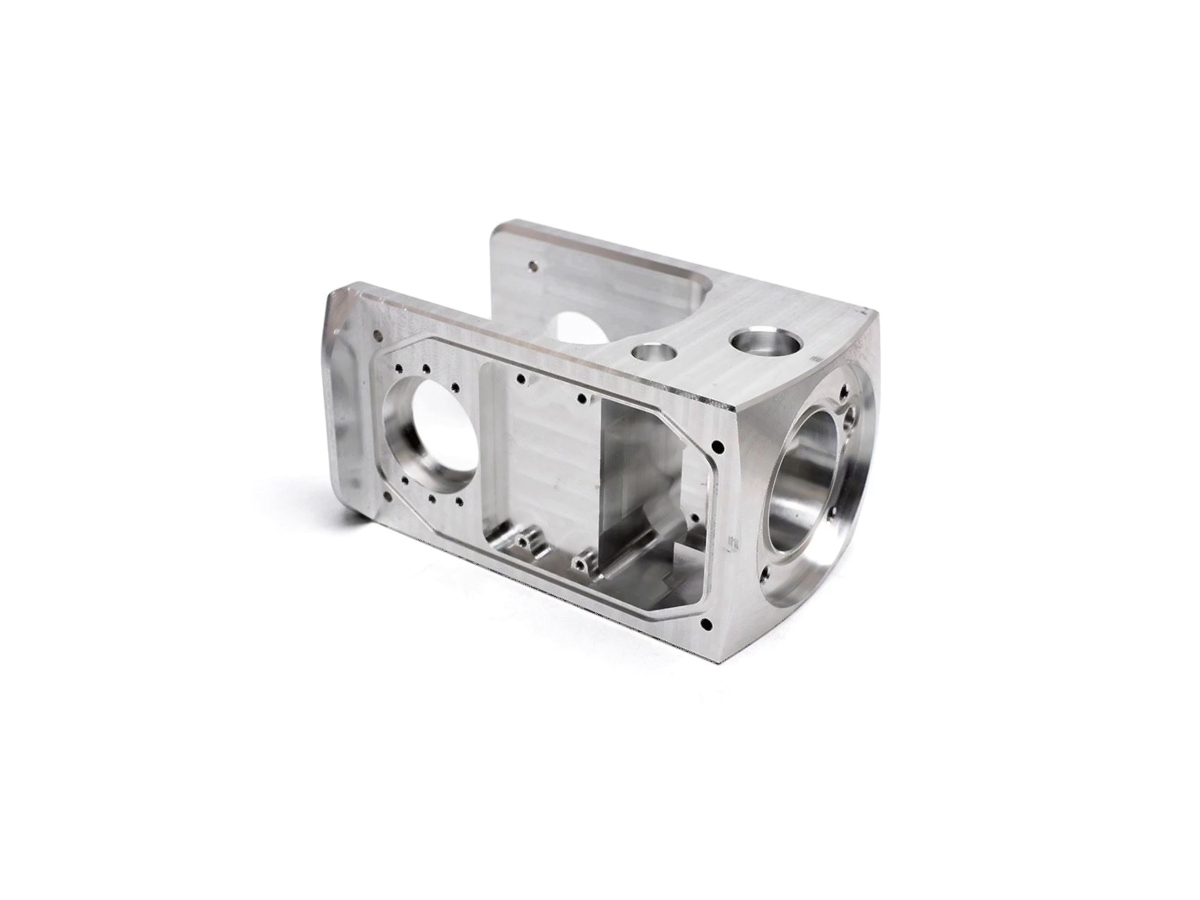

Low-Volume CNC Machining of Stainless Steel: Delivering Corrosion-Resistant, Structural Parts
Introduction
Low-volume CNC machining of stainless steel provides manufacturers with an efficient solution for producing high-performance, corrosion-resistant structural components. Stainless steel alloys such as 304, 316, and 430 are widely used in aerospace, automotive, medical, and food processing industries due to their outstanding mechanical properties and exceptional corrosion resistance. By utilizing Stainless Steel CNC Machining, manufacturers can produce precise, low-volume parts that meet the strictest performance requirements and stand up to challenging environmental conditions.
Low-volume CNC machining offers fast prototyping and production of stainless steel components, enabling companies to test designs, make adjustments, and quickly bring products to market. This Low-Volume CNC Machining capability supports rapid iteration, shortens development cycles, and minimizes waste. It is the ideal solution for industries requiring smaller quantities of high-quality, corrosion-resistant parts.
Stainless Steel Material Properties
Material Performance Comparison Table
Stainless Steel Alloy | Tensile Strength (MPa) | Yield Strength (MPa) | Hardness (HRC) | Density (g/cm³) | Applications | Advantages |
|---|---|---|---|---|---|---|
520–720 | 205–515 | 70–90 | 7.93 | Food processing equipment, medical devices | Excellent corrosion resistance, good formability | |
620–860 | 290–620 | 80–95 | 7.98 | Marine applications, chemical processing | Superior corrosion resistance, high-temperature resistance | |
450–600 | 205–450 | 65–85 | 7.70 | Automotive parts, kitchenware | Good corrosion resistance, magnetic properties | |
860–1000 | 550–890 | 30–35 | 7.80 | Aerospace components, high-stress applications | High strength, excellent fatigue resistance |
Selecting the Right Stainless Steel Alloy for Low-Volume CNC Machining
Selecting the right stainless steel alloy for CNC machining depends on the part's mechanical requirements, exposure to corrosive environments, and the intended application:
304 Stainless Steel: Ideal for parts that require good corrosion resistance and formability, commonly used in food processing, medical equipment, and architectural components.
316 Stainless Steel: Best for components exposed to harsh environments, such as marine applications, chemical processing, and high-temperature applications, due to its superior corrosion resistance and resistance to pitting and crevice corrosion.
430 Stainless Steel: Recommended for parts requiring moderate corrosion resistance and magnetic properties, often used in automotive parts, kitchenware, and appliances.
17-4 PH Stainless Steel: Suitable for aerospace and high-performance mechanical applications where high strength and fatigue resistance are crucial.
CNC Machining Processes for Stainless Steel Parts
CNC Process Comparison Table
CNC Machining Process | Accuracy (mm) | Surface Finish (Ra µm) | Typical Uses | Advantages |
|---|---|---|---|---|
±0.005 | 0.4–1.2 | Aerospace parts, precision structural components | High versatility, excellent for complex shapes | |
±0.005 | 0.4–1.0 | Cylindrical stainless steel parts | Precision for rotational components, consistent results | |
±0.01 | 0.8–3.2 | Holes for fasteners, threaded parts | Fast, precise hole-making | |
±0.003 | 0.2–1.0 | Complex aerospace components, intricate structural parts | High precision, capability to machine complex geometries |
CNC Process Selection Strategy
The selection of the appropriate CNC machining process is determined by the part's complexity, required accuracy, and surface finish:
CNC Milling: Best for machining complex geometries in stainless steel, such as aerospace and automotive structural parts, offering high precision (±0.005 mm) and versatility for intricate designs.
CNC Turning: Ideal for rotational parts, including shafts and tubes, with consistent accuracy (±0.005 mm) and the ability to achieve high surface finishes (Ra ≤1.0 µm).
CNC Drilling: Recommended for creating precise holes and threads in stainless steel components, with high accuracy (±0.01 mm) and quick turnaround times.
Multi-Axis Machining: Suitable for producing complex parts with multi-directional features, offering superior precision (±0.003 mm) and reducing the number of production steps.
Surface Treatments for Stainless Steel Parts
Surface Treatment Comparison Table
Treatment Method | Surface Roughness (Ra µm) | Corrosion Resistance | Max Temp (°C) | Applications | Key Features |
|---|---|---|---|---|---|
≤0.8 | Excellent | 400 | Aerospace, medical devices | Increased corrosion resistance, enhanced surface hardness | |
≤0.4 | Excellent | 250 | Surgical instruments, food processing equipment | Smooth finish, reduced friction, improved corrosion resistance | |
≤1.0 | Superior | 450–600 | Aerospace components, automotive parts | Increased hardness, enhanced wear resistance | |
≤1.0 | Excellent | 250 | Medical devices, food equipment | Improved corrosion resistance, extended lifespan |
Surface Treatment Selection Strategy
Surface treatments improve the durability, wear resistance, and performance of stainless steel parts in demanding applications:
Anodizing: Ideal for stainless steel parts exposed to corrosive environments, providing enhanced corrosion resistance and surface hardness, making it perfect for aerospace and medical applications.
Electropolishing: Best for achieving ultra-smooth surfaces (Ra ≤0.4 µm) on stainless steel, enhancing corrosion resistance, and minimizing friction, commonly used in food processing and surgical tools.
PVD Coating: Suitable for parts requiring increased hardness and wear resistance, such as aerospace components, automotive parts, and cutting tools, providing durability under harsh conditions.
Passivation: Essential for improving corrosion resistance in stainless steel components, particularly for medical and food processing equipment, where hygiene and longevity are critical.
Typical Stainless Steel Rapid Prototyping Methods
Effective prototyping methods for stainless steel components include:
CNC Machining Prototyping: Allows rapid, high-precision prototyping of stainless steel parts with low-volume requirements.
Stainless Steel 3D Printing: Ideal for creating complex, customized stainless steel parts with fast lead times.
Rapid Molding Prototyping: Suitable for producing moderately complex stainless steel parts, enabling quick design validation before mass production.
Quality Assurance Procedures
Dimensional Inspection: ±0.002 mm accuracy (ISO 10360-2).
Material Verification: ASTM A240 for stainless steel alloys.
Surface Finish Assessment: ISO 4287.
Mechanical Testing: ASTM E8 for tensile and yield strength.
Visual Inspection: ISO 2768 standards.
ISO 9001 Quality Management System: Ensuring consistent quality and performance.
Key Applications
Aerospace: Aircraft parts, engine components, structural frames.
Medical Devices: Surgical instruments, implants, medical device casings.
Food Processing: Food contact surfaces and food-grade equipment components.
Automotive: Exhaust systems, high-performance engine parts, chassis components.
