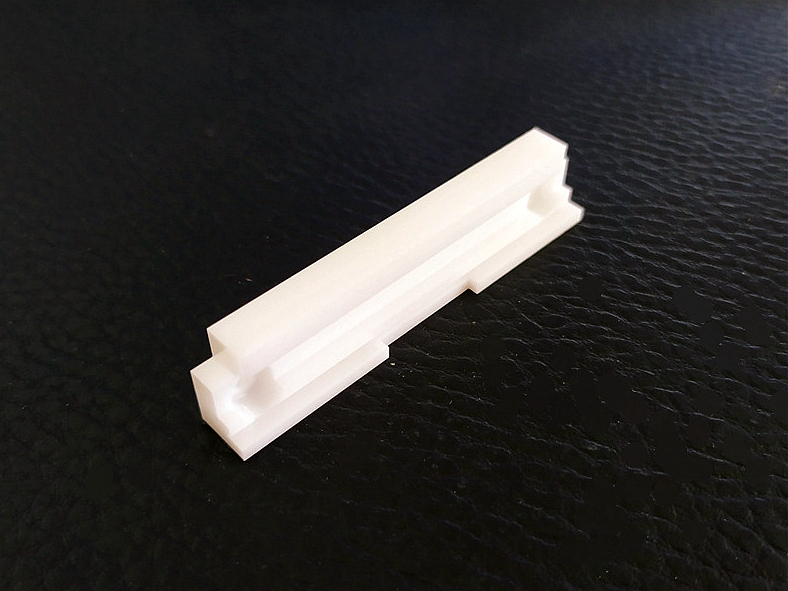

Machining Silicon Nitride (Si3N4) with CNC for Exceptional Strength and Toughness
Introduction
Silicon nitride (Si₃N₄) is a high-performance ceramic known for its exceptional strength, toughness, and thermal stability, making it an ideal material for demanding applications. CNC machining of silicon nitride allows manufacturers to produce parts with precise tolerances (±0.01 mm) and excellent surface finishes (Ra ≤0.4 µm), ensuring reliable and durable components. Silicon nitride CNC machined parts are used extensively in industries such as aerospace, automotive, and industrial equipment, offering solutions that require high strength, excellent wear resistance, and thermal stability.
By utilizing advanced CNC machining services, manufacturers can create high-precision silicon nitride parts for critical applications, including turbine blades, bearings, and components exposed to extreme conditions.
Silicon Nitride Material Properties
Material Performance Comparison Table
Material | Tensile Strength (MPa) | Hardness (HV) | Density (g/cm³) | Fracture Toughness (MPa√m) | Thermal Conductivity (W/m·K) | Typical Applications | Advantages |
|---|---|---|---|---|---|---|---|
900-1000 | 1200-1600 HV | 3.1 | 6-8 MPa√m | 30-40 | Aerospace turbine components, automotive engines, high-performance seals | High strength, excellent fracture toughness, high thermal stability | |
800-1100 | 1200-1400 HV | 6.05 | 5-10 MPa√m | 2.5-3.0 | Biomedical implants, turbine blades | High fracture toughness, high strength | |
350-400 | 1700-2100 HV | 3.9 | 4-5 MPa√m | 25-35 | Electrical insulators, wear-resistant bearings | Exceptional hardness, electrical insulation, high wear resistance |
Silicon Nitride Selection Criteria
When selecting silicon nitride for CNC machining, it’s essential to evaluate its superior mechanical properties such as high tensile strength (up to 1000 MPa) and fracture toughness (6-8 MPa√m), which make it ideal for demanding applications that require both high strength and toughness:
Silicon Nitride (Si₃N₄) is ideal for high-performance applications that demand exceptional mechanical strength, fracture toughness, and thermal stability. It is widely used in aerospace, automotive, and industrial applications requiring parts that can withstand high stress and high temperatures.
Zirconia (ZrO₂) offers high fracture toughness and is more suited for biomedical implants or parts requiring high strength, while Alumina (Al₂O₃) is optimal for applications requiring excellent hardness and wear resistance.
CNC Machining Techniques for Silicon Nitride
CNC Machining Process Comparison
CNC Machining Technology | Dimensional Accuracy (mm) | Surface Roughness (Ra µm) | Typical Applications | Key Advantages |
|---|---|---|---|---|
±0.01 | 0.4-0.8 | Complex geometries, turbine blades | Precision shaping, minimal micro-cracking | |
±0.005 | 0.05-0.2 | Fine finishing for high-precision seals | Ultra-fine surface finish, tight dimensional control | |
±0.01 | 0.8-1.2 | Mounting holes, fluid channels | Accurate hole placement, efficient production | |
±0.005-0.01 | 0.2-0.6 | Intricate parts with multi-dimensional features | Flexibility, complex part production |
CNC Process Selection Strategy
Selecting the appropriate CNC machining method ensures the best performance and precision for silicon nitride components:
CNC Milling is ideal for machining complex geometries and intricate designs of silicon nitride components, including turbine blades and structural parts, with precision and minimal surface defects.
CNC Grinding achieves ultra-fine finishes (Ra ≤0.2 µm), perfect for high-precision applications such as sealing surfaces, bearings, and components that require tight tolerances.
CNC Drilling ensures that accurate hole placement is achieved, which is critical for components such as fluid-carrying parts and those requiring specific mounting features.
Multi-Axis CNC Machining is well-suited for producing intricate silicon nitride components with complex multi-dimensional features, significantly reducing setup time and increasing precision.
Surface Treatments for CNC Silicon Nitride Components
Surface Treatment Comparison
Treatment Method | Hardness (HV) | Corrosion Resistance | Max Operating Temp (°C) | Typical Applications | Key Features |
|---|---|---|---|---|---|
2000-2400 HV | Excellent | 900°C | Wear-resistant tooling, high-stress components | Enhanced hardness, wear resistance | |
2200-2600 HV | Excellent | 1300°C | High-temperature engine parts, aerospace components | Superior thermal resistance, extended part life | |
1900-2100 HV | Excellent | 1000°C | Precision sealing, industrial components | Ultra-smooth surface, improved corrosion resistance | |
2200-2500 HV | High | 1000°C | Wear-resistant seals, engine components | Enhanced wear and thermal resistance, extended service life |
Surface Treatment Selection Strategy
Choosing the right surface treatment for silicon nitride components ensures their durability and performance in demanding environments:
PVD Coating provides enhanced hardness (up to 2400 HV) and exceptional wear resistance, suitable for high-stress and high-friction applications such as tooling and sealing components.
Thermal Barrier Coating (TBC) is ideal for high-temperature applications, offering exceptional thermal resistance (up to 1300°C) and protection for parts like aerospace engine components and combustion chambers.
Electropolishing enhances surface smoothness and corrosion resistance, making it an excellent choice for precision sealing components in medical and industrial applications.
Ceramic Coating improves wear and thermal resistance (up to 2500 HV), making it suitable for high-performance components exposed to severe conditions, such as wear-resistant seals and engine parts.
Typical Prototyping Methods
CNC Machining Prototyping: Offers high precision and fast turnaround for producing silicon nitride prototypes with tight tolerances of ±0.01 mm.
3D Ceramic Printing: Allows for rapid prototyping of intricate silicon nitride components with precise layer thickness (as low as 25 µm).
Powder Bed Fusion: Provides repeatable accuracy for prototyping complex silicon nitride parts that require high strength and tight tolerances.
Quality Assurance for Silicon Nitride CNC Machined Parts
Quality assurance is crucial for ensuring that silicon nitride CNC machined parts meet the required standards for high-performance applications:
CMM Inspection: Dimensional accuracy checked within ±0.01 mm using Coordinate Measuring Machines to verify precise tolerances.
Surface Finish Analysis: Profilometer checks to ensure surface roughness (Ra ≤0.4 µm) is within specified limits.
Mechanical Property Testing: To ensure that parts can withstand extreme stresses, flexural strength, fracture toughness, and hardness tests per ASTM C1161 and ASTM C1327 standards.
Non-Destructive Testing (NDT): Ultrasonic or radiographic inspections to detect internal defects or inconsistencies, ensuring part integrity.
Thermal Resistance Testing: Testing the material’s ability to withstand high temperatures (up to 1300°C), crucial for components in aerospace or automotive applications.
ISO 9001 Compliance: Strict adherence to quality management standards to ensure product consistency, traceability, and high performance.
Key Industry Applications
Aerospace turbine components
Automotive engine parts
High-performance seals and bearings
Industrial equipment exposed to high-stress conditions
