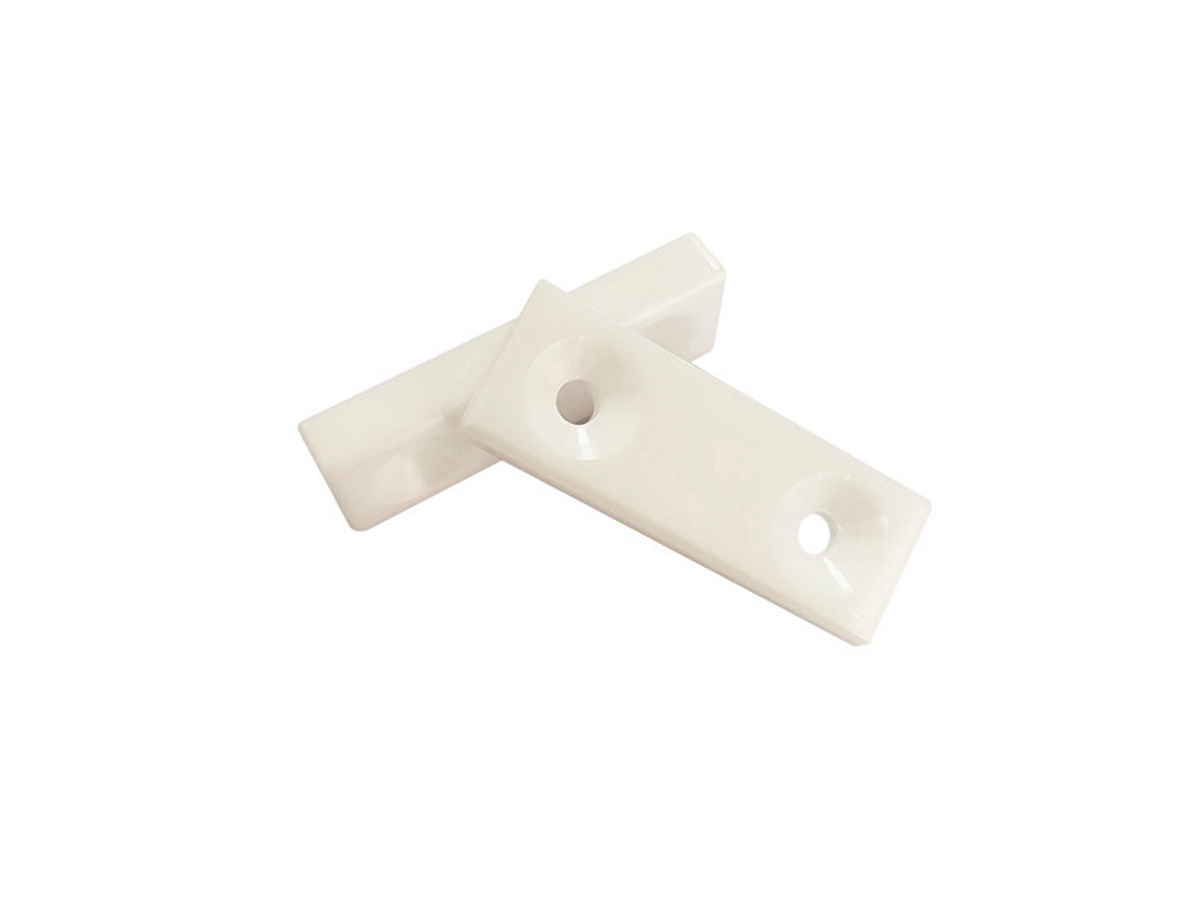

Mass CNC Machining for Ceramic Parts: Manufacturing for Harsh Environment Applications
Introduction
Mass CNC machining of ceramic parts provides a precise and reliable solution for producing components that are required to perform in harsh environments. Ceramics, such as alumina, zirconia, and silicon carbide, offer exceptional hardness, heat resistance, and wear resistance, making them ideal for applications in industries such as aerospace, electronics, and energy. Ceramic CNC Machining allows manufacturers to produce high-performance parts that can withstand extreme conditions, including high temperatures, corrosive environments, and high-stress mechanical loads.
Mass CNC machining enables the efficient production of ceramic parts in large quantities while maintaining precision and high quality. This is particularly important for applications such as engine components, heat exchangers, and sensors, where reliability and performance are critical. Mass Production CNC Machining offers a scalable solution for ceramic part manufacturing, allowing manufacturers to meet high demand while maintaining tight tolerances and fast turnaround times.
Ceramic Material Properties
Material Performance Comparison Table
Ceramic Material | Tensile Strength (MPa) | Hardness (Vickers HV) | Thermal Conductivity (W/m·K) | Density (g/cm³) | Applications | Advantages |
|---|---|---|---|---|---|---|
200–300 | 1200–2200 | 20–30 | 3.90 | Electrical insulators, heat exchangers | High strength, excellent electrical insulation | |
600–1000 | 1200–1500 | 2–3 | 6.05 | Engine components, medical devices | High fracture toughness, thermal insulation | |
1000–4000 | 2500–3000 | 120–150 | 3.20 | Aerospace, automotive, power electronics | Superior wear resistance, high thermal conductivity | |
300–350 | 1500–2500 | 170–200 | 3.26 | LED substrates, power devices | High thermal conductivity, electrical insulation |
Selecting the Right Ceramic for CNC Machining
Choosing the right ceramic material is essential for ensuring that the parts meet the specific requirements of harsh environments, including high temperatures, chemical exposure, and mechanical stress:
Alumina: Ideal for electrical insulators, heat exchangers, and other components that require high strength, good electrical insulation, and resistance to wear.
Zirconia is best suited for applications requiring high fracture toughness and thermal insulation, such as engine components and medical devices operating under extreme conditions.
Silicon Carbide: Perfect for aerospace, automotive, and power electronics components that require superior wear resistance and high thermal conductivity in high-stress environments.
Aluminum Nitride: Recommended for applications such as LED substrates and power devices, where high thermal conductivity and electrical insulation are crucial for performance.
CNC Machining Processes for Ceramic Parts
CNC Process Comparison Table
CNC Machining Process | Accuracy (mm) | Surface Finish (Ra µm) | Typical Uses | Advantages |
|---|---|---|---|---|
±0.005 | 0.4–1.6 | Ceramic seals, insulators | High precision for complex shapes | |
±0.005 | 0.4–1.0 | Rotational ceramic parts | Consistent surface finish, high accuracy | |
±0.01 | 0.8–3.2 | Holes for fasteners, threaded components | Fast hole-making, high precision | |
±0.003 | 0.2–1.0 | Complex ceramic parts, custom designs | High precision, complex geometries |
CNC Process Selection Strategy
The selection of CNC machining processes for ceramic parts depends on the part's complexity, dimensional requirements, and surface finish needs:
CNC Milling: Ideal for creating intricate ceramic components such as seals, insulators, and heat exchangers. It provides high precision (±0.005 mm) and is highly versatile for machining complex shapes and geometries.
CNC Turning: Best for producing cylindrical ceramic parts, such as bearings, rods, and tubes. It ensures high consistency, accuracy (±0.005 mm), and smooth surface finishes (Ra ≤1.0 µm).
CNC Drilling: Essential for creating precise holes and threaded components in ceramic materials, offering fast turnaround and high precision (±0.01 mm).
Multi-Axis Machining: Perfect for machining complex and custom-shaped ceramic parts with multi-directional features, offering superior precision (±0.003 mm) and reducing production steps.
Surface Treatments for Ceramic Parts
Surface Treatment Comparison Table
Treatment Method | Surface Roughness (Ra µm) | Corrosion Resistance | Max Temp (°C) | Applications | Key Features |
|---|---|---|---|---|---|
≤0.4 | Excellent | 250 | Ceramic insulators, medical components | Smooth surface, enhanced durability | |
≤1.0 | Excellent | 400–600 | Aerospace, automotive parts | High hardness, wear resistance | |
≤1.0 | Excellent | 250 | Power electronics, medical devices | Enhanced corrosion resistance, longer service life | |
≤1.2 | Excellent | 260 | Chemical equipment, electrical components | Non-stick, chemical resistance |
Surface Treatment Selection Strategy
Surface treatments are crucial for improving the performance, longevity, and resistance of ceramic parts used in harsh environments:
Electropolishing: Ideal for ceramic insulators and medical components, offering a smooth surface finish and enhancing the part’s durability and resistance to wear.
PVD Coating: Suitable for aerospace, automotive, and high-performance parts, providing increased hardness and wear resistance, ideal for parts exposed to high mechanical stress.
Passivation: Best for power electronics and medical devices, improving corrosion resistance and ensuring the parts maintain optimal performance in demanding environments.
Teflon Coating: Recommended for parts exposed to chemicals and high temperatures, offering excellent chemical resistance and non-stick properties, and is ideal for chemical equipment and electrical components.
Typical Ceramic Rapid Prototyping Methods
Effective prototyping methods for ceramic components include:
CNC Machining Prototyping: Fast, high-precision production of ceramic parts for small batches and testing.
Ceramic 3D Printing: Ideal for producing complex geometries and custom designs quickly and efficiently.
Rapid Molding Prototyping: Cost-effective for producing medium-complexity ceramic parts before scaling to large production volumes.
Quality Assurance Procedures
Dimensional Inspection: ±0.002 mm accuracy (ISO 10360-2).
Material Verification: ASTM C20, ASTM C626 standards for ceramic materials.
Surface Finish Assessment: ISO 4287.
Mechanical Testing: ASTM E8 for tensile and yield strength.
Visual Inspection: ISO 2768 standards.
ISO 9001 Quality Management System: Ensuring consistent quality and performance.
Key Applications
Aerospace: High-performance turbine components, seals, heat exchangers.
Energy: Insulators, protective coatings for power equipment.
Electronics: Ceramic capacitors, insulators, sensor components.
Medical Devices: Surgical instruments, dental implants.
