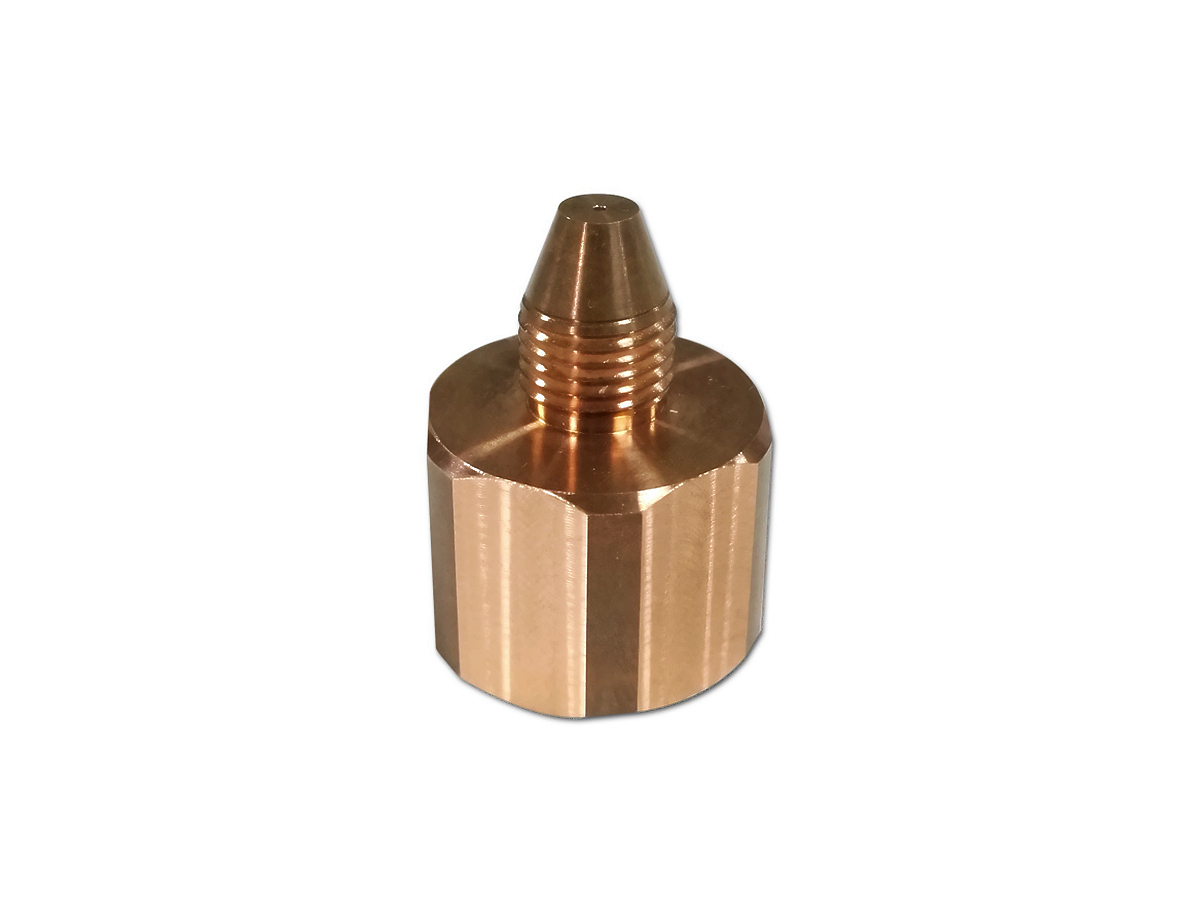

Mass CNC Machining of Copper Brass: Fast, Scalable Solutions for Industry Components
Introduction
Mass CNC machining of copper and brass offers fast and efficient solutions for producing high-quality, durable components used in various industries, including automotive, electronics, and construction. Copper alloys such as C110 and C260, along with brass alloys like C360 and C377, are renowned for their excellent electrical conductivity, corrosion resistance, and machinability. These properties make copper and brass ideal materials for producing precision parts in high-demand industries. Through Copper CNC Machining, manufacturers can efficiently produce large quantities of components with high precision, ensuring consistent quality and performance.
Mass CNC machining enables companies to scale up production while maintaining tight tolerances and meeting the stringent requirements of various industries. Mass Production CNC Machining ensures that copper and brass components can be manufactured quickly, supporting quick turnaround times and cost-effective solutions for large-scale production needs.
Copper Brass Material Properties
Material Performance Comparison Table
Copper Brass Alloy | Tensile Strength (MPa) | Yield Strength (MPa) | Hardness (HRC) | Density (g/cm³) | Applications | Advantages |
|---|---|---|---|---|---|---|
210–250 | 60–100 | 30–50 | 8.92 | Electrical contacts, terminals | Excellent electrical conductivity, corrosion resistance | |
500–700 | 250–300 | 70–85 | 8.40 | Fittings, valves, connectors | Excellent machinability, high mechanical strength | |
275–345 | 150–200 | 50–70 | 8.93 | Electrical conductors, heat exchangers | Good electrical and thermal conductivity | |
380–520 | 150–230 | 60–80 | 8.40 | Plumbing fittings, electrical connectors | Good corrosion resistance, high ductility |
Selecting the Right Copper Brass Alloy for CNC Machining
Selecting the appropriate copper or brass alloy for CNC machining is vital for ensuring the right balance of strength, machinability, and electrical performance for different industrial applications:
Copper C110: Ideal for electrical contacts, terminals, and connectors, offering exceptional electrical conductivity (≥100% IACS) and excellent corrosion resistance, making it perfect for sensitive electronic components.
Brass C360: Best for components requiring excellent machinability combined with high mechanical strength, such as fittings, valves, and connectors, often used in plumbing and automotive applications.
Copper C260 is recommended for high-performance electrical conductors and heat exchangers, providing good electrical conductivity and machinability.
Brass C377: Optimal for precision parts such as plumbing fittings and electrical connectors, offering good corrosion resistance and machinability.
CNC Machining Processes for Copper Brass Parts
CNC Process Comparison Table
CNC Machining Process | Accuracy (mm) | Surface Finish (Ra µm) | Typical Uses | Advantages |
|---|---|---|---|---|
±0.005 | 0.4–1.6 | Complex connectors, housings | High precision, versatility in part design | |
±0.005 | 0.4–1.0 | Cylindrical copper brass components | High accuracy, consistent surface finishes | |
±0.01 | 0.8–3.2 | Holes for fasteners, threaded components | Fast, precise hole-making | |
±0.003 | 0.2–1.0 | Intricate copper brass parts | High precision, capability for complex geometries |
CNC Process Selection Strategy
The choice of CNC machining process depends on the part’s complexity, tolerance requirements, and intended application:
CNC Milling: Ideal for producing complex geometries in copper and brass alloys, such as intricate connectors and housings, offering high precision (±0.005 mm) and versatility for diverse designs.
CNC Turning: Best suited for cylindrical copper and brass components, such as connectors, pins, and rods, ensuring high accuracy (±0.005 mm) and consistent surface finishes (Ra ≤1.0 µm).
CNC Drilling: Essential for creating precise holes, threads, and fastener holes in copper and brass components, with high-speed hole-making capabilities and accuracy (±0.01 mm).
Multi-Axis Machining: Suitable for parts with multi-directional features, such as intricate copper and brass components, offering superior precision (±0.003 mm) and reducing the number of production steps.
Surface Treatments for Copper Brass Parts
Surface Treatment Comparison Table
Treatment Method | Surface Roughness (Ra µm) | Corrosion Resistance | Max Temp (°C) | Applications | Key Features |
|---|---|---|---|---|---|
≤0.8 | Superior | 300 | Electrical connectors, terminals | Enhanced conductivity, corrosion protection | |
≤1.0 | Excellent | 450 | Aerospace, automotive components | Increased hardness, wear resistance | |
≤1.0 | Excellent | 250 | Plumbing fittings, electrical connectors | Increased corrosion resistance, longer lifespan | |
≤1.2 | Excellent | 260 | Chemical equipment, electrical components | Non-stick, chemical resistance |
Surface Treatment Selection Strategy
The appropriate surface treatment ensures that copper and brass components meet the necessary durability, corrosion resistance, and wear resistance for various applications:
Electroplating: Ideal for enhancing electrical connectors and terminals, providing corrosion protection and superior conductivity.
PVD Coating: Best suited for aerospace and automotive components, where increased hardness and wear resistance are crucial to handling harsh operating conditions.
Passivation: Recommended for copper and brass plumbing fittings and electrical connectors, improving corrosion resistance and ensuring the longevity of the parts.
Teflon Coating: Perfect for applications requiring non-stick properties and resistance to chemicals, commonly used in chemical equipment and electrical components.
Typical Copper Brass Rapid Prototyping Methods
Effective prototyping methods for copper and brass components include:
CNC Machining Prototyping: Provides fast, high-precision production of copper and brass parts in small batches for testing and iteration.
Copper Brass 3D Printing: Ideal for producing complex geometries and custom designs, enabling rapid iterations of copper brass parts.
Rapid Molding Prototyping: Cost-effective for producing moderate-complexity copper brass parts, ideal for testing before moving to mass production.
Quality Assurance Procedures
Dimensional Inspection: ±0.002 mm accuracy (ISO 10360-2).
Material Verification: ASTM B584, ASTM B16 standards for copper and brass alloys.
Surface Finish Assessment: ISO 4287.
Mechanical Testing: ASTM E8 for tensile and yield strength.
Visual Inspection: ISO 2768 standards.
ISO 9001 Quality Management System: Ensuring consistent product quality and performance.
Key Applications
Aerospace: Fuel system components, structural parts, heat exchangers.
Automotive: Electrical connectors, radiators, sensors.
Industrial Equipment: Fittings, pumps, valves.
Electronics: Circuit boards, heat sinks, electrical components.
