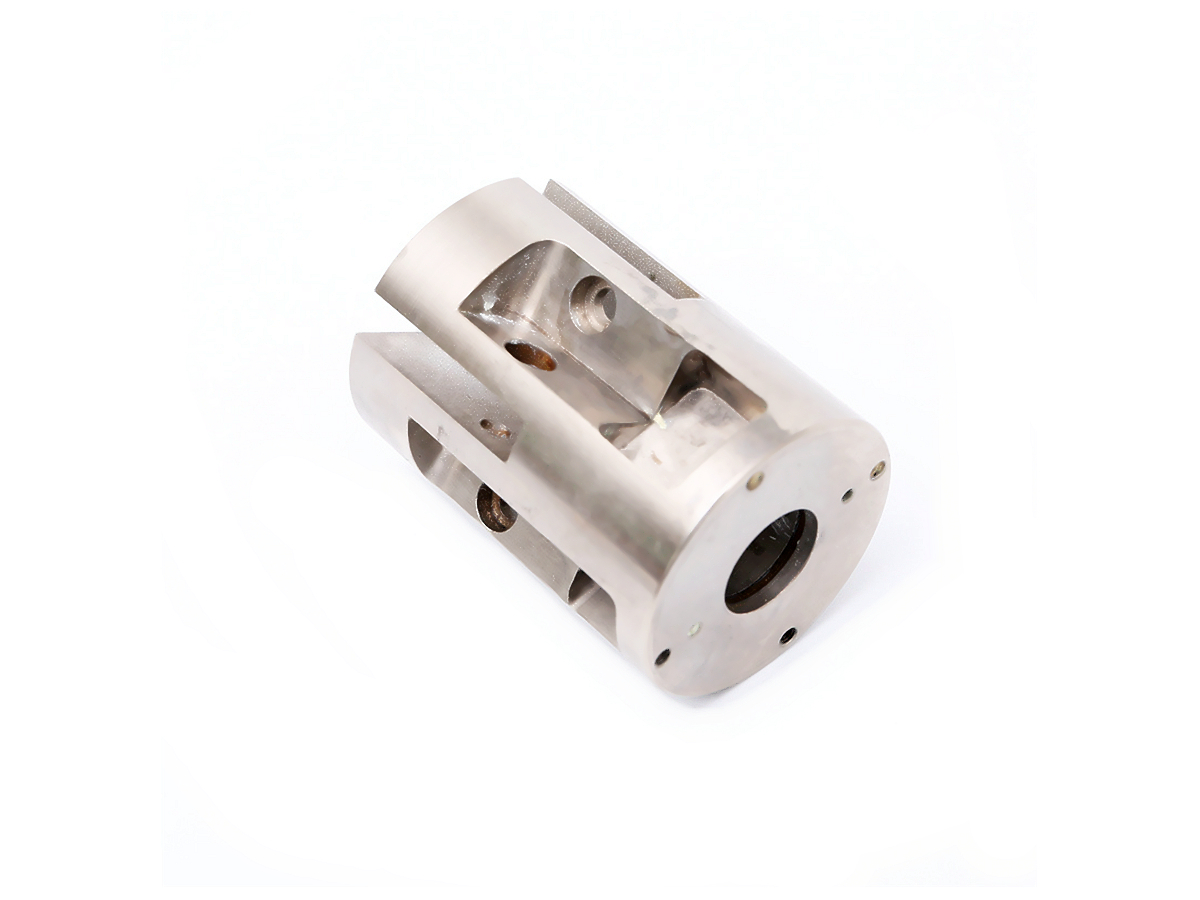

Mass CNC Machining of Stainless Steel: Automotive Parts Large-Scale Manufacturing
Introduction
Mass CNC stainless steel machining is a key solution for the large-scale manufacturing of high-precision, durable automotive parts. Stainless steel alloys like 304, 316, and 17-4 PH offer excellent strength, corrosion resistance, and versatility, making them ideal for automotive applications. From engine components to structural parts and fasteners, stainless steel is commonly used in automotive manufacturing due to its ability to withstand extreme temperatures and harsh environments. Stainless Steel CNC Machining enables manufacturers to produce high-quality automotive parts with exceptional strength, durability, and performance.
With mass CNC machining, automotive companies can streamline the production of stainless steel components, ensuring consistency, precision, and fast turnaround times for large-volume orders. Mass Production CNC Machining supports the high demand for automotive parts while maintaining tight tolerances, ultimately improving efficiency and reducing manufacturing costs for large-scale automotive production.
Stainless Steel Material Properties
Material Performance Comparison Table
Stainless Steel Alloy | Tensile Strength (MPa) | Yield Strength (MPa) | Hardness (HRC) | Density (g/cm³) | Applications | Advantages |
|---|---|---|---|---|---|---|
520–750 | 215–505 | 20–25 | 7.93 | Exhaust systems, trim, fasteners | Excellent corrosion resistance, good weldability | |
570–860 | 275–500 | 25–30 | 7.98 | Corrosion-resistant components, fuel systems | Superior resistance to corrosion and oxidation | |
1030–1200 | 880–1030 | 40–45 | 7.75 | Engine parts, springs, fasteners | High strength, good mechanical properties | |
480–600 | 250–450 | 30–35 | 7.70 | Automotive trim, appliances, structural parts | Good formability, cost-effective |
Selecting the Right Stainless Steel Alloy for Automotive CNC Machining
Choosing the right stainless steel alloy is critical to ensuring the performance, durability, and reliability of automotive parts:
304 Stainless Steel: Ideal for general automotive applications like exhaust systems and fasteners, offering excellent corrosion resistance and good weldability, making it suitable for parts exposed to heat and moisture.
316 Stainless Steel: Best for high-performance automotive components exposed to aggressive environments, such as fuel systems, due to its superior corrosion resistance, especially against chlorides and acids.
17-4 PH Stainless Steel: Recommended for engine parts, springs, and fasteners, where high strength and good mechanical properties are required, particularly in demanding automotive applications like turbochargers and valve components.
430 Stainless Steel: Suitable for automotive trim and structural parts where corrosion resistance is important, but cost-effectiveness is also a key factor.
CNC Machining Processes for Stainless Steel Automotive Parts
CNC Process Comparison Table
CNC Machining Process | Accuracy (mm) | Surface Finish (Ra µm) | Typical Uses | Advantages |
|---|---|---|---|---|
±0.005 | 0.4–1.6 | Engine parts, exhaust systems | High precision for complex shapes | |
±0.005 | 0.4–1.0 | Shafts, cylinder heads | Consistent, high-quality surface finishes | |
±0.01 | 0.8–3.2 | Holes for fasteners, threaded parts | Fast, precise hole-making | |
±0.003 | 0.2–1.0 | Complex automotive components | High precision for multi-directional geometries |
CNC Process Selection Strategy
The selection of the CNC machining process for stainless steel automotive components depends on the part geometry, required precision, and surface finish:
CNC Milling: Perfect for creating complex automotive parts such as engine components, exhaust systems, and intricate trims with high precision (±0.005 mm) and the ability to machine complex shapes and profiles.
CNC Turning: Ideal for cylindrical automotive parts, such as shafts, cylinder heads, and connectors, ensuring high accuracy (±0.005 mm) and consistent surface finishes (Ra ≤1.0 µm).
CNC Drilling: Essential for creating holes, threads, and fastener holes in automotive components, offering high-speed hole-making capabilities and precision (±0.01 mm).
Multi-Axis Machining: Best suited for machining intricate automotive components that require multi-directional features, offering superior precision (±0.003 mm) and the ability to reduce the number of machining steps.
Surface Treatments for Stainless Steel Automotive Parts
Surface Treatment Comparison Table
Treatment Method | Surface Roughness (Ra µm) | Corrosion Resistance | Max Temp (°C) | Applications | Key Features |
|---|---|---|---|---|---|
≤0.4 | Excellent | 250 | Exhaust systems, fuel systems | Smooth surface, enhanced corrosion resistance | |
≤1.0 | Excellent | 450–600 | Automotive trims, high-performance parts | Increased hardness, wear resistance | |
≤1.0 | Excellent | 250 | Automotive fasteners, structural parts | Improved corrosion resistance, extended lifespan | |
≤2.0 | Excellent | 200 | Body panels, bumpers | Durable finish, weather resistance, aesthetic appeal |
Surface Treatment Selection Strategy
Surface treatments for stainless steel automotive parts enhance corrosion resistance, wear resistance, and overall durability:
Electropolishing: Ideal for automotive components exposed to harsh environments, such as exhaust systems and fuel systems, offering enhanced corrosion resistance and a smooth surface finish.
PVD Coating: Recommended for automotive trims and high-performance parts that require increased hardness and wear resistance, especially in parts subjected to high stress and friction.
Passivation: Suitable for automotive fasteners and structural parts, passivation improves corrosion resistance, ensuring parts last longer under exposure to moisture, salts, and other corrosive elements.
Powder Coating: Best for automotive body panels, bumpers, and other exterior components, providing a durable, aesthetic finish that resists weathering and corrosion.
Typical Stainless Steel Rapid Prototyping Methods
Effective prototyping methods for stainless steel automotive components include:
CNC Machining Prototyping: Provides fast, high-precision production of stainless steel parts in small quantities for testing and iteration.
Stainless Steel 3D Printing: Ideal for rapid prototyping of complex stainless steel components, allowing quick design modifications and part validation.
Rapid Molding Prototyping: Cost-effective for producing moderate-complexity stainless steel parts before moving to high-volume production.
Quality Assurance Procedures
Dimensional Inspection: ±0.002 mm accuracy (ISO 10360-2).
Material Verification: ASTM A276, ASTM F899 standards for stainless steel alloys.
Surface Finish Assessment: ISO 4287.
Mechanical Testing: ASTM E8 for tensile and yield strength.
Visual Inspection: ISO 2768 standards.
ISO 9001 Quality Management System: Ensuring consistent quality and performance.
Key Applications
Automotive: Engine components, exhaust systems, fasteners.
Aerospace: Aircraft structural parts, fuel systems.
Construction: Structural supports, building frameworks.
Medical Devices: Surgical tools, medical implants.
