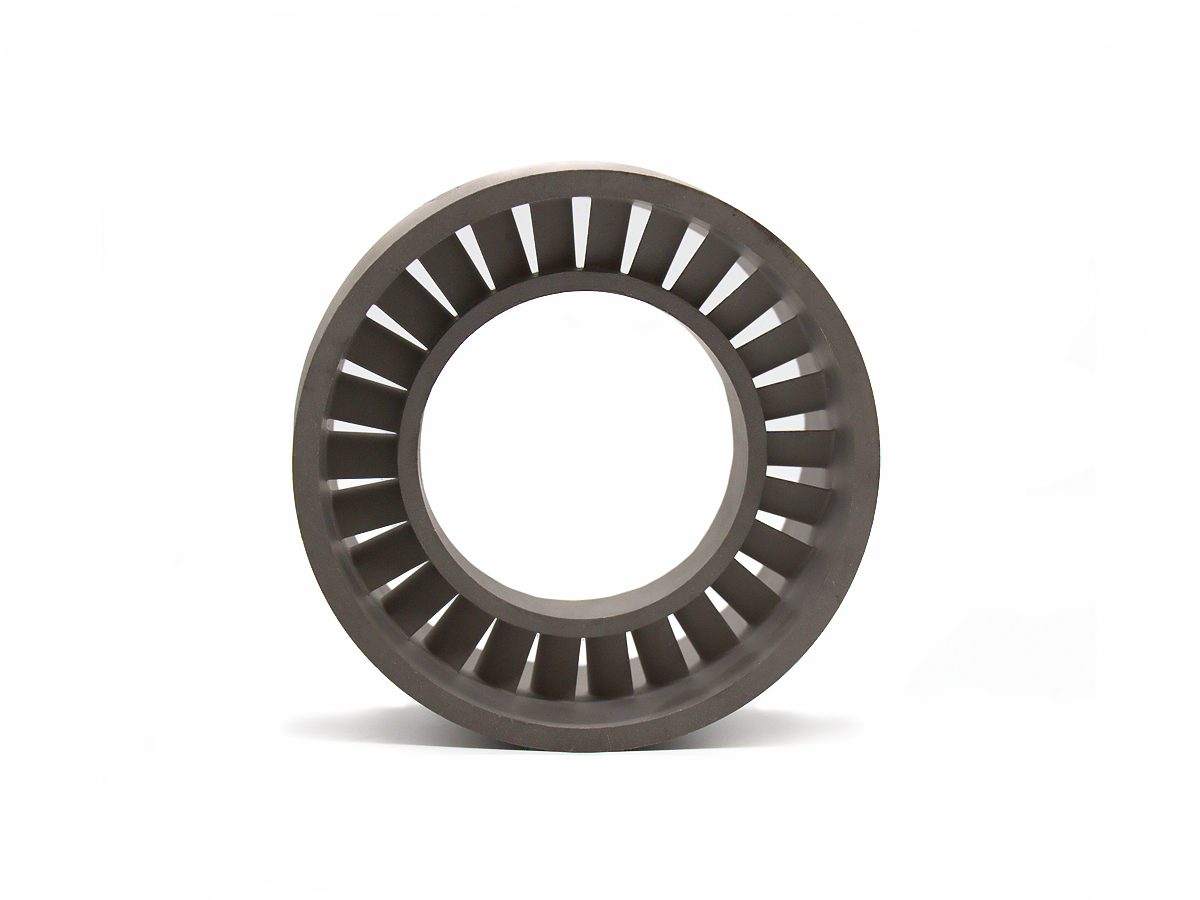

One-Stop CNC Machining for Superalloys: Precision Parts for Aerospace Industries
Introduction
One-stop CNC machining for superalloys provides a comprehensive solution for manufacturing high-performance, precision parts for the aerospace industry. Superalloys, such as Inconel, Hastelloy, and Waspaloy, are renowned for their exceptional strength, heat resistance, and corrosion resistance, making them ideal materials for aerospace components that must withstand extreme temperatures and mechanical stress. By leveraging Superalloy CNC Machining, manufacturers can produce parts with complex geometries and tight tolerances required for critical aerospace applications.
A one-stop CNC machining service enables aerospace companies to streamline the production process, ensuring fast turnaround times and reducing the risk of errors by managing design, prototyping, and final production under one roof. This approach optimizes efficiency, provides consistent part quality, and meets stringent aerospace industry standards. Mass Production CNC Machining facilitates the large-scale production of these high-performance superalloy components, essential for advanced aerospace systems while maintaining high levels of precision and reliability.
Superalloy Material Properties
Material Performance Comparison Table
Superalloy Material | Tensile Strength (MPa) | Yield Strength (MPa) | Hardness (HRC) | Density (g/cm³) | Applications | Advantages |
|---|---|---|---|---|---|---|
1034–1380 | 930–1180 | 35–45 | 8.90 | Turbine blades, engine components | High strength, excellent oxidation resistance | |
760–1000 | 550–690 | 35–45 | 8.89 | Aerospace, chemical processing | Exceptional corrosion resistance | |
1000–1200 | 820–1030 | 30–40 | 8.90 | Gas turbines, rocket components | High creep-rupture strength, thermal stability | |
Waspaloy | 1200–1400 | 930–1100 | 40–50 | 8.89 | Jet engines, turbochargers | Excellent high-temperature strength, oxidation resistance |
Selecting the Right Superalloy for Aerospace CNC Machining
Selecting the right superalloy for CNC machining is crucial for achieving the necessary strength, durability, and performance for aerospace applications:
Inconel 718: Ideal for high-temperature aerospace components like turbine blades and engine parts due to its high strength and excellent resistance to oxidation and creep.
Hastelloy C-276: Best for aerospace applications where corrosion resistance is essential, such as chemical processing equipment and parts exposed to aggressive environments.
Inconel X-750: Suitable for parts in extreme high-temperature environments, such as gas turbines and rocket components, offering high creep-rupture strength and thermal stability.
Waspaloy: Recommended for jet engines and turbochargers, offering excellent high-temperature strength, oxidation resistance, and fatigue resistance.
CNC Machining Processes for Superalloy Parts
CNC Process Comparison Table
CNC Machining Process | Accuracy (mm) | Surface Finish (Ra µm) | Typical Uses | Advantages |
|---|---|---|---|---|
±0.005 | 0.4–1.6 | Turbine blades, engine components | High precision, versatility for complex shapes | |
±0.005 | 0.4–1.0 | Cylindrical parts, shafts | Consistent surface finishes, high accuracy | |
±0.01 | 0.8–3.2 | Holes for fasteners, threaded components | Fast hole-making, high accuracy | |
±0.003 | 0.2–1.0 | Complex aerospace components | High precision, multi-directional machining |
CNC Process Selection Strategy
The machining process chosen for superalloy parts depends on part complexity, required precision, and the material’s mechanical properties:
CNC Milling: Perfect for machining intricate aerospace components such as turbine blades, engine casings, and structural parts. It offers high precision (±0.005 mm) and is suitable for complex geometries and multi-feature parts.
CNC Turning: Best suited for cylindrical superalloy parts, such as shafts and pins, ensuring consistent accuracy (±0.005 mm) and high-quality surface finishes (Ra ≤1.0 µm).
CNC Drilling: Ideal for creating precise holes and threads in superalloy components, such as for fasteners and mechanical connections, with fast turnaround and high precision (±0.01 mm).
Multi-Axis Machining: Essential for machining complex, multi-directional features in superalloy parts, offering superior precision (±0.003 mm) and reducing the number of production steps.
Surface Treatments for Superalloy Parts
Surface Treatment Comparison Table
Treatment Method | Surface Roughness (Ra µm) | Corrosion Resistance | Max Temp (°C) | Applications | Key Features |
|---|---|---|---|---|---|
≤1.0 | Excellent | 450–600 | Aerospace, high-performance parts | Increased hardness, wear resistance | |
≤0.4 | Excellent | 250 | Aerospace components, medical parts | Smooth surface, enhanced corrosion resistance | |
≤1.0 | Excellent | 250 | Aerospace, chemical equipment | Improved corrosion resistance, extended lifespan | |
≤1.5 | Excellent | 900 | Gas turbines, engine parts | High heat resistance, wear protection |
Surface Treatment Selection Strategy
Surface treatments for superalloy parts are critical for improving their performance in harsh aerospace environments, where parts are subjected to extreme temperatures, mechanical stress, and corrosive elements:
PVD Coating: Ideal for high-performance aerospace components, providing enhanced hardness, wear resistance, and protection against oxidation at high temperatures.
Electropolishing: Recommended for aerospace parts that require smooth surfaces and enhanced corrosion resistance, ensuring the longevity and reliability of critical components.
Passivation: Suitable for aerospace and chemical equipment components, passivation improves corrosion resistance, especially in environments exposed to moisture and chemical agents.
Thermal Spray Coating: Perfect for parts exposed to extremely high temperatures, such as gas turbines and engine parts, providing wear protection and thermal barrier capabilities.
Typical Superalloy Rapid Prototyping Methods
Effective prototyping methods for superalloy components include:
CNC Machining Prototyping: Provides fast, high-precision production of superalloy parts for small quantities and testing in aerospace applications.
Superalloy 3D Printing: Ideal for producing complex superalloy geometries and custom designs quickly, with rapid iterations for design validation.
Rapid Molding Prototyping: Cost-effective for producing moderately complex superalloy parts in small quantities before scaling up to full production.
Quality Assurance Procedures
Dimensional Inspection: ±0.002 mm accuracy (ISO 10360-2).
Material Verification: ASTM B637, ASTM F899 standards for superalloy materials.
Surface Finish Assessment: ISO 4287.
Mechanical Testing: ASTM E8 for tensile and yield strength.
Visual Inspection: ISO 2768 standards.
ISO 9001 Quality Management System: Ensuring consistent product quality and performance.
Key Applications
Aerospace: Turbine blades, engine components, nozzles.
Automotive: High-performance engine parts, exhaust components.
Energy: Gas turbines, reactors, heat exchangers.
Medical Devices: Surgical tools, implants, diagnostic devices.
