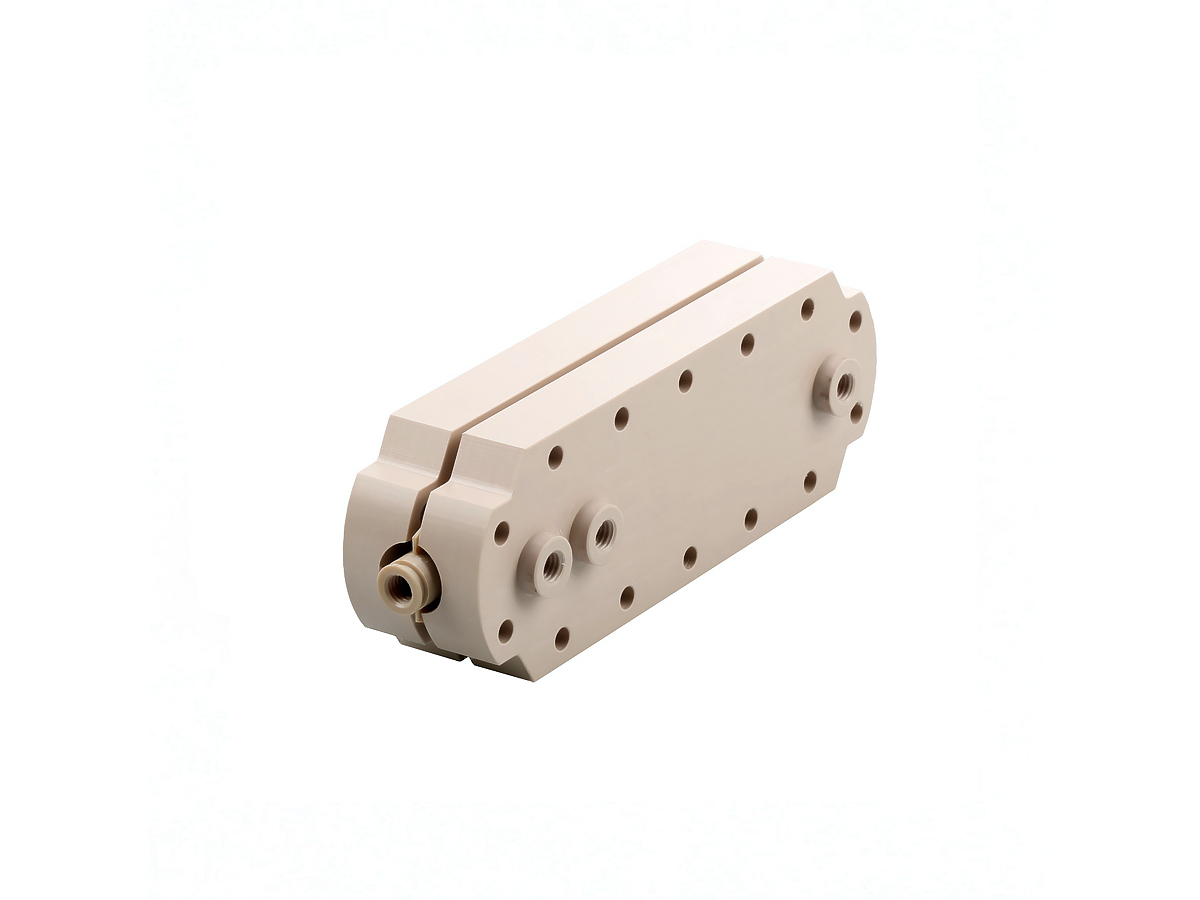

Plastic CNC Rapid Prototyping: Quick, Cost-Effective Solutions for Custom Designs
Introduction
Plastic CNC rapid prototyping offers manufacturers a quick, accurate, and cost-effective method for developing customized plastic prototypes and functional parts. Known for their versatility, ease of machining, and affordability, plastics like ABS, Nylon (PA), POM (Acetal), and Polycarbonate (PC) are widely used across diverse industries, including consumer products, medical devices, automotive, and electronics. Leveraging advanced CNC machining techniques, such as Plastic CNC Machining Service and Multi-Axis Machining Service, facilitates fast turnaround with high precision (±0.005 mm accuracy according to ISO 2768 standards), enabling rapid validation and product iterations.
Rapid plastic CNC prototyping significantly streamlines the product development cycle, allowing quick testing, design improvements, and validation before transitioning to mass production.
Plastic Material Properties
Material Performance Comparison Table
Plastic Type | Tensile Strength (MPa) | Flexural Modulus (MPa) | Density (g/cm³) | Heat Resistance (°C, ASTM D648) | Applications | Advantages |
|---|---|---|---|---|---|---|
40–50 | 2300 | 1.04 | 85–100 | Consumer electronics, housings | Impact resistance, easy machining | |
60–80 | 2900 | 1.13 | 120–150 | Gears, bushings, mechanical parts | High strength, wear resistance | |
65–80 | 2800 | 1.41 | 100–120 | Bearings, precision gears | Excellent dimensional stability, low friction | |
60–70 | 2400 | 1.20 | 130–140 | Transparent prototypes, lenses | High impact strength, optical clarity |
Selecting the Ideal Plastic Material
Choosing the right plastic material for CNC rapid prototyping depends on application needs, mechanical strength, thermal properties, and desired performance:
ABS: Ideal for general-purpose prototyping due to its impact resistance (ISO 180: 20-25 kJ/m²), ease of machining, and affordability. Frequently used for consumer products.
Nylon (PA): Preferred for mechanically robust prototypes, offering high tensile strength up to 80 MPa (ASTM D638), wear resistance, and good flexibility, suitable for gears and moving automotive components.
Acetal (POM): Recommended for high-precision components with dimensional stability (ISO 294-4 tolerance grade IT7), stiffness, and low friction coefficient (0.2–0.3). Ideal for precision bearings and gears.
Polycarbonate (PC): Optimal for transparent components requiring high impact resistance (ISO 179: 70-80 kJ/m²), optical clarity (>89% transparency per ASTM D1003), and thermal stability.
CNC Machining Processes for Plastic Components
CNC Process Comparison Table
CNC Machining Process | Accuracy (mm) | Surface Finish (Ra µm) | Typical Uses | Advantages |
|---|---|---|---|---|
±0.005 | 0.4–1.6 | Complex enclosures, prototype housings | Precise shaping, complex geometries | |
±0.005 | 0.4–1.6 | Cylindrical plastic components, rollers | High accuracy, excellent surface consistency | |
±0.01 | 0.8–3.2 | Mounting holes, threaded inserts | Fast, precise hole-making | |
±0.005 | 0.4–1.2 | Detailed functional prototypes, precision models | Quick turnaround, superior accuracy |
Selecting the Optimal CNC Machining Process
Selecting the appropriate CNC machining process depends on complexity, precision needs, geometry, and production turnaround:
CNC Milling: Best suited for intricate components requiring tolerances up to ±0.005 mm, according to ISO 2768 medium tolerance class.
CNC Turning: Ideal for cylindrical components, ensuring consistent quality, dimensional accuracy, and surface finishes as fine as Ra 0.4 µm.
CNC Drilling: Recommended for accurate hole-making with tolerance of ±0.01 mm, crucial for precision assembly tasks.
CNC Machining Prototyping: Ideal for rapid and highly accurate functional prototypes, meeting strict dimensional specifications (ISO 2768 fine tolerance class).
Surface Treatments for Plastic Components
Surface Treatment Comparison Table
Treatment Method | Surface Roughness (Ra µm) | Wear Resistance | UV Stability | Applications | Key Features |
|---|---|---|---|---|---|
≤0.8 | Good | Excellent | Consumer electronics, medical parts | Enhanced UV protection, durability | |
≤1.0 | Moderate | Very Good | Automotive parts, prototypes | Cost-effective, aesthetic finish | |
≤0.6 | Excellent | Good | Bearings, mechanical parts | Low friction, chemical resistance | |
≤0.4 | Moderate | Moderate | Transparent covers, lenses | Exceptional clarity, smoothness |
Selecting the Ideal Surface Treatment
Appropriate surface treatment greatly improves aesthetics, performance, and durability:
UV Coating: Provides superior UV protection and durability per ASTM G154 (≥500 hrs exposure), ideal for outdoor electronic devices.
Painting: Offers an economical solution for aesthetic enhancement, meeting automotive-grade standards (ISO 12944-5 C3).
Teflon Coating: Achieves low friction coefficient (<0.05), excellent chemical resistance, and high wear resistance (ASTM D4060 abrasion test).
Polishing: Ideal for optical clarity, achieving Ra ≤0.4 µm, per ISO 4287 standards, suitable for lenses and transparent enclosures.
Typical Plastic Rapid Prototyping Methods
Effective plastic prototyping methods include:
CNC Machining Prototyping: Provides high-precision prototypes adhering to ISO 2768 tolerance standards.
Plastic 3D Printing: Enables complex geometries and rapid design iterations, following ASTM F2792 standards.
Rapid Molding Prototyping: Efficient for quickly verifying functional prototypes, compliant with ASTM D955 shrinkage standards.
Quality Assurance Procedures
Dimensional Inspection: ±0.002 mm accuracy (ISO 10360-2).
Material Verification: ASTM D638 standards.
Surface Finish Assessment: ISO 4287.
UV Stability Testing: ASTM G154 (≥500 hrs exposure).
Mechanical Testing: Tensile & Flexural ASTM D790.
Visual Inspection: ISO 2768 standards.
ISO 9001 Quality Management compliance.
Key Applications
Consumer Products: Electronics housings, toys, household gadgets.
Medical Device: Disposable components, device housings, surgical tool prototypes.
Automotive: Interior trims, dashboards, lighting components.
Electronics: Enclosures, connectors, device casings.
