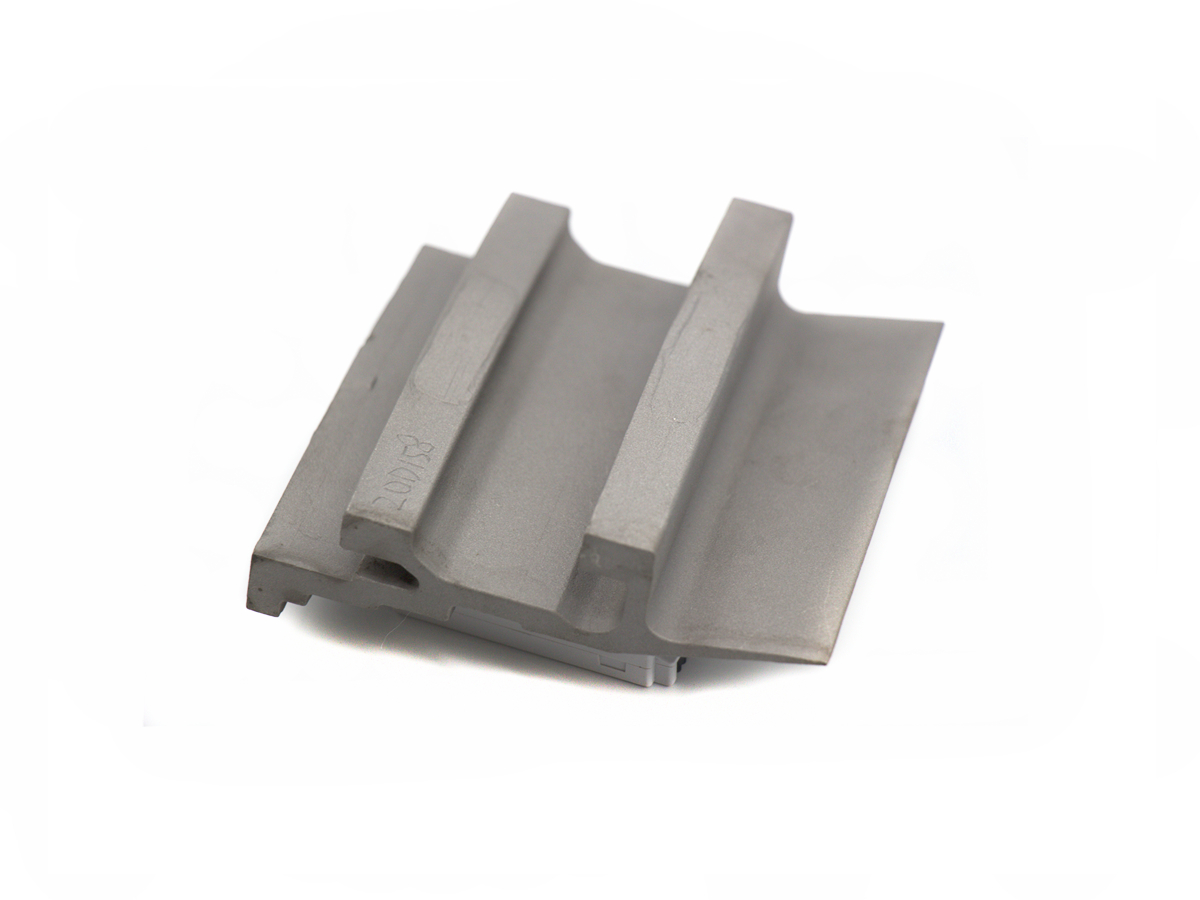

Precision CNC Machined Superalloy Components for Oil and Gas Applications
Introduction to Precision CNC Machined Superalloy Components for Oil and Gas Applications
The oil and gas industry demands components that can withstand extreme conditions, including high pressure, temperature fluctuations, and exposure to corrosive environments. Precision CNC machining of superalloys provides a solution for producing high-performance components that offer exceptional strength, resistance to heat, and corrosion resistance. Superalloys, such as Inconel, Hastelloy, and Monel, are increasingly used in oil and gas applications because they maintain integrity in challenging environments.
CNC machining of superalloys enables manufacturers to create custom, high-precision components for critical oil and gas systems, including turbine blades, valve bodies, and pressure vessels. These components are essential for ensuring safe, efficient, and reliable operation in the oil and gas industry.
Material Performance Comparison for Superalloy Parts in Oil and Gas Applications
Material | Tensile Strength (MPa) | Thermal Conductivity (W/m·K) | Machinability | Corrosion Resistance | Typical Applications | Advantages |
|---|---|---|---|---|---|---|
1030 | 11.5 | Moderate | Excellent (greater than 1000 hours in ASTM B117 salt spray test) | Turbine components, exhaust systems | Superior corrosion resistance, high-temperature stability | |
1300 | 11.2 | Moderate | Excellent (greater than 1000 hours in ASTM B117 salt spray test) | High-pressure valves, turbine rotors | High strength, excellent fatigue resistance | |
1000 | 12 | Fair | Excellent (greater than 1500 hours in ASTM B117 salt spray test) | Chemical processing, pressure vessels | Outstanding resistance to corrosion and oxidation | |
620 | 35.8 | Good | Excellent (greater than 1200 hours in ASTM B117 salt spray test) | Seawater applications, pump components | Exceptional resistance to seawater and acidic environments |
Material Selection Strategy for Superalloy Parts in Oil and Gas Applications
Inconel 625 offers a high tensile strength of 1030 MPa and exceptional resistance to oxidation and corrosion, making it ideal for use in turbine components and exhaust systems in oil and gas equipment. It also maintains its strength and resistance even at high temperatures, making it suitable for demanding high-heat applications.
Inconel 718 provides superior strength (1300 MPa) and excellent fatigue resistance, making it ideal for high-pressure valves, turbine rotors, and other components subjected to cyclic loads. This alloy is known for its exceptional performance in high-temperature environments.
Hastelloy C-276 excels in environments that require excellent corrosion resistance, particularly in chemical processing and pressure vessels. With a tensile strength of 1000 MPa, this alloy protects parts exposed to harsh chemical environments.
Monel 400 is highly resistant to seawater corrosion and acidic environments, making it the preferred choice for components used in seawater applications, such as pump components. It offers a tensile strength of 620 MPa and is especially effective in environments with aggressive media.
CNC Machining Processes for Superalloy Parts in Oil and Gas Applications
CNC Machining Process | Dimensional Accuracy (mm) | Surface Roughness (Ra μm) | Typical Applications | Key Advantages |
|---|---|---|---|---|
±0.005 | 0.2-0.8 | Complex superalloy parts, turbine blades | High precision, complex geometries | |
±0.005 | 0.2-0.8 | Valve bodies, high-performance components | Fine surface finishes, tight tolerances | |
±0.005-0.01 | 0.4-1.2 | Cylindrical components, shafts | Excellent rotational accuracy | |
±0.01-0.02 | 0.8-1.6 | Mounting holes, pipe connections | Accurate hole placement |
CNC Process Selection Strategy for Superalloy Parts
Multi-Axis CNC Machining is ideal for creating complex, high-precision superalloy components like turbine blades and custom valve bodies. The precision and ability to create intricate geometries with tight tolerances (±0.005 mm) make this process perfect for parts used in high-performance oil and gas systems.
Precision CNC Milling is used to produce components that require fine surface finishes (Ra ≤0.8 µm) and tight dimensional tolerances (±0.005 mm). It is suitable for creating high-performance valve bodies, turbine components, and other critical oil and gas parts that must meet rigorous quality standards.
Precision CNC Turning ensures high rotational accuracy (±0.005 mm) for cylindrical superalloy components like shafts and pump parts. This process provides excellent surface finishes and is ideal for components requiring smooth, uniform features.
CNC Drilling ensures precise hole placement (±0.01 mm), which is essential for components like pipe fittings, valves, and flanges used in the oil and gas industry. This process guarantees that components align perfectly in high-pressure systems.
Surface Treatment Performance for Superalloy Parts in Oil and Gas Applications
Treatment Method | Surface Roughness (Ra μm) | Corrosion Resistance | Hardness (HV) | Applications |
|---|---|---|---|---|
0.2-0.6 | Excellent (>800 hrs ASTM B117) | 1000-1200 | Superalloy turbine components, valve bodies | |
0.1-0.4 | Superior (>1000 hrs ASTM B117) | N/A | Superalloy pump parts, chemical processing components | |
0.2-0.6 | Superior (>1000 hrs ASTM B117) | 800-1000 | High-performance superalloy parts, seals | |
0.2-0.8 | Excellent (>1000 hrs ASTM B117) | N/A | Pressure vessels, chemical reactors |
Typical Prototyping Methods
CNC Machining Prototyping: High-precision prototypes (±0.005 mm) for functional testing of superalloy components used in oil and gas applications.
Rapid Molding Prototyping: Fast and accurate prototyping for superalloy parts like valve bodies and pressure vessels.
3D Printing Prototyping: Quick-turnaround prototyping (±0.1 mm accuracy) for initial design validation of superalloy parts.
Quality Inspection Procedures
CMM Inspection (ISO 10360-2): Dimensional verification of superalloy parts with tight tolerances.
Surface Roughness Test (ISO 4287): Ensures surface quality for precision components in oil and gas systems.
Salt Spray Test (ASTM B117): Verifies corrosion resistance performance of superalloy parts in harsh environments.
Visual Inspection (ISO 2859-1, AQL 1.0): Confirms aesthetic and functional quality of superalloy components.
ISO 9001:2015 Documentation: Ensures traceability, consistency, and compliance with industry standards.
Industry Applications
Oil and Gas: Turbine components, valve bodies, pressure vessels, pump parts.
Aerospace: Jet engine components, turbine blades, heat exchangers.
Chemical Processing: Reactors, heat exchangers, corrosion-resistant components.
FAQs:
What are superalloys, and why are they used in oil and gas applications?
How does CNC machining improve the precision of superalloy parts?
Which superalloy materials are most suitable for oil and gas applications?
What surface treatments improve the durability of superalloy components?
What prototyping methods are best for superalloy parts used in the oil and gas industry?
