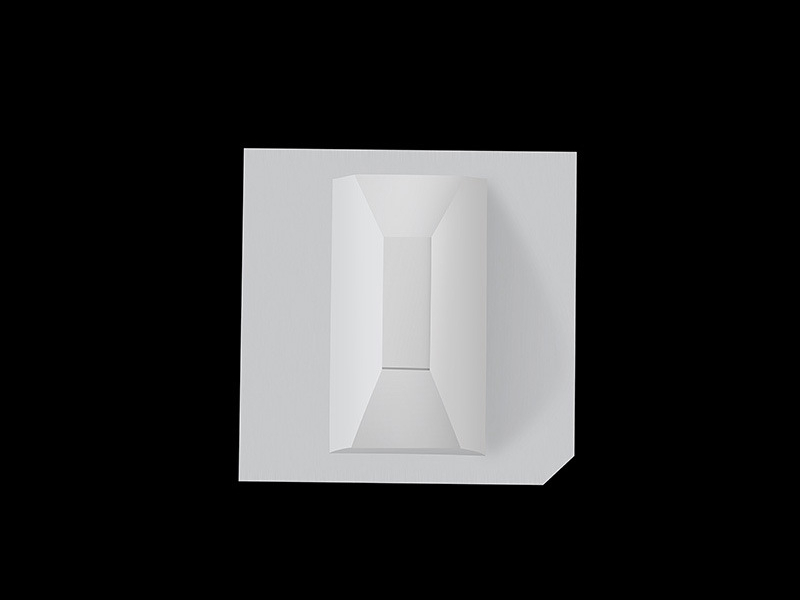

Precision CNC Machining of Aluminum Nitride (AlN) for Superior Thermal Components
Introduction
Aluminum nitride (AlN) is a high-performance ceramic material renowned for its exceptional thermal conductivity and electrical insulating properties. CNC machining of AlN allows manufacturers to produce precision components with tight tolerances (±0.01 mm) and smooth surface finishes (Ra ≤0.5 µm), making it ideal for high-performance thermal applications. AlN is widely used in aerospace, automotive, and electronics industries, providing thermal management solutions in critical applications such as heat sinks, thermal substrates, and semiconductor packaging.
Through advanced CNC machining, manufacturers can create custom AlN components that offer superior thermal performance and high reliability in extreme environments.
Aluminum Nitride Material Properties
Material Performance Comparison Table
Material | Thermal Conductivity (W/m·K) | Hardness (HV) | Density (g/cm³) | Flexural Strength (MPa) | Electrical Resistivity (Ω·cm) | Typical Applications | Advantages |
|---|---|---|---|---|---|---|---|
170-200 | 1800-2200 HV | 3.26 | 300-350 MPa | 10¹⁴-10¹⁶ | Heat sinks, semiconductor substrates, electronic components | Superior thermal conductivity, electrical insulation, high strength | |
30-40 | 1200-1600 HV | 3.1 | 900-1000 MPa | Insulating | Aerospace, automotive, industrial applications | High fracture toughness, high strength, thermal stability | |
25-30 | 1700-2100 HV | 3.9 | 350-400 MPa | 10⁹-10¹⁶ | Insulators, wear-resistant parts, high-voltage applications | Excellent hardness, high wear resistance |
Aluminum Nitride Selection Criteria
When selecting aluminum nitride (AlN) for CNC machining, its superior thermal conductivity (up to 200 W/m·K), high hardness (up to 2200 HV), and electrical insulating properties are key factors that make it ideal for thermal management applications:
Aluminum Nitride (AlN) excels in high-performance applications requiring efficient heat dissipation and electrical insulation. It is typically used in heat sinks, semiconductors, and power electronics.
Silicon Nitride (Si₃N₄), though offering high fracture toughness, is better suited for mechanical components that need high strength and thermal stability rather than thermal management.
Alumina (Al₂O₃), while offering excellent hardness, is more suited for electrical insulators and wear-resistant applications, but it lacks the thermal conductivity of AlN.
CNC Machining Techniques for Aluminum Nitride
CNC Machining Process Comparison
CNC Machining Technology | Dimensional Accuracy (mm) | Surface Roughness (Ra µm) | Typical Applications | Key Advantages |
|---|---|---|---|---|
±0.01 | 0.4-0.8 | Complex thermal components, custom heat sinks | High precision, ability to handle intricate shapes | |
±0.005 | 0.05-0.2 | Sealing surfaces, heat exchanger components | Ultra-smooth finishes, tight tolerances | |
±0.01 | 0.8-1.2 | Mounting holes for electronic components | High accuracy, efficient production of through-holes | |
±0.005-0.01 | 0.2-0.6 | Intricate thermal parts, semiconductor substrates | Precision, flexibility, complex part production |
CNC Process Selection Strategy
The choice of CNC machining technique is essential for producing high-performance aluminum nitride components:
CNC Milling allows the production of intricate parts, such as heat sinks and other complex geometries, with precise dimensional accuracy and a smooth finish.
CNC Grinding is ideal for achieving ultra-smooth surfaces (Ra ≤0.2 µm), essential for heat exchanger components and sealing surfaces.
CNC Drilling is key for accurately mounting holes and fluid channels in AlN components used in electronic and power devices.
Multi-axis CNC Machining provides high flexibility for machining complex geometries with multiple angles, significantly improving accuracy and reducing manufacturing time for intricate AlN parts.
Surface Treatments for CNC Aluminum Nitride Components
Surface Treatment Comparison
Treatment Method | Hardness (HV) | Corrosion Resistance | Max Operating Temp (°C) | Typical Applications | Key Features |
|---|---|---|---|---|---|
1800-2200 HV | Very Good | 900°C | Wear-resistant tooling, high-stress components | Enhanced hardness, wear resistance | |
2000-2500 HV | Excellent | 1300°C | High-temperature engine parts, aerospace components | Superior thermal insulation, extended part life | |
1900-2100 HV | Excellent | 1000°C | Precision sealing, electronic components | Ultra-smooth surface, improved corrosion resistance | |
2200-2500 HV | High | 1000°C | Wear-resistant seals, engine components | Enhanced wear and thermal resistance, extended service life |
Surface Treatment Selection Strategy
The right surface treatment is crucial for enhancing the durability and performance of aluminum nitride components:
PVD Coating enhances the hardness (up to 2200 HV) and wear resistance of aluminum nitride parts, making it suitable for high-stress, high-friction applications such as tooling and seals.
Thermal Barrier Coating (TBC) provides outstanding thermal protection (up to 1300°C), ideal for components exposed to extreme temperatures like aerospace and power generation parts.
Electropolishing offers exceptional surface smoothness and improves AlN parts' corrosion resistance in precision sealing and electronic components.
Ceramic Coating significantly boosts wear resistance (up to 2500 HV) and thermal stability, making it perfect for high-performance seals and components exposed to high temperatures and mechanical wear.
Typical Prototyping Methods
CNC Machining Prototyping: Ensures high precision and fast turnaround for creating aluminum nitride prototypes, with tight tolerances down to ±0.01 mm.
Ceramic 3D Printing: Rapid prototyping for complex aluminum nitride parts, with layer thickness as low as 25 µm, suitable for intricate thermal components.
Powder Bed Fusion: High-precision prototyping with excellent repeatability, perfect for producing detailed aluminum nitride parts with complex geometries.
Quality Assurance for Aluminum Nitride CNC Machined Parts
To ensure optimal performance, quality assurance measures are essential for aluminum nitride CNC machined parts:
CMM Inspection: Dimensional accuracy verified within ±0.01 mm using Coordinate Measuring Machines to ensure precise tolerances.
Surface Finish Analysis: Profilometer tests to confirm surface roughness (Ra ≤0.5 µm), ensuring smooth surfaces for heat dissipation.
Mechanical Property Testing: To confirm the material's capability under stress, hardness, flexural strength, and fracture toughness tests per ASTM C1161 and ASTM C1327 standards.
Non-Destructive Testing (NDT): Ultrasonic testing for detecting micro-cracks or internal inconsistencies.
Thermal Resistance Testing: Assessing the ability of AlN parts to perform at elevated temperatures (up to 1300°C) without failure.
ISO 9001 Compliance: Strict adherence to quality management protocols for product consistency, traceability, and reliability.
Key Industry Applications
High-performance heat sinks
Semiconductor substrates
Electronic components with high thermal dissipation needs
Thermal insulators and spacers in power electronics
