Precision Milling of Titanium Parts for High-Performance Automotive Engines

Available Machining Processes

• CNC Milling: Achieves intricate designs and precision tolerances necessary for engine components.

• CNC Turning: Ideal for symmetrical, cylindrical titanium parts like pistons and valves.

• Electrical Discharge Machining (EDM): Suitable for precision cutting and intricate geometries requiring minimal thermal stress.

Typical Titanium Overview

Titanium alloys widely employed in automotive engine manufacturing include Ti-6Al-4V (Grade 5) and commercially pure titanium (Grade 2). Ti-6Al-4V, containing aluminum and vanadium, delivers exceptional strength, durability, and corrosion resistance, making it ideal for critical engine components subjected to high stress and temperatures. This alloy also features superior fatigue resistance and an impressive strength-to-weight ratio, crucial in high-performance engines that demand weight optimization without sacrificing mechanical integrity.

Commercially pure titanium (Grade 2), with excellent ductility, formability, and corrosion resistance, suits less stressed engine parts requiring extensive shaping or welding. While less strong than Ti-6Al-4V, Grade 2 titanium offers cost-effective benefits and simpler machining processes, providing reliable performance in moderate-stress engine components.

Both alloys provide thermal stability, maintaining structural integrity and dimensional accuracy under the extreme temperatures and pressures encountered within automotive engines. Their inherent corrosion resistance ensures longevity and performance consistency, even in aggressive operating environments.

CNC Machinability of Titanium

Titanium’s machinability poses significant challenges due to its inherent material properties, including poor thermal conductivity, high chemical reactivity, and a work-hard tendency. The heat generated during cutting operations remains concentrated near the cutting edge, accelerating tool wear and potentially leading to deformation of the workpiece. To overcome these challenges, manufacturers employ specialized machining techniques and tooling solutions.

Cutting tools made from advanced materials, such as coated carbide or polycrystalline diamond (PCD), enhance machining performance by reducing friction and improving heat dissipation. CNC machining parameters must be meticulously optimized, including precise cutting speeds (generally ranging between 40–60 m/min), moderate feed rates, and shallow depth cuts. Furthermore, efficient cooling and lubrication systems, such as high-pressure coolant applications, are essential for dissipating heat, preventing deformation, and extending tool life. These strategies ensure precision, surface integrity, and dimensional stability critical to automotive engine components.

Considerations In Titanium Parts CNC Machining

Machining titanium requires careful consideration to achieve precise and reliable results. Key factors include:

• Tool Selection and Geometry: Choosing cutting tools with specific geometries and coatings designed for titanium significantly improves efficiency and reduces tool wear.

• Cutting Parameters: Precise adjustment of cutting speed, feed rate, and depth of cut is essential to minimize heat buildup and maintain dimensional accuracy.

• Cooling and Lubrication: Employing effective cooling systems, like flood coolant or high-pressure coolant systems, mitigates thermal stresses, preventing component deformation.

• Machine Rigidity and Stability: Titanium machining demands rigid, vibration-free CNC machines capable of maintaining precise control under the high forces generated during cutting operations.

• Chip Management: Effective chip evacuation and management systems prevent re-cutting chips, reducing tool wear and maintaining consistent machining quality.

Common Surface Treatments

Surface treatments significantly enhance titanium component performance in automotive engines by improving wear resistance, corrosion resistance, and thermal stability:

• Anodizing: Provides corrosion resistance and creates a durable, non-reactive oxide layer that increases component longevity.

• Plasma Nitriding: Enhances surface hardness and wear resistance, crucial for high-friction engine components.

• PVD Coatings (Physical Vapor Deposition): Offers superior hardness, reduces friction, and provides thermal stability, ideal for critical engine components exposed to extreme operating conditions.

• Shot Peening: Improves fatigue strength by inducing compressive residual stresses in the surface layer, extending the life of high-performance engine parts.

Application in Automotive Engines

Precision-milled titanium components significantly benefit high-performance automotive engines by reducing weight, enhancing durability, and improving thermal performance. Applications include:

• Valves and Valve Springs: Reduced weight improves engine responsiveness and efficiency while ensuring durability under high operating pressures.

• Connecting Rods and Pistons: Enhanced strength-to-weight ratio reduces engine inertia, improving acceleration and fuel efficiency.

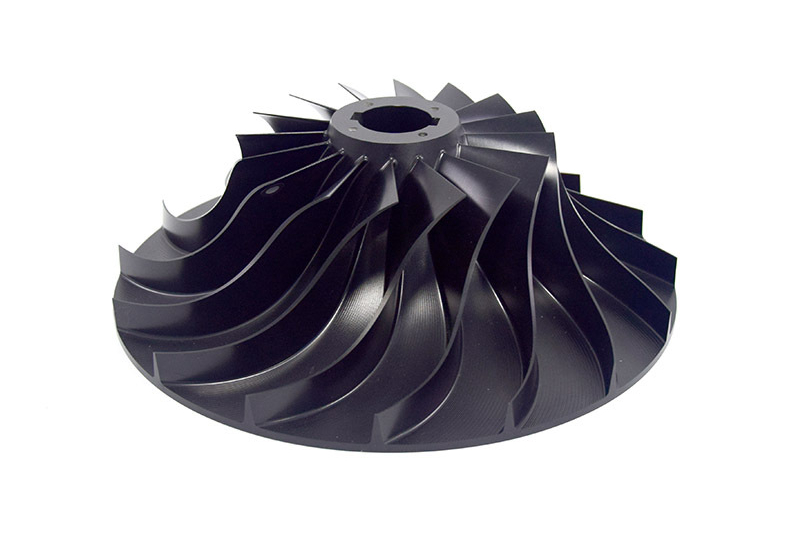

• Turbocharger Components: Exceptional thermal stability and lightweight characteristics boost engine performance by managing heat effectively and improving turbine response.

• Exhaust Systems: High corrosion and temperature resistance enable titanium to sustain performance in aggressive exhaust environments, contributing to improved emissions control and engine efficiency.

Advantages and Limitations

Advantages:

• High Strength-to-Weight Ratio: Optimizes engine performance and fuel efficiency.

• Excellent Corrosion Resistance: Ensures component longevity and reliability.

• Superior Thermal Stability: Maintains dimensional accuracy and mechanical properties under high-temperature operations.

• Enhanced Fatigue Resistance: Improves durability and reduces maintenance frequency in demanding automotive applications.

Limitations:

• High Machining Costs: Requires specialized tooling, cooling, and CNC parameters.

• Complexity in Machining: Necessitates meticulous machining strategies and experienced personnel.

• Limited Heat Dissipation: Challenges related to thermal management increase complexity and tool wear during machining.
