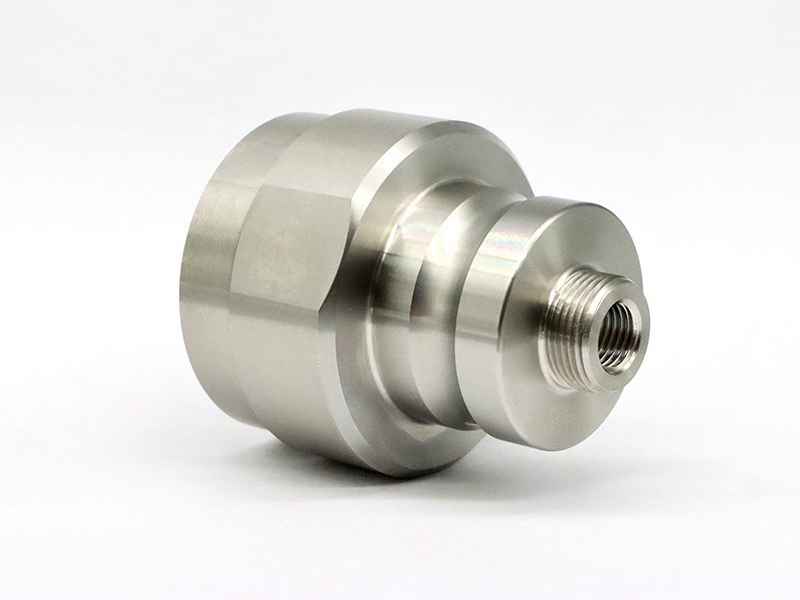

Stainless Steel CNC Machining for Reliable Aerospace Engine Components
Introduction to Stainless Steel CNC Machining for Aerospace Engine Components
Aerospace engine components must meet the highest performance, durability, and reliability standards due to the extreme conditions they face. Stainless steel CNC machining is crucial in manufacturing aerospace engine parts, providing the necessary strength, corrosion resistance, and heat resistance. Stainless steel alloys like 304, 316, and 17-4PH are commonly used in aerospace engine applications because of their ability to withstand high temperatures, mechanical stress, and aggressive environments.
CNC machining of stainless steel ensures precision, accuracy, and the ability to create complex geometries required for components such as turbine blades, compressor rotors, housings, and engine shafts. These parts contribute to the efficiency, reliability, and safety of modern aerospace engines, ensuring optimal performance throughout their operational lifespan.
Material Performance Comparison for Stainless Steel Parts in Aerospace Engines
Material | Tensile Strength (MPa) | Thermal Conductivity (W/m·K) | Machinability | Corrosion Resistance | Typical Applications | Advantages |
|---|---|---|---|---|---|---|
520 | 16.2 | Excellent | Excellent (>1000 hrs ASTM B117) | Engine components, fasteners | High corrosion resistance, good weldability | |
580 | 16.3 | Excellent | Excellent (>1000 hrs ASTM B117) | Marine and aerospace components | Excellent resistance to corrosion, high mechanical strength | |
Stainless Steel SUS17-4PH | 1000 | 20.0 | Moderate | Good (>800 hrs ASTM B117) | Aerospace engine parts, turbine rotors | High strength, excellent fatigue resistance |
860 | 17.0 | Moderate | Excellent (>1000 hrs ASTM B117) | Engine components, bearings | High hardness, wear resistance |
Material Selection Strategy for Stainless Steel Parts in Aerospace Engines
Stainless Steel SUS304 offers a tensile strength of 520 MPa and excellent machinability, making it ideal for applications where ease of fabrication and high corrosion resistance are required. It is commonly used in engine components and fasteners where moderate strength and corrosion resistance are critical for longevity and performance.
Stainless Steel SUS316 provides a tensile strength of 580 MPa and excels in resisting corrosion, especially in aggressive environments such as those encountered in marine and aerospace systems. It is ideal for components exposed to extreme stress and environmental conditions, making it well-suited for aerospace engine parts.
Stainless Steel SUS17-4PH is known for its high tensile strength (1000 MPa) and excellent fatigue resistance, making it suitable for high-performance aerospace engine parts like turbine rotors and compressor blades. Its superior strength and ability to withstand high mechanical stress make it an essential material in aerospace engines.
Stainless Steel SUS440C has a tensile strength of 860 MPa and is particularly valued for its high hardness and wear resistance. This material is often used in engine components such as bearings and shafts, where wear resistance and high hardness are essential for maintaining operational performance in aerospace engines.
CNC Machining Processes for Stainless Steel Parts in Aerospace Engines
CNC Machining Process | Dimensional Accuracy (mm) | Surface Roughness (Ra μm) | Typical Applications | Key Advantages |
|---|---|---|---|---|
±0.005 | 0.2-0.8 | Turbine blades, compressor rotors | Complex geometries, high precision | |
±0.005-0.01 | 0.4-1.2 | Engine shafts, housings | Excellent rotational accuracy | |
±0.01-0.02 | 0.8-1.6 | Mounting holes, ports | Accurate hole placement | |
±0.002-0.005 | 0.1-0.4 | Surface-sensitive components | Superior surface smoothness |
CNC Process Selection Strategy for Stainless Steel Parts
5-Axis CNC Milling is essential for manufacturing complex stainless steel parts such as turbine blades and compressor rotors. This process offers high precision (±0.005 mm) and fine surface finishes (Ra ≤0.8 µm), which are necessary for producing intricate geometries and ensuring the efficiency of aerospace engines.
CNC Turning ensures that cylindrical parts such as engine shafts and housings are produced with excellent rotational accuracy (±0.005 mm). This process guarantees smooth and uniform surfaces, which are critical for maintaining the functionality and durability of engine components.
CNC Drilling provides precise hole placement (±0.01 mm), ensuring that mounting holes and ports are accurately positioned in aerospace engine parts. This process ensures proper alignment during assembly, reducing the risk of misalignment or failure during operation.
CNC Grinding achieves ultra-fine surface finishes (Ra ≤ 0.4 µm) for stainless steel parts, which is crucial for components that require smooth surfaces, such as sealing components and bearing surfaces, ensuring the longevity and optimal performance of aerospace engines.
Surface Treatment for Stainless Steel Parts in Aerospace Engines
Treatment Method | Surface Roughness (Ra μm) | Corrosion Resistance | Hardness (HV) | Applications |
|---|---|---|---|---|
0.1-0.4 | Superior (>1000 hrs ASTM B117) | N/A | High-performance engine parts | |
0.2-0.8 | Excellent (>1000 hrs ASTM B117) | N/A | Turbine blades, engine housings | |
0.2-0.6 | Excellent (>800 hrs ASTM B117) | 1000-1200 | Aerospace engine components | |
0.2-0.6 | Superior (>1000 hrs ASTM B117) | 800-1000 | High-performance parts, turbine blades |
Typical Prototyping Methods
CNC Machining Prototyping: High-precision prototypes (±0.005 mm) for functional testing of stainless steel aerospace engine components.
Rapid Molding Prototyping: Fast and accurate prototyping for engine parts like turbine rotors and housings.
3D Printing Prototyping: Quick-turnaround prototyping (±0.1 mm accuracy) for initial design validation of stainless steel parts.
Quality Inspection Procedures
CMM Inspection (ISO 10360-2): Dimensional verification of stainless steel parts with tight tolerances.
Surface Roughness Test (ISO 4287): Ensures surface quality for precision components in aerospace engines.
Salt Spray Test (ASTM B117): Verifies corrosion resistance performance of stainless steel parts in harsh environments.
Visual Inspection (ISO 2859-1, AQL 1.0): Confirms aesthetic and functional quality of stainless steel components.
ISO 9001:2015 Documentation: Ensures traceability, consistency, and compliance with industry standards.
Industry Applications
Aerospace: Turbine blades, compressor rotors, engine housings.
Automotive: Exhaust systems, engine components, structural parts.
Oil and Gas: High-performance valves, pressure vessels, turbines.
