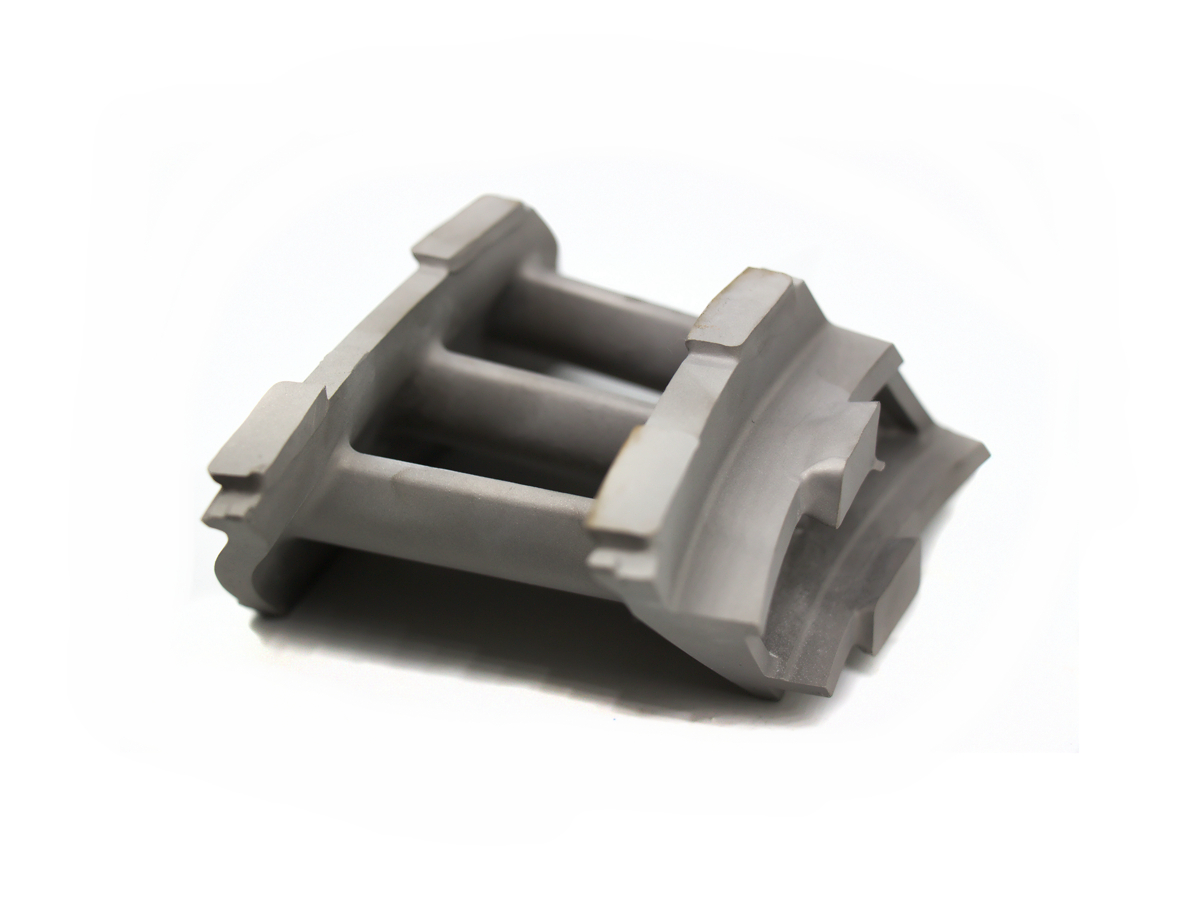

Superalloy Rapid Molding: Precision Parts for High-Performance Aerospace and Engineering
Introduction
Superalloy rapid molding is a cutting-edge prototyping and production technique tailored specifically for creating precision parts used in high-performance aerospace and demanding engineering applications. Leveraging advanced manufacturing technologies such as rapid molding prototyping, engineers can efficiently fabricate complex, durable components from high-temperature superalloys like Inconel, Hastelloy, and Nimonic.
Manufacturers achieve precise dimensional accuracy (±0.05 mm), rapid turnaround, and outstanding performance in extreme conditions through specialized superalloy molding processes, significantly accelerating aerospace development cycles.
Superalloy Material Properties
Material Performance Comparison Table
Superalloy Material | Tensile Strength (MPa) | Yield Strength (MPa) | Density (g/cm³) | Max Temp (°C) | Applications | Advantages |
|---|---|---|---|---|---|---|
1350 | 1100 | 8.19 | 700 | Turbine blades, aerospace fasteners | High-temperature strength, excellent corrosion resistance | |
850-900 | 400-450 | 8.89 | 800 | Chemical processing equipment, exhaust systems | Exceptional chemical resistance, high durability | |
1200-1300 | 750-900 | 8.18 | 750 | Aerospace turbines, structural components | Excellent creep resistance, thermal stability | |
1300-1400 | 900-950 | 8.25 | 980 | Jet engines, missile components | Outstanding strength-to-weight ratio, oxidation resistance |
Material Selection Strategy
Choosing suitable superalloys for rapid molding requires careful evaluation of mechanical strength, thermal stability, and corrosion resistance under harsh operating conditions:
Inconel 718: Ideal for aerospace components requiring high tensile strength (1350 MPa) at elevated temperatures up to 700°C, widely used in turbine blades and fasteners.
Hastelloy C-276: Optimal for applications demanding exceptional chemical resistance and durability at high temperatures (up to 800°C), frequently selected for aerospace exhaust systems and chemical processing prototypes.
Nimonic 90: Excellent for parts needing outstanding creep resistance and stable mechanical properties at temperatures up to 750°C, suitable for aerospace turbines and critical structural components.
Rene 41: Best for extreme-temperature applications requiring superior oxidation resistance and high strength (up to 1400 MPa tensile), prominently utilized in jet engines and missile technologies.
Rapid Molding Processes for Superalloy Prototypes
Rapid Molding Process Comparison
Rapid Molding Process | Accuracy (mm) | Surface Finish (Ra µm) | Typical Uses | Advantages |
|---|---|---|---|---|
±0.05 | 1-6 | Turbine components, precision aerospace parts | High dimensional accuracy, fine surface quality | |
±0.3 | 10-25 | Large structural components, engine casings | Cost-effective, flexible for large parts | |
±0.1 | 5-15 | Repeated-use aerospace components, engineering prototypes | Good surface finish, economical for medium batches |
Rapid Molding Process Selection Strategy
Selecting the appropriate rapid molding process involves considering prototype accuracy, complexity, and production volume:
Rapid Investment Casting (ASTM F75): Ideal for precise aerospace components needing high dimensional accuracy (±0.05 mm) and superior surface finishes (Ra 1-6 µm), critical for turbine blades and intricate engine parts.
Sand Casting (ASTM A781): Suitable for large aerospace structural parts, providing versatility for complex shapes and large dimensions economically, despite moderate accuracy (±0.3 mm).
Permanent Mold Casting (ASTM B108): Recommended for medium-volume production of aerospace and engineering components requiring good accuracy (±0.1 mm), consistent repeatability, and cost efficiency.
Surface Treatments for Superalloy Components
Surface Treatment Comparison
Treatment Method | Surface Roughness (Ra µm) | Corrosion Resistance | Max Temp (°C) | Applications | Key Features |
|---|---|---|---|---|---|
1.0-5.0 | Superior (ISO 17834) | 1200 | Turbine blades, combustion chambers | Excellent thermal insulation, improved durability | |
≤0.5 | Excellent (ASTM B912) | 400 | Aerospace fasteners, precision parts | Enhanced smoothness, reduced surface stress | |
0.5-1.0 | Excellent (ASTM A967) | 350 | Chemical-resistant components, aerospace housings | Improved corrosion resistance, clean surfaces | |
1.6-3.2 | Good (SAE AMS2430) | Material limit | Structural aerospace parts, shafts | Increased fatigue strength, surface hardness |
Surface Treatment Selection Strategy
Applying appropriate surface treatments significantly enhances the durability, performance, and service life of superalloy components:
Thermal Barrier Coatings (TBC): Essential for aerospace parts exposed to extreme temperatures (up to 1200°C), providing excellent thermal protection and extending component life.
Electropolishing: Optimal for precision parts requiring smooth surface finishes (Ra ≤0.5 µm), improving corrosion resistance and reducing stress concentrations in critical aerospace components.
Passivation: Recommended for chemical-resistant aerospace housings and components, ensuring superior corrosion protection and compliance with industry standards (ASTM A967).
Shot Peening: Ideal for structural prototypes requiring enhanced fatigue resistance and improved durability, commonly employed in shafts and critical aerospace assemblies.
Typical Prototyping Methods
Rapid Molding Prototyping: Efficiently produces precise aerospace prototypes (±0.05 mm accuracy), suitable for rigorous validation testing.
Superalloy CNC Machining: Offers tight-tolerance (±0.005 mm) finishing of molded components to meet precise aerospace engineering standards.
Superalloy 3D Printing: Rapidly creates complex geometry prototypes (±0.1 mm accuracy), ideal for early-stage functional testing.
Quality Assurance Procedures
Dimensional Inspection: Precision validation using Coordinate Measuring Machines (CMM) with accuracy up to ±0.002 mm (ISO 10360-2 standard).
Metallurgical Analysis: Microstructure and grain size examinations per ASTM E112 and ASTM E407 for structural integrity.
Mechanical Testing: Tensile strength and yield tests complying with ASTM E8; fatigue testing following ASTM E466, ensuring long-term reliability under cyclic loading.
Surface Roughness Verification: Evaluated using profilometers meeting ISO 4287 standards, ensuring Ra values meet specified aerospace requirements.
Corrosion Resistance Assessment: Salt spray testing (ASTM B117) was conducted for up to 1000 hours to validate protective surface treatments.
Non-Destructive Testing (NDT): Comprehensive inspection, including ultrasonic testing (ASTM E2375) and radiographic testing (ASTM E1742) to ensure defect-free molded components.
Quality Management System: Full adherence to ISO 9001 and aerospace-specific AS9100 certifications for controlled, repeatable manufacturing processes.
Key Industry Applications
Aerospace turbine engines
Jet propulsion components
High-performance structural aerospace parts
Missile and defense systems
