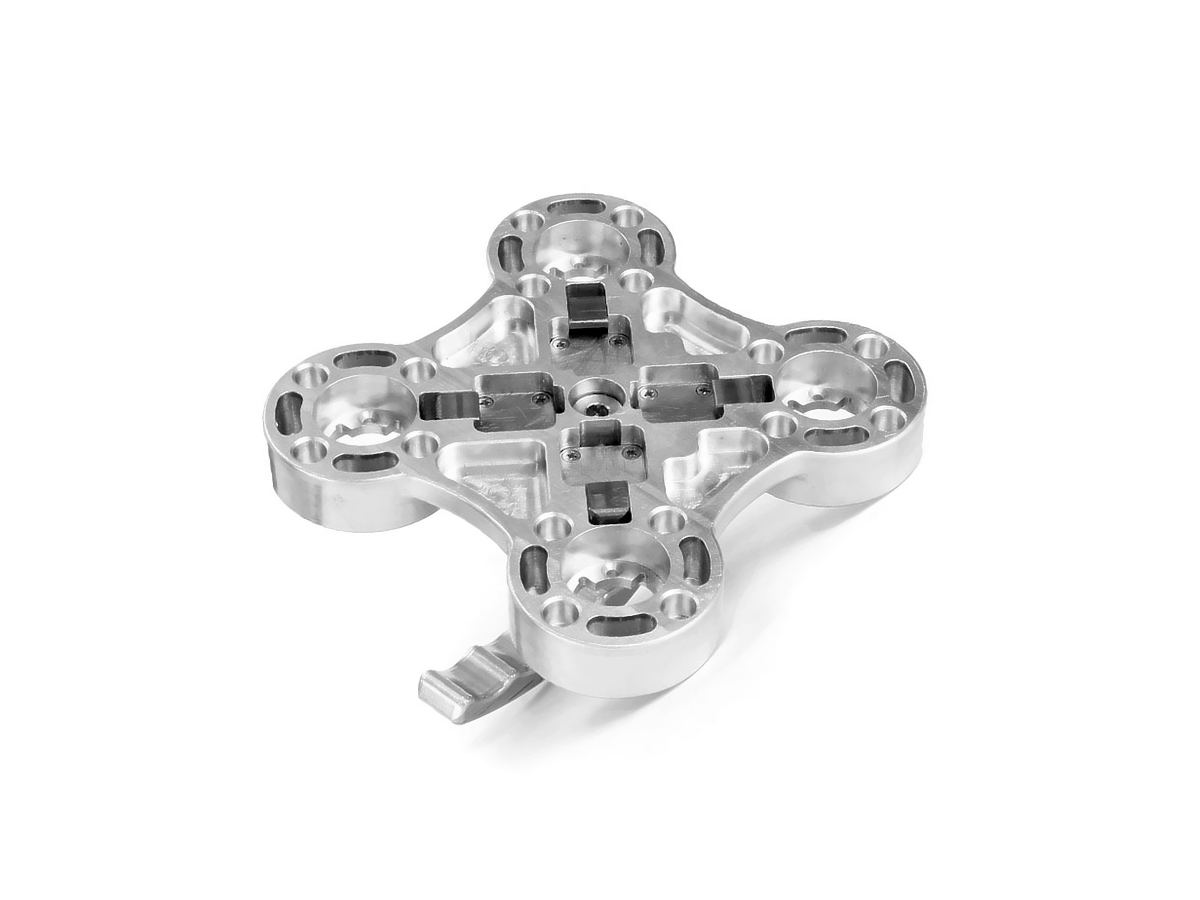

Titanium Mass CNC Machining: High-Precision Parts for Medical Device Applications
Introduction
Titanium mass CNC machining offers a reliable and efficient solution for producing high-precision, durable components for medical device applications. Titanium alloys, such as Ti-6Al-4V and Ti-3Al-2.5V, are favored in the medical industry due to their excellent strength-to-weight ratio, biocompatibility, and corrosion resistance. These properties make titanium ideal for medical devices like orthopedic implants, surgical instruments, and prosthetics. Through Titanium CNC Machining, manufacturers can produce precise, high-quality medical components that meet stringent regulatory requirements and are designed to withstand long-term use in the human body.
Mass CNC machining for titanium allows manufacturers to produce large quantities of critical medical device components with consistent quality and fast turnaround times. Mass CNC Machining ensures that medical device manufacturers can meet high demand while maintaining tight tolerances, providing high-performance parts with minimal waste and cost.
Titanium Material Properties
Material Performance Comparison Table
Titanium Alloy | Tensile Strength (MPa) | Yield Strength (MPa) | Hardness (HRC) | Density (g/cm³) | Applications | Advantages |
|---|---|---|---|---|---|---|
900–1100 | 800–1000 | 34–42 | 4.43 | Orthopedic implants, dental implants, surgical instruments | Excellent strength, biocompatibility, corrosion resistance | |
690–830 | 550–800 | 35–45 | 4.43 | Medical devices, prosthetics | High strength-to-weight ratio, good machinability | |
950–1100 | 850–1000 | 36–40 | 4.43 | Surgical implants, orthopedic devices | Excellent fatigue resistance, high tensile strength | |
850–1000 | 700–950 | 35–40 | 4.43 | Prosthetics, medical components | High corrosion resistance, good for high-strength applications |
Selecting the Right Titanium Alloy for Medical Device CNC Machining
Selecting the appropriate titanium alloy for CNC machining ensures that medical devices meet performance, safety, and durability standards. Factors such as strength, corrosion resistance, and biocompatibility are critical in the medical field:
Ti-6Al-4V: The most commonly used titanium alloy for medical devices, especially orthopedic implants and surgical instruments, due to its excellent strength, biocompatibility, and resistance to corrosion.
Ti-3Al-2.5V: Ideal for medical devices and prosthetics where a good balance of strength and machinability is required, offering a high strength-to-weight ratio and excellent durability.
Ti-6Al-2Sn-4Zr-6Mo: Suitable for high-performance surgical implants and orthopedic devices due to its high tensile strength and resistance to fatigue.
Ti-5Al-2.5Sn: Recommended for prosthetics and medical components that require high corrosion resistance and strength, ideal for use in applications exposed to harsh body environments.
CNC Machining Processes for Titanium Parts
CNC Process Comparison Table
CNC Machining Process | Accuracy (mm) | Surface Finish (Ra µm) | Typical Uses | Advantages |
|---|---|---|---|---|
±0.005 | 0.4–1.2 | Orthopedic implants, precision surgical tools | High precision for complex geometries | |
±0.005 | 0.4–1.0 | Rotational components, shafts | Excellent for cylindrical parts, high consistency | |
±0.01 | 0.8–3.2 | Holes for medical devices, threaded components | Fast hole-making, high accuracy | |
±0.003 | 0.2–1.0 | Complex orthopedic components, surgical instruments | High precision for intricate, multi-directional geometries |
CNC Process Selection Strategy
The machining process selected for titanium medical components must ensure high precision, tight tolerances, and the ability to handle the specific material properties of titanium:
CNC Milling: Ideal for producing complex shapes, like orthopedic implants and precision surgical tools, with high precision (±0.005 mm) and excellent versatility for intricate designs.
CNC Turning: Best suited for cylindrical parts like shafts and rods used in prosthetics and medical devices, ensuring high consistency and accuracy (±0.005 mm).
CNC Drilling: Essential for creating precise holes and threads for medical fasteners and other components, with high-speed capabilities and accuracy (±0.01 mm).
Multi-Axis Machining: Perfect for intricate orthopedic parts and surgical instruments, offering superior precision (±0.003 mm) and allowing complex geometries with multi-directional features.
Surface Treatments for Titanium Parts
Surface Treatment Comparison Table
Treatment Method | Surface Roughness (Ra µm) | Corrosion Resistance | Max Temp (°C) | Applications | Key Features |
|---|---|---|---|---|---|
≤0.8 | Excellent | 400 | Orthopedic implants, surgical instruments | Increased corrosion resistance, improved surface hardness | |
≤0.4 | Excellent | 250 | Medical devices, surgical instruments | Smooth surface, reduced friction, biocompatibility | |
≤1.0 | Excellent | 450–600 | Dental implants, prosthetics | Enhanced wear resistance, high hardness | |
≤1.0 | Excellent | 250 | Implants, medical fasteners | Improved corrosion resistance, increased longevity |
Surface Treatment Selection Strategy
Selecting the correct surface treatment is essential for ensuring the durability, biocompatibility, and performance of titanium medical components:
Anodizing: Ideal for orthopedic implants and surgical instruments, providing enhanced corrosion resistance and surface hardness, improving the longevity of the implants in the body.
Electropolishing: Perfect for medical devices and surgical instruments where smooth, biocompatible surfaces are necessary. It reduces friction and improves the device's performance within the human body.
PVD Coating: Suitable for dental implants and prosthetics, offering superior wear resistance and high hardness, ensuring long-term performance in demanding medical applications.
Passivation: Recommended for implants and medical fasteners to improve their corrosion resistance and ensure reliability in environments with bodily fluids.
Typical Titanium Rapid Prototyping Methods
Effective prototyping methods for titanium medical components include:
CNC Machining Prototyping: Provides fast, high-precision production of titanium parts for medical devices.
Titanium 3D Printing: Ideal for rapid prototyping of complex titanium parts with quick iterations and design changes.
Rapid Molding Prototyping: Cost-effective for producing moderate-complexity titanium parts for testing before scaling up to high-volume production.
Quality Assurance Procedures
Dimensional Inspection: ±0.002 mm accuracy (ISO 10360-2).
Material Verification: ASTM B348, ASTM F136 standards for titanium alloys.
Surface Finish Assessment: ISO 4287.
Mechanical Testing: ASTM E8 for tensile and yield strength.
Visual Inspection: ISO 2768 standards.
ISO 9001 Quality Management System: Ensuring consistent quality and performance.
Key Applications
Orthopedic Implants: Hip implants, knee replacements, bone screws.
Surgical Instruments: Scalpel handles, surgical scissors, clamps.
Prosthetics: Custom prosthetic limbs, joint replacements.
Dental Implants: Titanium dental implants, abutments.
