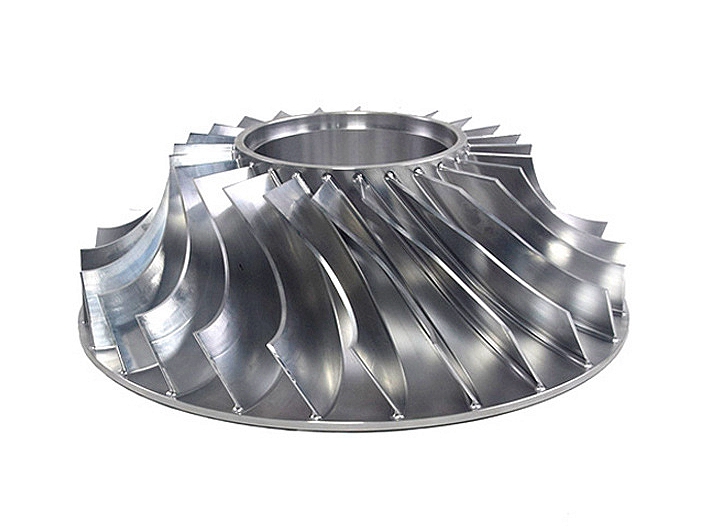

Titanium Parts Machined with CNC for Aerospace Turbines
Introduction to CNC Machined Titanium Parts for Aerospace Turbines
Titanium alloys are a cornerstone of aerospace engineering due to their remarkable combination of strength, lightness, and resistance to extreme temperatures and corrosion. CNC machining of titanium parts is essential for manufacturing high-performance turbine components that must endure the rigorous demands of flight, including high-pressure and high-temperature environments. Titanium’s high strength-to-weight ratio and resistance to heat make it the preferred material for critical aerospace components such as turbine blades, compressor disks, and engine casings.
CNC machining of titanium offers precise, customized parts that meet the strictest tolerances and performance standards required in aerospace turbine applications. These parts ensure the efficiency, reliability, and safety of modern turbine engines, which are vital for the functionality of aircraft from commercial airliners to military jets.
Material Performance Comparison for Titanium Parts in Aerospace Turbines
Material | Tensile Strength (MPa) | Thermal Conductivity (W/m·K) | Machinability | Corrosion Resistance | Typical Applications | Advantages |
|---|---|---|---|---|---|---|
900-1200 | 6.7 | Moderate | Excellent | Turbine blades, engine casings | High strength, excellent fatigue resistance | |
880-1100 | 6.7 | Moderate | Excellent | Compressor rotors, aerospace components | Superior toughness, low oxygen content | |
550-750 | 6.5 | Good | Good | Turbine components, structural parts | Excellent corrosion resistance, good weldability | |
830-1100 | 6.0 | Good | Excellent | Aerospace turbines, engine components | Excellent fatigue resistance, high-temperature strength |
Material Selection Strategy for Titanium Parts in Aerospace Turbines
Titanium 6Al-4V (Grade 5) is one of the most widely used titanium alloys due to its superior strength-to-weight ratio and fatigue resistance, making it an ideal choice for high-performance aerospace turbine components such as turbine blades and engine casings. Its tensile strength (900-1200 MPa) and excellent corrosion resistance are critical for components exposed to extreme pressure and temperatures in turbine applications.
Titanium 6Al-4V ELI (Grade 23) is a low-oxygen variant of Grade 5 titanium, offering improved toughness and superior fatigue resistance. With a tensile strength of 880-1100 MPa, it is commonly used to manufacture compressor rotors and other critical turbine components that require exceptional strength and reliability under cyclic loading conditions.
Titanium 3Al-2.5V (Grade 12) is selected for its excellent corrosion resistance and weldability. It has a tensile strength of 550-750 MPa. It is often used in less load-bearing components of aerospace turbines, such as structural parts and heat exchangers, where high corrosion resistance and good mechanical properties are required.
Titanium 5Al-2.5Sn (Grade 6) is chosen for its excellent fatigue resistance and high-temperature strength, with a tensile strength of 830-1100 MPa. It is often used in aerospace turbines, where parts must endure repetitive mechanical loads and high thermal stresses while maintaining optimal performance and reliability.
CNC Machining Processes for Titanium Parts in Aerospace Turbines
CNC Machining Process | Dimensional Accuracy (mm) | Surface Roughness (Ra μm) | Typical Applications | Key Advantages |
|---|---|---|---|---|
±0.005 | 0.2-0.8 | Turbine blades, compressor rotors | Complex geometries, high precision | |
±0.005-0.01 | 0.4-1.2 | Shafts, engine casings | Excellent rotational accuracy | |
±0.01-0.02 | 0.8-1.6 | Mounting holes, attachment points | Accurate hole placement | |
±0.002-0.005 | 0.1-0.4 | Surface-sensitive turbine components | Superior surface smoothness |
CNC Process Selection Strategy for Titanium Parts
5-Axis CNC Milling is ideal for producing complex titanium parts such as turbine blades and compressor rotors. The high precision (±0.005 mm) and fine surface finishes (Ra ≤0.8 µm) make this process essential for aerospace turbine components that require intricate geometries and tight tolerances.
CNC Turning ensures the accurate production of cylindrical titanium parts such as shafts and engine casings, offering rotational accuracy (±0.005 mm) and excellent surface quality. This process is essential for ensuring the functionality of high-performance turbine components that operate under extreme mechanical stress.
CNC Drilling is crucial for producing precise hole placements (±0.01 mm) in components like turbine blades and engine parts. Accurate hole positioning ensures that parts fit correctly during assembly, enhancing the overall reliability and safety of the aerospace turbine.
CNC Grinding is used to achieve superior surface finishes (Ra ≤ 0.4 µm) on titanium parts, which is especially important for turbine components with smooth surfaces to reduce wear and friction during high-speed operations.
Surface Treatment for Titanium Parts in Aerospace Turbines
Treatment Method | Surface Roughness (Ra μm) | Corrosion Resistance | Hardness (HV) | Applications |
|---|---|---|---|---|
0.4-1.0 | Excellent (>1000 hrs ASTM B117) | 400-600 | Aerospace turbine parts | |
0.2-0.6 | Excellent (>800 hrs ASTM B117) | 1000-1200 | Titanium turbine blades, engine components | |
0.1-0.4 | Superior (>1000 hrs ASTM B117) | N/A | High-performance aerospace components | |
0.2-0.8 | Excellent (>1000 hrs ASTM B117) | N/A | Heat-treated titanium turbine parts |
Typical Prototyping Methods
CNC Machining Prototyping: High-precision prototypes (±0.005 mm) for testing and validating titanium turbine parts.
Rapid Molding Prototyping: Fast and accurate prototyping for turbine components like blades and rotor parts, allowing for quick design iterations.
3D Printing Prototyping: Cost-effective prototyping (±0.1 mm accuracy) for the initial design validation of titanium aerospace components.
Quality Inspection Procedures
CMM Inspection (ISO 10360-2): Dimensional verification of titanium turbine parts with tight tolerances.
Surface Roughness Test (ISO 4287): Ensures surface quality for precision components in aerospace turbines.
Salt Spray Test (ASTM B117): Verifies corrosion resistance performance of titanium parts in harsh aerospace environments.
Visual Inspection (ISO 2859-1, AQL 1.0): Confirms aesthetic and functional quality of titanium components.
ISO 9001:2015 Documentation: Ensures traceability, consistency, and compliance with aerospace industry standards.
Industry Applications
Aerospace: Titanium turbine blades, compressor rotors, engine casings.
Defense: High-performance turbine components, structural aerospace parts.
Energy: Turbine blades, energy generation components.
FAQs:
Why is titanium used in aerospace turbines?
How does CNC machining improve the precision of titanium turbine parts?
Which titanium alloys are best for turbine applications in aerospace?
What surface treatments enhance the durability of titanium turbine blades?
What prototyping methods are best for titanium parts used in aerospace turbines?
